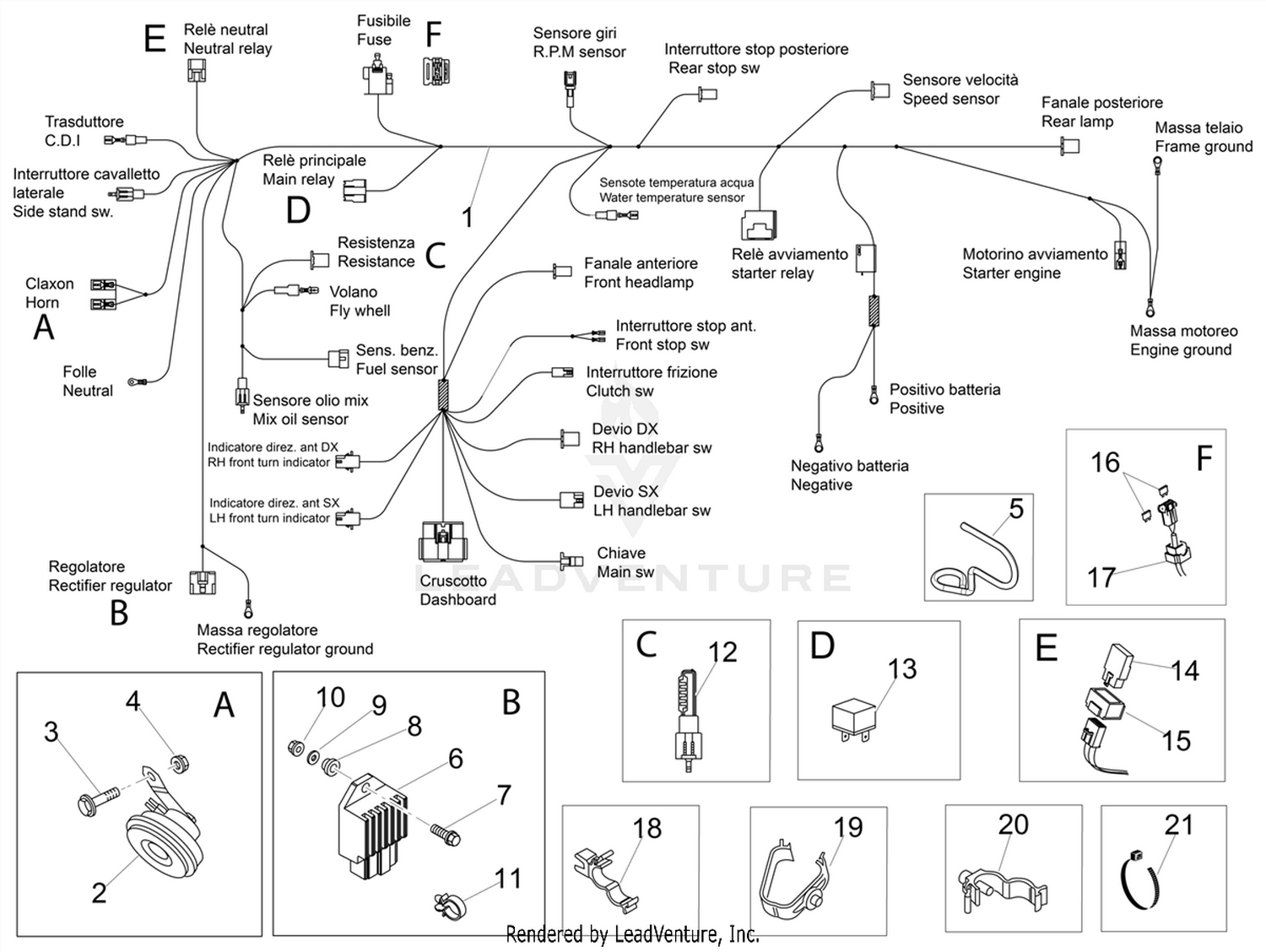

Front electrical system
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 2D000436 | Main wiring harness Price: $197.81 |
| 2 | AP8212611 | Horn Price: $7.04 |
| 3 | AP8152285 | Screw w/ flange Price: $0.37 |
| 4 | AP8152300 | Self-locking nut Price: $0.25 |
| 5 | AP8121475 | Fairlead Price: $3.20 |
| 6 | 641788 | Voltage regulator Price: $82.50 |
| 7 | AP8152279 | Screw w/ flange Price: $0.37 |
| 8 | AP8121075 | T bush Price: $2.70 |
| 9 | AP8150179 | Washer Price: $0.06 |
| 10 | AP8152299 | Self-locking nut Price: $0.25 |
| 11 | 231590 | Elastic spring Price: $0.18 |
| 12 | 899436 | Resistor Module Price: $1.34 |
| 13 | GU29732550 | Relay Price: $31.21 |
| 14 | AP8224462 | Relay Price: $10.34 |
| 15 | AP8220546 | Relay rubber Price: $3.42 |
| 16 | CM225707 | Fuse Price: $5.36 |
| 17 | AP8220342 | Rubber fuse box Price: $3.85 |
| 18 | AP9100765 | Spring Price: $3.98 |
| 19 | AP8120582 | Cable-guide Price: $3.98 |
| 20 | AP8134186 | Cable-guide Price: $4.18 |
