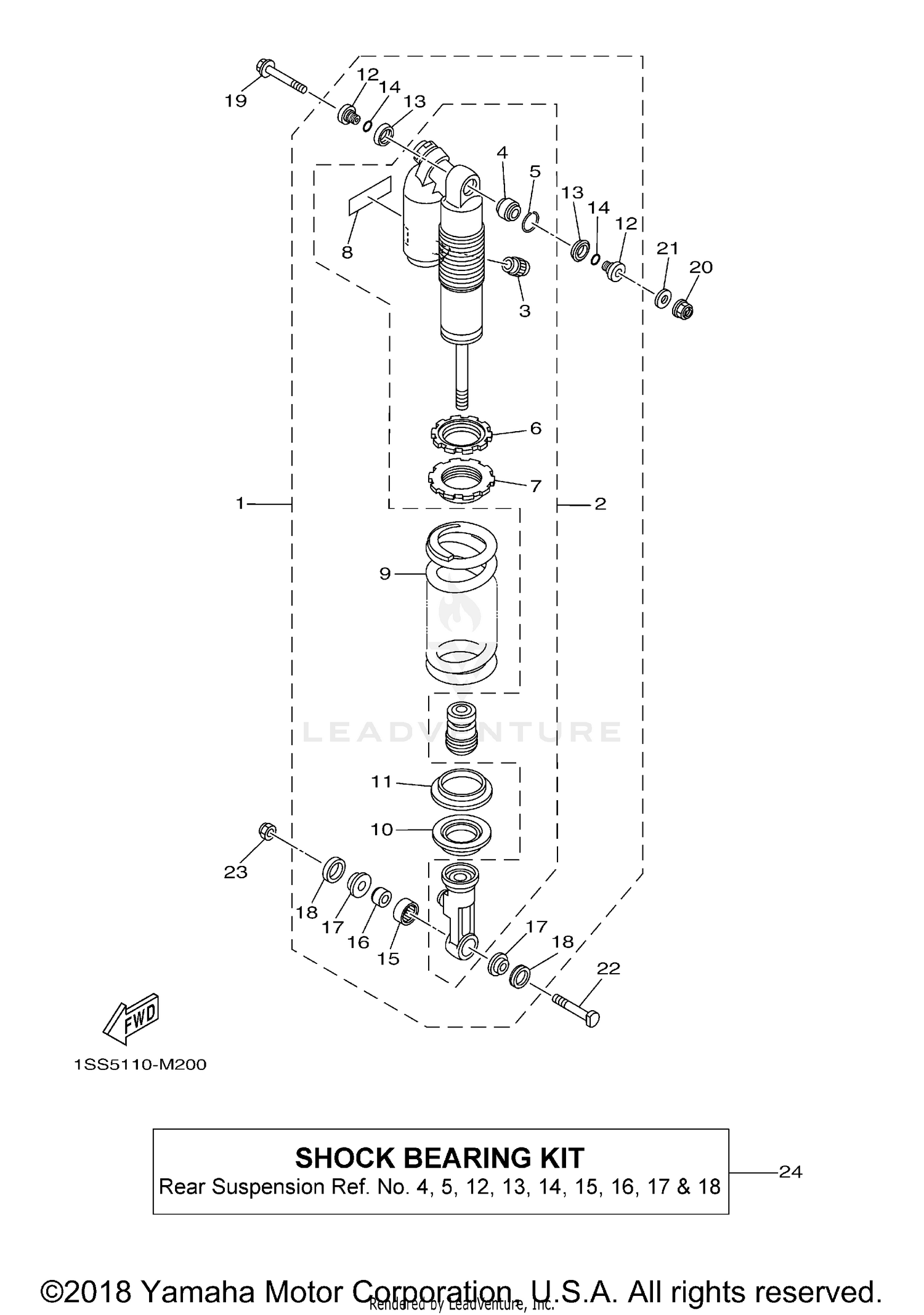

| Ref | Part Number | Description |
|---|
| 1 |
BF1-22200-00-00 |
SHOCK ABSORBER ASSY, REAR Price: $1,000.99 |
| 2 |
BF1-22201-00-00 |
DAMPER SUB ASSY Price: $658.99 |
| 3 |
509-23184-L0-00 |
CAP, AIR VALVE Price: $7.49 |
| 6 |
3SP-22234-00-00 |
GUIDE, SPRING 3 Price: $47.99 |
| 7 |
1C3-22213-L0-00 |
SEAT, SPRING UPPER Price: $47.99 |
| 8 |
4AA-22259-80-00 |
LABEL, WARNING Price: $14.49 |
| 9 |
5UN-22212-30-00 |
SPRING (K=48N/MM) Price: $295.99 |
| 10 |
1C3-22214-50-00 |
GUIDE, SPRING 1 Price: $42.99 |
| 11 |
5MV-22224-00-00 |
GUIDE, SPRING 2 Price: $26.99 |
| 19 |
5XE-22242-01-00 |
BOLT 2 Price: $7.49 |
| 20 |
95602-10200-00 |
NUT, S/L FLANGE Price: $2.70 |
| 21 |
92990-10200-00 |
WASHER, PLAIN This part replaces 92902-10200-00. Price: $3.72 |
| 22 |
5NY-22241-00-00 |
BOLT 1 Price: $12.99 |
| 23 |
90185-10012-00 |
NUT, SELF-LOCKING Price: $3.60 |
