Parts Catalog

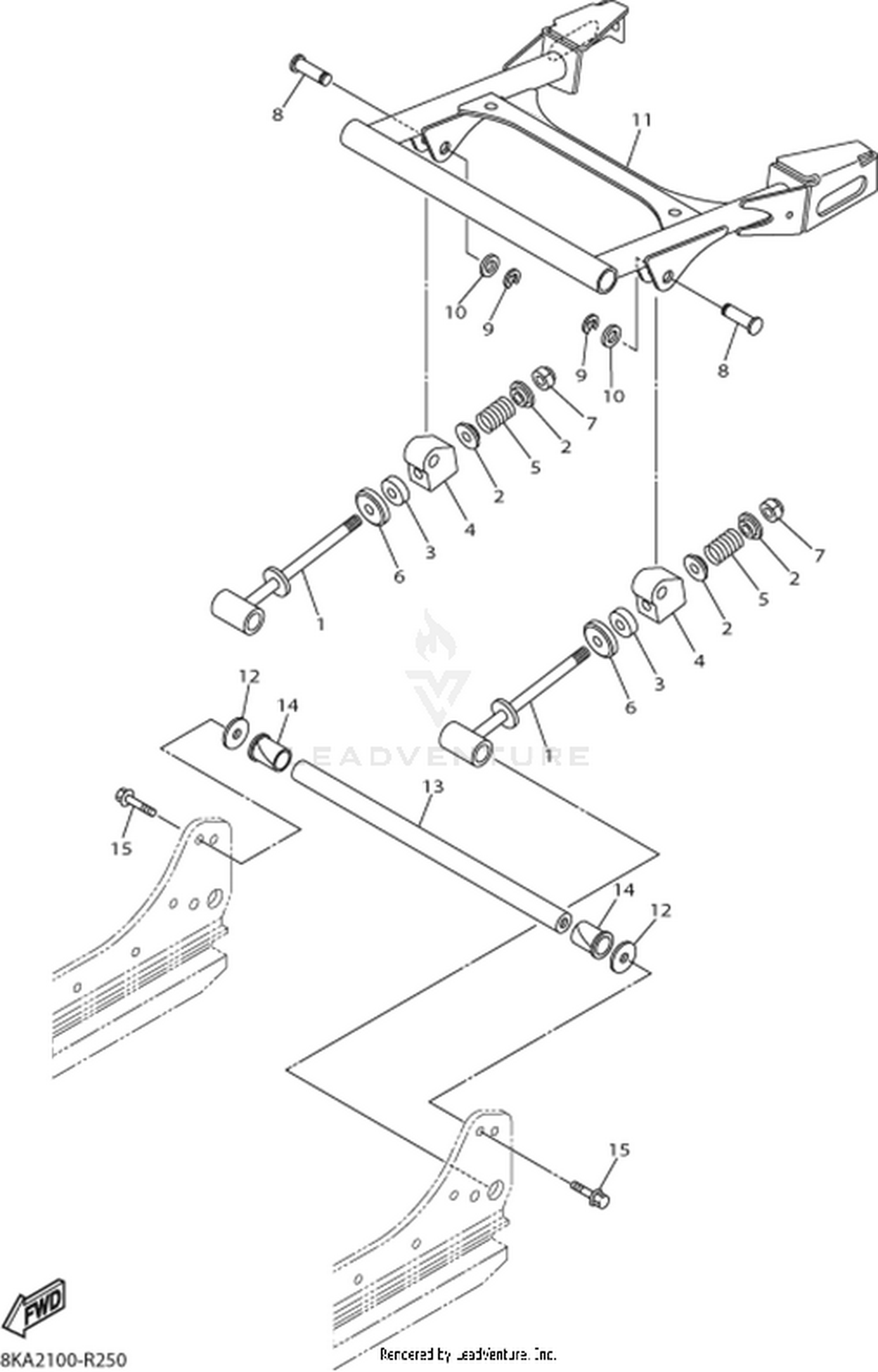

TRACK SUSPENSION 3 [106351]

Parts (14)

Ref	Part Number	Description
1	3020-759	Shaft, Pivot Price: $33.95
2	3020-754	Seat, Spring 1 Price: $5.95
3	3020-758	Spring Price: $10.95
4	3021-082	Hook 1 Price: $5.95
5	3021-502	Spring, Compression Price: $3.89
6	3021-099	Seat, Spring 1 Price: $4.37
7	3021-310	Nut, Self-Locking Price: $6.95
8	3021-378	Pin Price: $2.89
9	3021-690	Circlip Price: $1.09
10	3021-345	Washer, Plate Price: $2.59
11	3021-078	Arm, Pivot 3 Price: $183.95
12	3021-342	Washer, Plate Price: $3.09
13	3020-761	Shaft 3 Price: $71.95
14	3021-408	Bush, Solid Price: $4.69
