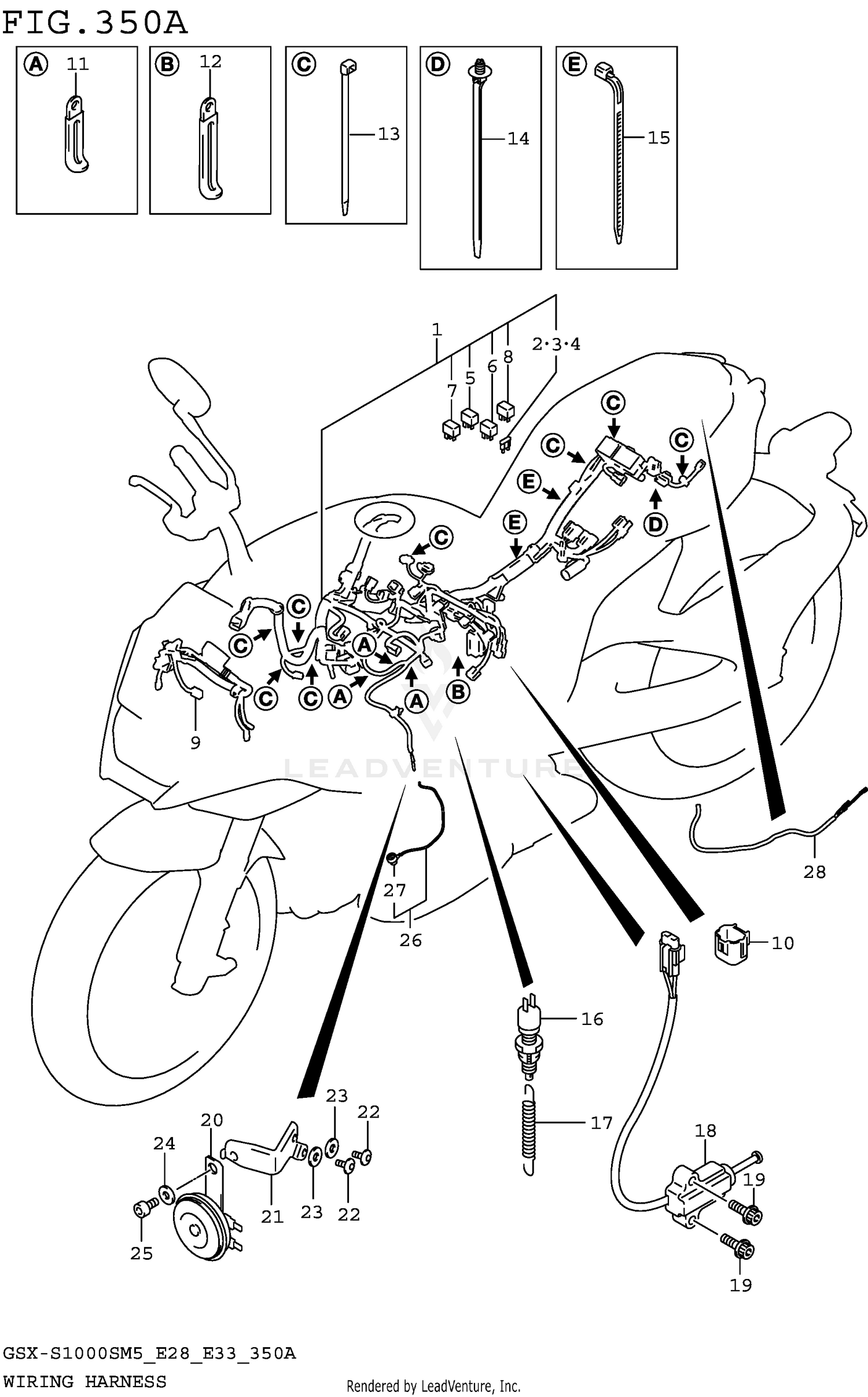

WIRING HARNESS (GSX-S1000SRQM5_E28)
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 36610-07LB0 | HARNESS, WIRING Price: Call Us |
| 9 | 36620-07LB0 | HARNESS, WIRING NO.2 Price: Call Us |
| 10 | 36654-28K00 | CAP,OBD CONNECTOR Price: $9.43 |
| 11 | 36651-07L00 | CLAMP, OIL PRESS LEAD (ENGINE Price: $15.04 |
| 12 | 09404-06030 | CLAMP (L:80) Price: Call Us |
| 13 | 09407-14407 | CLAMP (L:145) Price: $3.70 |
| 14 | 09407-17403 | CLAMP (L:170) Price: $6.24 |
| 15 | 09407-18402 | CLAMP (L:165) Price: $2.68 |
| 16 | 37740-07L00 | SWITCH ASSY, STOP LAMP Price: $24.88 |
| 17 | 09443-06054 | SPRING Price: $4.04 |
| 18 | 37840-48K00 | SWITCH ASSY, SIDE STAND Price: $108.03 |
| 19 | 01550-0620A | BOLT (6X20) Price: $2.37 |
| 20 | 38500-48K00 | HORN ASSY Price: $42.72 |
| 21 | 38590-04K10 | PLATE, HORN Price: $14.46 |
| 22 | 09139-06214 | SCREW (6X16) Price: $3.18 |
| 23 | 09160-06109 | WASHER (6.5X18X1.6) Price: $1.39 |
| 24 | 09160-08127 | WASHER (8.5X22X2) Price: $2.58 |
| 25 | 07130-0812A | BOLT Price: $3.91 |
| 26 | 36851-48K00 | WIRE, OIL PRESSURE SWITCH LEA Price: $17.23 |
