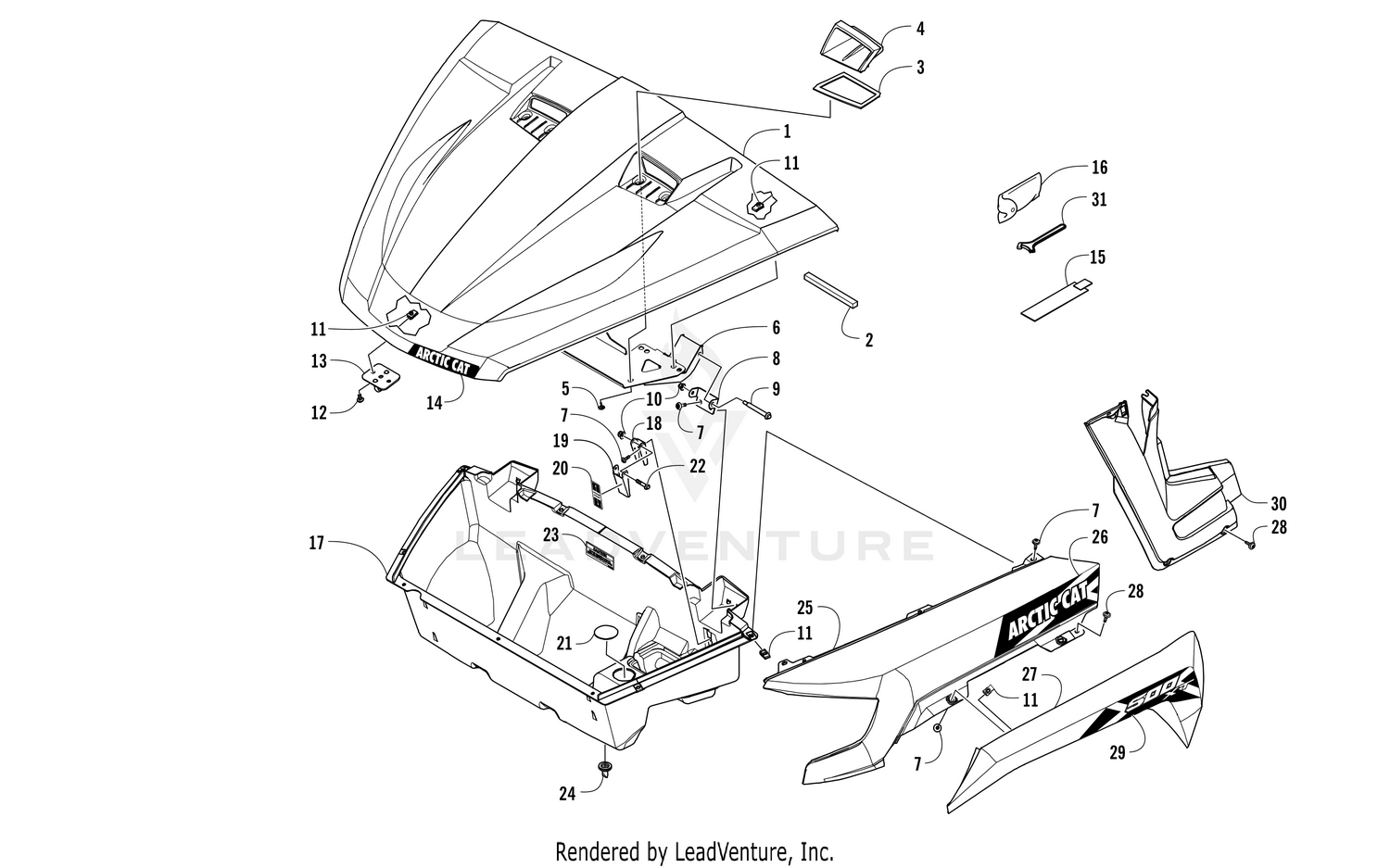

HOOD/FRONT STORAGE AND SIDE PANEL ASSEMBLY [301705]

Parts (37)

Ref	Part Number	Description
1	5506-973	Hood - Black Price: $437.35
2	4406-886	Seal, Hood Price: $7.85
3	5406-014	Seal, Scoop - Right Price: $4.08
3	5406-015	Seal, Scoop - Left Price: $4.08
4	4406-620	Scoop, Hood - Right Price: $18.80
4	4406-621	Scoop, Hood - Left Price: $18.80
5	0623-797	Screw, Self-Tapping Price: $0.42
6	7506-173	Hinge, Hood Price: $177.95
7	0423-609	Screw, Machine Not Available Price:
8	4406-828	Bracket, Hinge Pivot Price: $4.44
9	1423-289	SCREW,SHOULDER M6 X 1.0(8D X 60L) Price: $9.64
10	8427-603	Nut, Lock Price: $0.35
11	0423-577	Clip, U-Nut Price: $0.46
12	8477-616	Screw, Machine Price: $0.71
13	5506-906	Hook, Hood Latch Price: $21.96
14	5411-661	Decal, "Arctic Cat" - Black Price: $4.38
15	0707-582	RETAINER, DRIVE BELT-VELCRO Price: $17.92
16	2516-863	Kit, Tool Price: $67.99
17	4406-615	Box, Storage - Front Price: $140.95
18	4406-696	Bracket, Lock Lever Price: $4.09
19	4406-829	Lock, Lever - Hood Price: $5.13
20	4411-970	Decal, Hood Prop Price: $5.23
21	0623-600	Plug Price: $5.09
22	1423-288	SCREW,SHOULDER M6 X 1.0(8D X 35L) Price: $20.16
23	4411-553	Decal, Caution - Load Capacity (25 lb) Price: $3.76
24	0470-442	VALVE, AIR CLEANER Price: $14.25
25	5506-936	Fender, Inner Front - Right - Black Price: $172.75
25	5506-937	Fender, Inner Front - Left - Black Price: $185.95
26	5411-674	Decal, Inner Front- Side - Right - Black Price: $1.20
26	5411-675	Decal, Inner Front - Side - Left - Black Price: $1.20
27	5506-938	Fender, Outer Front - Right - Black Price: $168.95
27	5506-939	Fender, Outer Front - Left - Black Price: $168.95
28	1423-198	SCREW,MACH-TSBWH M6X 1.0 TRILOBE BLK Price: $1.08
29	5411-676	Decal, Outer Front - Right - Black Price: $1.42
29	5411-677	Decal, Outer Front - Left - Black Price: $20.38
30	4406-610	Panel, Side - Right Price: $48.95
30	4406-611	Panel, Side - Left Price: $48.95
