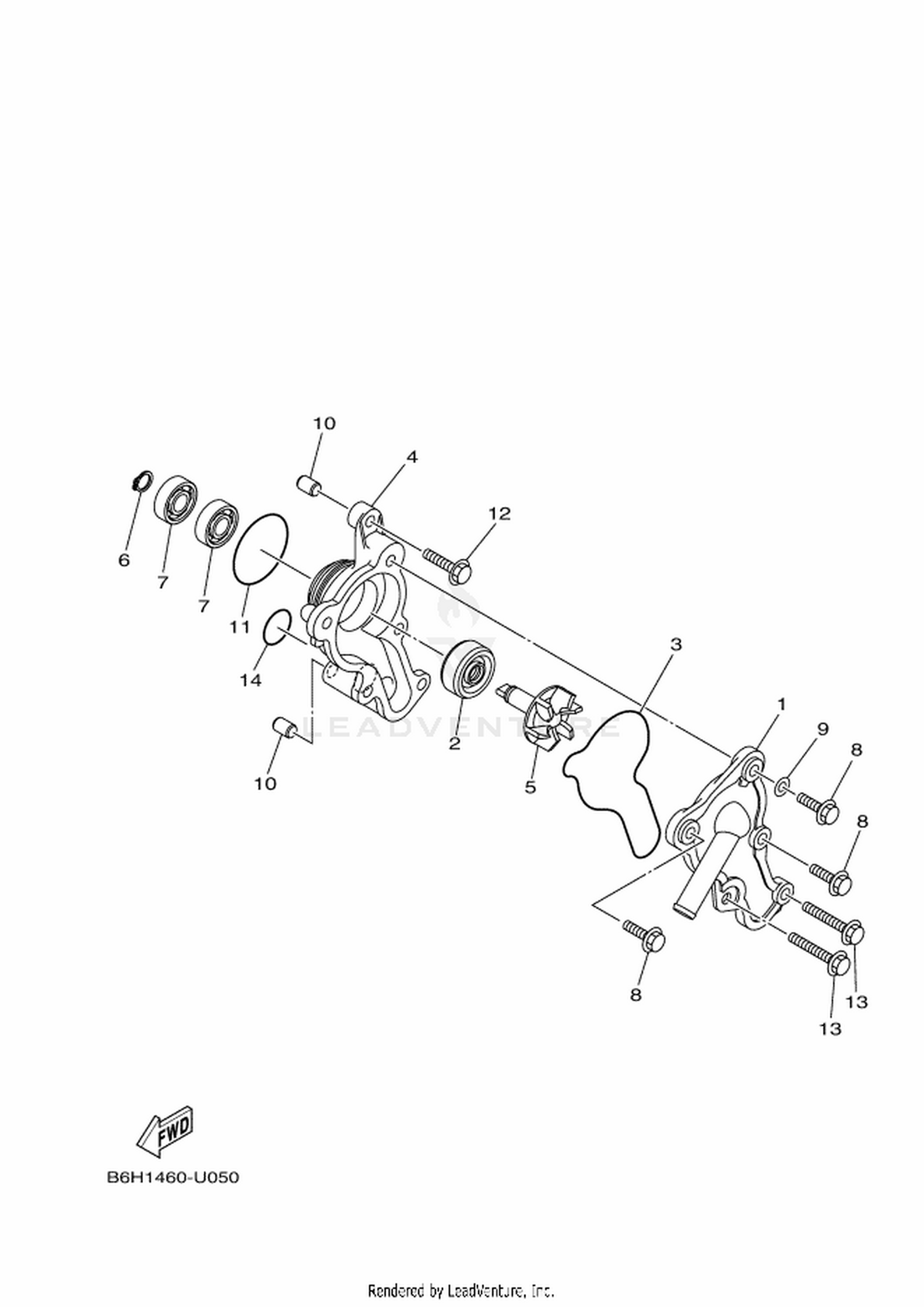

05 WATER PUMP
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | B6H-E2422-00 | COVER, HOUSING Price: Call Us |
| 2 | B6H-E2223-00 | SEAL Price: Call Us |
| 3 | B6H-E2439-00 | O-RING Price: Call Us |
| 4 | B6H-E1185-00 | COVER, CYLINDER HEAD SIDE 3 Price: Call Us |
| 5 | B6H-E2450-00 | IMPELLER SHAFT ASSY Price: Call Us |
| 6 | 99009-08400 | CIRCLIP Price: Call Us |
| 7 | 93300-608X0 | BEARING Price: Call Us |
| 8 | 95027-06020 | BOLT, FLANGE Price: Call Us |
| 9 | 90430-06803 | GASKET Price: Call Us |
| 10 | 99530-08012 | PIN, DOWEL Price: Call Us |
| 11 | 93210-39803 | O-RING Price: Call Us |
| 12 | 95E32-06025 | BOLT, FLANGE DEEP RECESS Price: Call Us |
| 13 | 95E32-06045 | BOLT, FLANGE DEEP RECESS Price: Call Us |
