| Ref | Part Number | Description |
|---|
| 1 |
0728-031 |
Track Drive Assembly (inc. 2-4) Price: $159.95 |
| 3 |
0602-487 |
Driveshaft Price: $304.95 |
| 4 |
0120-247 |
Bushing, Drive Price: $5.50 |
| 5 |
1602-375 |
BEARING,1.00 W/COLLAR Price: $177.95 |
| 6 |
0602-198 |
PLATE,FLANGE-BEARING (TRIANGLE) Price: $13.28 |
| 7 |
8011-132 |
Bolt, Carriage Price: $1.92 |
| 8 |
8040-426 |
Nut, Hex Lock - NYL 5/16-18 Z&Y Price: $1.79 |
| 9 |
0620-031 |
ADAPTOR,DRIVE SPEEDOMETER Price: $116.95 |
| 10 |
0104-062 |
Fitting, Grease Price: $1.32 |
| 11 |
0602-154 |
CABLE,DRIVE ADAPTOR Price: $11.39 |
| 12 |
0702-468 |
SHAFT,DRIVEN-PTD BLK Price: $195.43 |
| 13 |
0602-598 |
Key, Woodruff - Hardened Price: $19.35 |
| 14 |
0602-434 |
Hub, Brake Price: $164.95 |
| 15 |
0726-073 |
Assembly Price: $701.95 |
| 16 |
0623-459 |
Screw, Machine - Socket Head Price: $1.11 |
| 17 |
0123-430 |
Nut, Lock Price: $2.91 |
| 18 |
8050-307 |
Washer Price: $0.09 |
| 19 |
0101-076 |
Key Price: $3.02 |
| 20 |
1602-290 |
BEARING,1 W/LOCK(LARGE RACE) Price: $85.95 |
| 21 |
0602-233 |
Flange, Bearing Price: $4.60 |
| 22 |
8011-130 |
Bolt, Carriage Price: $1.18 |
| 23 |
8050-242 |
Washer Price: $2.26 |
| 24 |
0623-118 |
Washer, Shim (.030 in.) Price: $6.57 |
| 24 |
0623-119 |
Washer, Shim (.075 in.) Price: $8.43 |
| 25 |
0726-073 |
Assembly Price: $701.95 |
| 26 |
0123-053 |
Washer, Flat Price: $1.80 |
| 27 |
0123-578 |
Washer Price: $2.29 |
| 28 |
0123-019 |
Washer, Flat Price: $3.67 |
| 29 |
8002-138 |
Screw, Cap Price: $1.08 |
| 30 |
0602-505 |
Caliper, Brake Price: $177.95 |
| 31 |
0602-503 |
Ball, Alignment Price: $15.95 |
| 32 |
0602-616 |
Spring, Compression Price: $2.09 |
| 33 |
0623-450 |
Washer Price: $0.49 |
| 34 |
0602-622 |
Nut, Brake Caliper Price: $2.29 |
| 35 |
8070-316 |
Pin, Spring Price: $2.05 |
| 36 |
0602-779 |
Spring, Return Price: $63.67 |
| 37 |
0124-057 |
E-Ring Price: $0.89 |
| 38 |
0602-515 |
Screw, Brake - Adjuster Price: $4.09 |
| 39 |
0602-618 |
Spring, Compression Price: $78.79 |
| 40 |
0602-514 |
Knob, Brake - Adjuster Price: $5.29 |
| 41 |
0602-509 |
Pin, Clevis Price: $3.88 |
| 42 |
0702-414 |
ARM, ACTIVATOR-MACH Price: $87.95 |
| 43 |
0117-868 |
Pin, Cotter Price: $0.35 |
| 44 |
8050-212 |
Washer Price: $0.82 |
| 45 |
0602-508 |
Clevis Price: $24.20 |
| 46 |
8002-039 |
Screw, Cap Price: $0.33 |
| 47 |
8051-212 |
Washer, Spring Lock - 1/4 .252X.487X.062 Z&Y Price: $0.22 |
| 48 |
0702-283 |
Bracket, Brake Cable Price: $37.95 |
| 49 |
0602-716 |
Piston, Brake Pad Price: $5.95 |
| 50 |
0702-264 |
PAD SET,BRAKE Price: $72.95 |
| 51 |
0602-386 |
Bolt, Mounting - Brake Caliper Price: $11.95 |
| 52 |
0602-775 |
Plate, Backing - Stationary Pad Price: $17.92 |
| 53 |
0602-502 |
Ring, Snap Price: $0.79 |

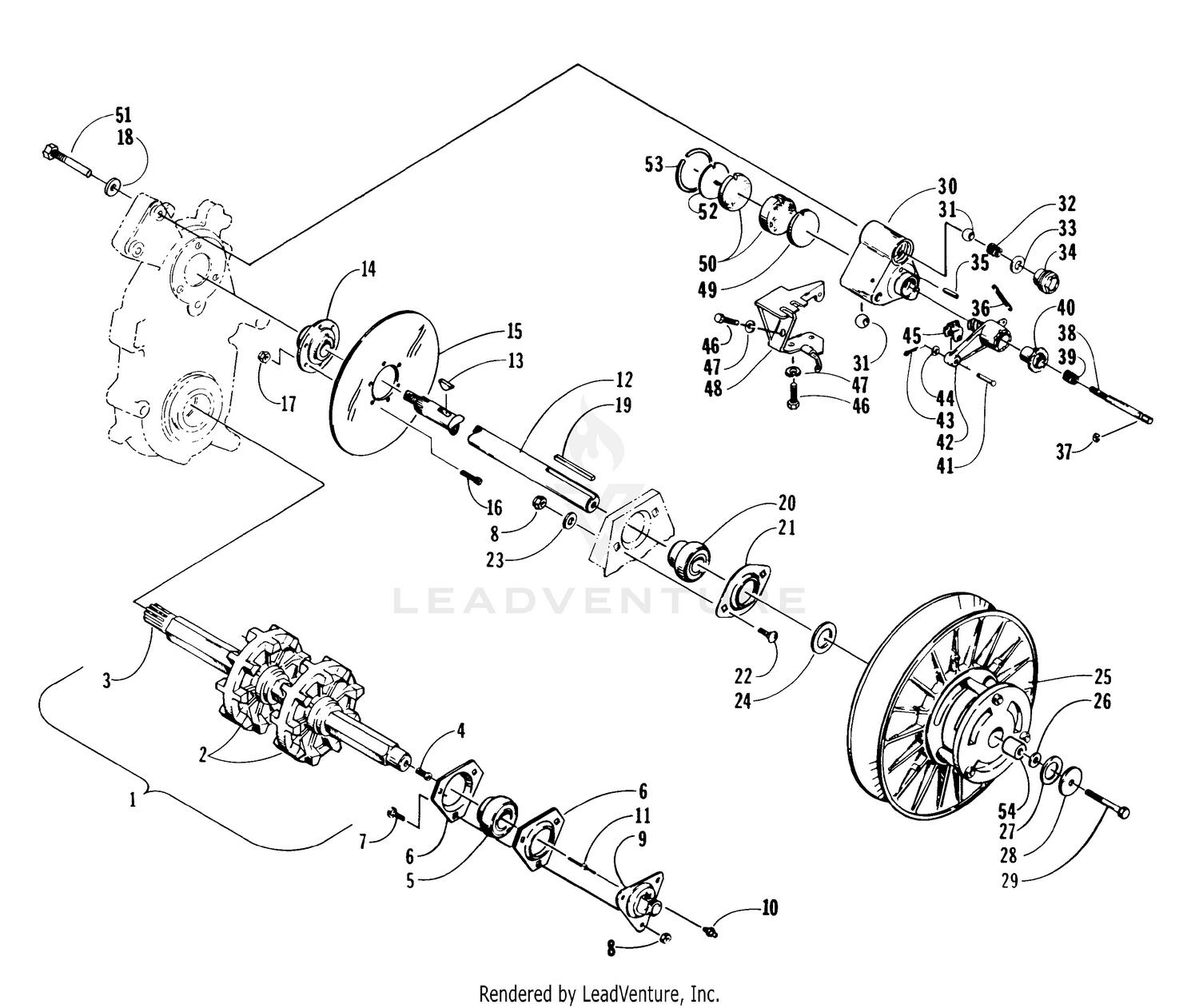

![DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES [63488]](https://cdn.datamanager.arinet.com/image/ARCT/39ad3560-f2f2-4c50-a262-396f85a28a2a/Max)
