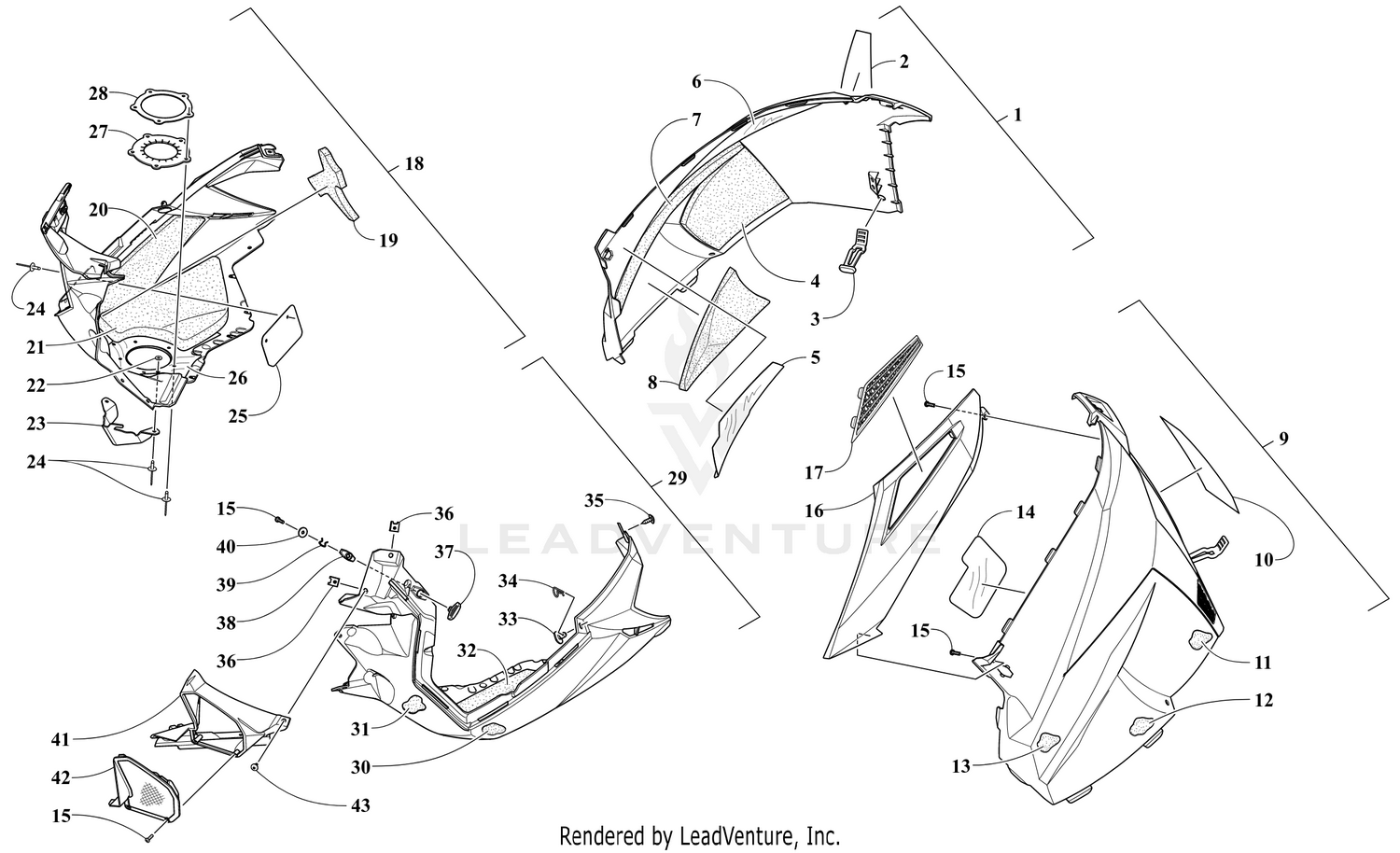

SKID PLATE AND SIDE PANEL ASSEMBLY [106246]

Parts (42)

Ref	Part Number	Description
2	3621-487	Decal, Warning - English Price: $12.07
3	0607-659	Strap, Hold-Down Price: $16.92
4	0617-756	Foam, Side Panel - Lower Rear - Right Price: $11.95
5	7606-552	Foil, Protective - Rear - Right Price: $4.59
6	7606-598	Foil, Protective - Upper - Right Price: $5.95
7	0617-758	Foam, Side Panel - Mid - Right Price: $13.95
8	0617-754	Foam, Side Panel - Lower Front - Right Price: $16.92
10	3621-486	Decal, Warning - French Price: $12.07
11	0617-757	Foam, Side Panel - Lower Rear - Left Price: $18.13
12	0617-755	Foam, Side Panel - Lower Front - Left Price: $16.92
13	0617-759	Foam, Side Panel - Middle - Left Price: $16.92
14	7606-873	Foil, Heat Price: $19.35
15	2623-211	Screw, Self-Tapping Price: $1.32
16	7606-448	Panel, Upper Side - Right - Gray Price: $205.95
16	7606-449	Panel, Upper Side - Left - Gray Price: $205.95
17	7606-272	Vent, Upper - Side Panel - Right Price: $7.23
17	7606-273	Vent, Upper - Side Panel - Left Price: $7.23
19	0617-776	Foam, Skid Plate - Front - Right Price: $18.13
20	0617-762	Foam, Skid Plate - Middle - Right Price: $16.92
21	0617-808	Foam, Skid Plate - Right Price: $26.95
22	0123-802	Washer Price: $0.23
23	3612-338	Deflector, Exhaust Price: $28.95
24	8061-708	Rivet Price: $1.08
25	3612-339	Plate, Exhaust Shield Price: $7.23
26	6606-352	Foil, Protective Price: $7.23
27	3612-336	Seal, Exhaust Outlet Price: $19.35
28	3612-337	Plate, Exhaust Outlet Price: $20.56
30	0617-765	Foam, Skid Plate - Lower - Left Price: $16.92
31	0617-761	Foam, Skid Plate - Front - Left Price: $16.92
32	0617-763	Foam, Skid Plate - Middle - Left Price: $16.92
33	6606-592	Pin, Retaining Price: $3.88
34	0605-283	Clip, Hairpin Price: $2.29
35	2623-167	SCREW,SELF TAP-TSTRH-#10-12X3/4 TP A BLK Price: $5.09
36	1623-939	Nut, U Price: $1.30
37	7606-265	Knob, Hold-Down Price: $1.70
38	7606-296	Plate, Backing Price: $1.70
39	2623-155	Clip, Retaining Price: $3.14
40	2623-171	Washer Price: $1.08
41	7606-258	Vent - Right Price: $24.20
41	7606-259	Vent - Left Price: $24.20
42	7606-056	Bezel, Vent - Right Price: $26.95
42	7606-057	Bezel, Vent - Left Price: $26.95
