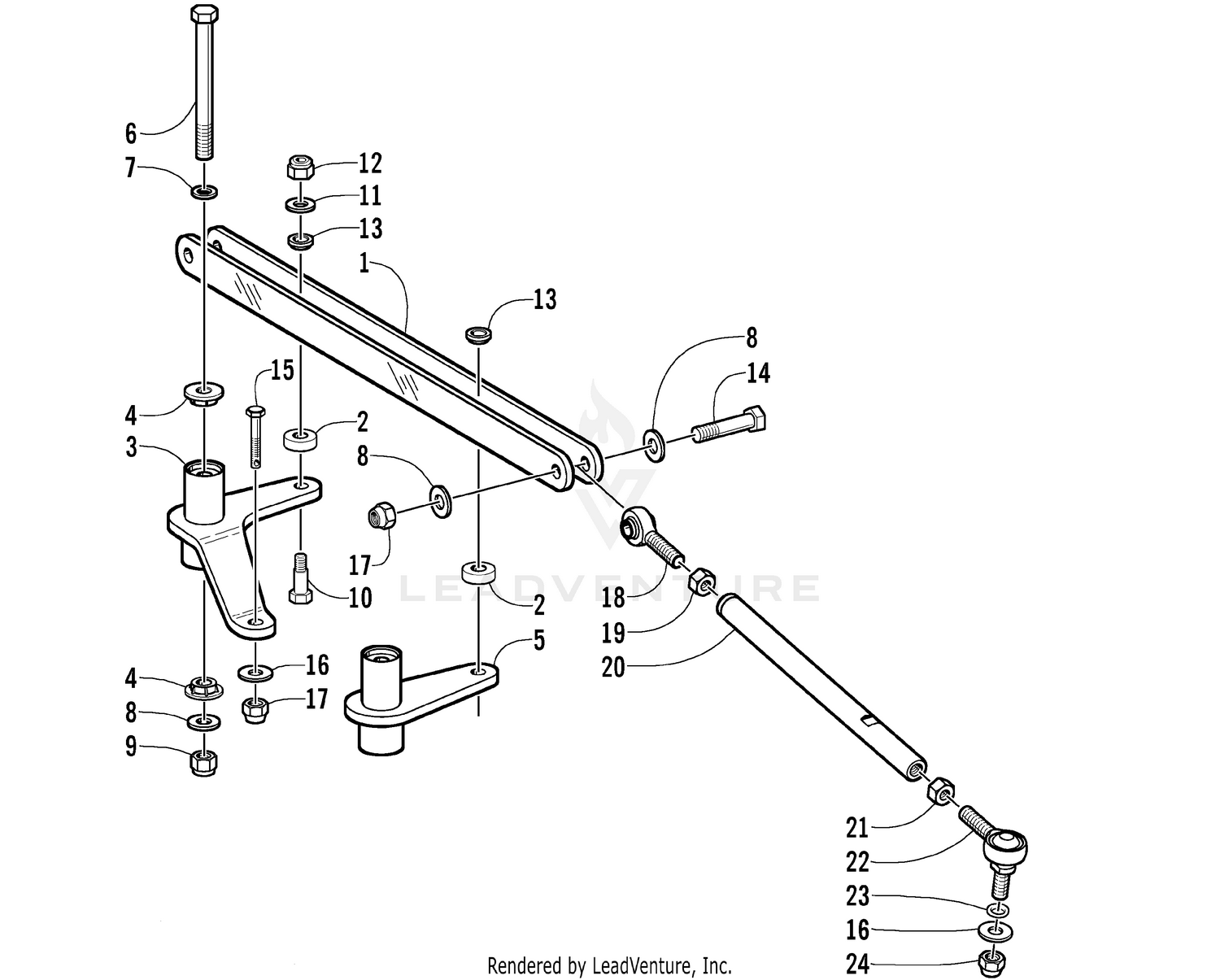

TIE ROD ASSEMBLY [76986] — Parts Catalog

Ref	Part Number	Description
2	0605-541	Bearing Price: $6.95
3	0705-368	Arm, Steering - Assembly Price: $79.95
4	0605-540	Insert Price: $0.29
5	0705-366	Arm, Steering - Idler - Assembly Price: $91.95
6	8002-234	Screw, Cap Price: $1.49
7	0623-439	WASHER, FLAT .375X.625X.064 Price: $2.34
8	8050-277	Washer, Flat Price: $0.35
9	8040-486	Nut, Lock Price: $1.20
10	0623-920	Screw, Cap Price: $2.24
11	8050-272	Washer Price: $0.35
12	0623-422	Nut, Lock Price: $1.80
13	0605-522	Axle, Drag Link Price: $0.39
14	8002-226	Screw, Cap Price: $0.79
15	0623-436	Screw, Cap Price: $1.49
16	0623-044	Washer Price: $2.59
17	0623-026	Nut, Lock Price: $12.07
18	1605-010	Rod End, Right Hand - 3/8-24 (3/8 Bore) Price: $46.95
19	0623-294	NUT,HEX-3/8-24 UNF W/CLEAR CHROMATE Price: $0.48
20	0708-389	Tube, Tie Rod - Spindle Price: $14.95
21	0123-917	NUT, HEX 3/8-24 LH Price: $1.45
22	1605-011	Rod End, Left Hand - 3/8-24 w/Stud Price: $46.95
23	0605-014	O-Ring Price: $0.35
