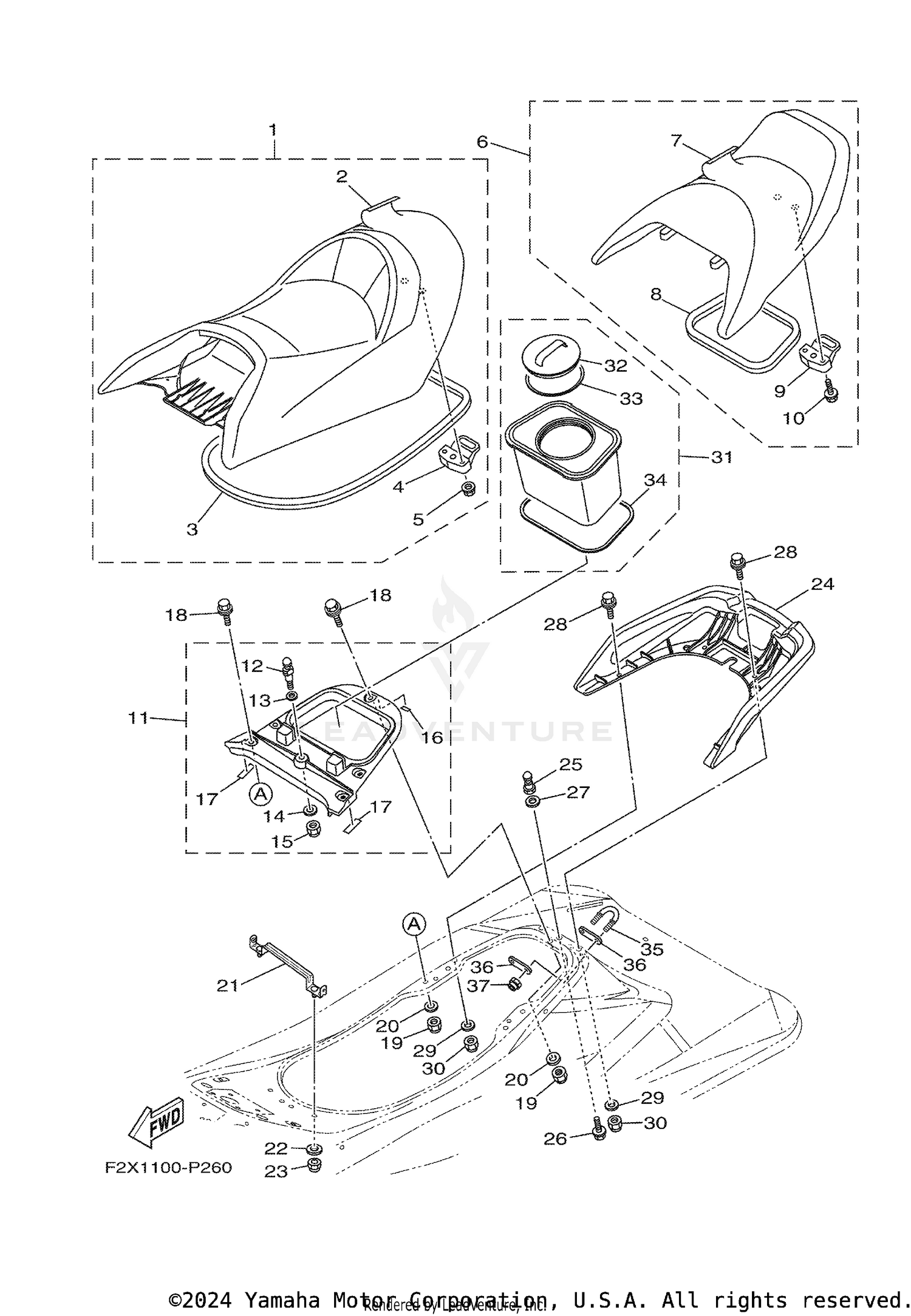

| Ref | Part Number | Description |
|---|
| 1 |
F2X-U371A-81-00 |
SEAT ASSY This part replaces F2X-U371A-80-00. Price: $583.99 |
| 2 |
F2X-U371B-81-00 |
COVER, SEAT 1 This part replaces F2X-U371B-80-00. Price: $419.99 |
| 3 |
F1W-U2664-01-00 |
PACKING Price: $45.99 |
| 4 |
F2C-U3850-00-00 |
SEAT LOCK ASSY Price: $34.99 |
| 5 |
90119-06808-00 |
BOLT, WITH WASHER This part replaces 90119-069UP-00. Price: $3.90 |
| 6 |
F2X-U372A-80-00 |
SINGLE SEAT ASSY Price: $448.99 |
| 7 |
F2X-U372B-80-00 |
COVER, SEAT Price: $332.99 |
| 8 |
F2C-U266D-01-00 |
PACKING 5 Price: $22.99 |
| 9 |
F1B-U3850-02-00 |
SEAT LOCK ASSY Price: $12.99 |
| 10 |
90119-06808-00 |
BOLT, WITH WASHER This part replaces 90119-069UP-00. Price: $3.90 |
| 11 |
F2S-U890L-05-00 |
DECK BEAM ASSY This part replaces F2S-U890L-04-00. Price: $62.99 |
| 12 |
GH1-U3774-00-00 |
PIN Price: $28.99 |
| 13 |
90201-109U6-00 |
WASHER, PLATE Price: $5.99 |
| 14 |
9299R-10200-00 |
WASHER Price: $5.99 |
| 15 |
9572R-10300-00 |
NUT, FLANGE Price: $8.99 |
| 16 |
F2S-U375E-00-00 |
PACKING 1 Price: $8.99 |
| 17 |
F2S-U8244-00-00 |
PACKING Price: $5.99 |
| 18 |
90119-08828-00 |
BOLT, WITH WASHER Price: $6.99 |
| 19 |
95780-08300-00 |
NUT, FLANGE This part replaces 9572R-08300-00. Price: $11.80 |
| 20 |
9299R-08200-00 |
WASHER Price: $2.45 |
| 21 |
F2X-U378C-00-00 |
STAY, SEAT 1 Price: $31.99 |
| 22 |
90201-099U3-00 |
WASHER, PLATE Price: $6.99 |
| 23 |
95780-08300-00 |
NUT, FLANGE This part replaces 9572R-08300-00. Price: $11.80 |
| 24 |
F2X-U271B-10-00 |
GRIP, HAND Price: $200.99 |
| 25 |
F1K-U3774-00-00 |
PIN Price: $23.99 |
| 26 |
90119-10815-00 |
BOLT,WITH WASHER This part replaces 90119-10804-00. Price: $8.99 |
| 27 |
9299R-10200-00 |
WASHER Price: $5.99 |
| 28 |
90119-08828-00 |
BOLT, WITH WASHER Price: $6.99 |
| 29 |
9299R-08200-00 |
WASHER Price: $2.45 |
| 30 |
95780-08300-00 |
NUT, FLANGE This part replaces 9572R-08300-00. Price: $11.80 |
| 31 |
F2X-U591A-01-00 |
CASE ASSY 1 Price: $59.99 |
| 32 |
F2C-U591C-00-00 |
CAP,CASE Price: $11.99 |
| 33 |
F2C-U591D-01-00 |
PACKING,CASE Price: $3.99 |
| 34 |
F2C-U266E-00-00 |
PACKING,6 Price: $22.99 |
| 35 |
F2N-U1628-02-00 |
STERN EYE Price: $8.99 |
| 36 |
GP7-U4953-10-00 |
PLATE A Price: $8.99 |
