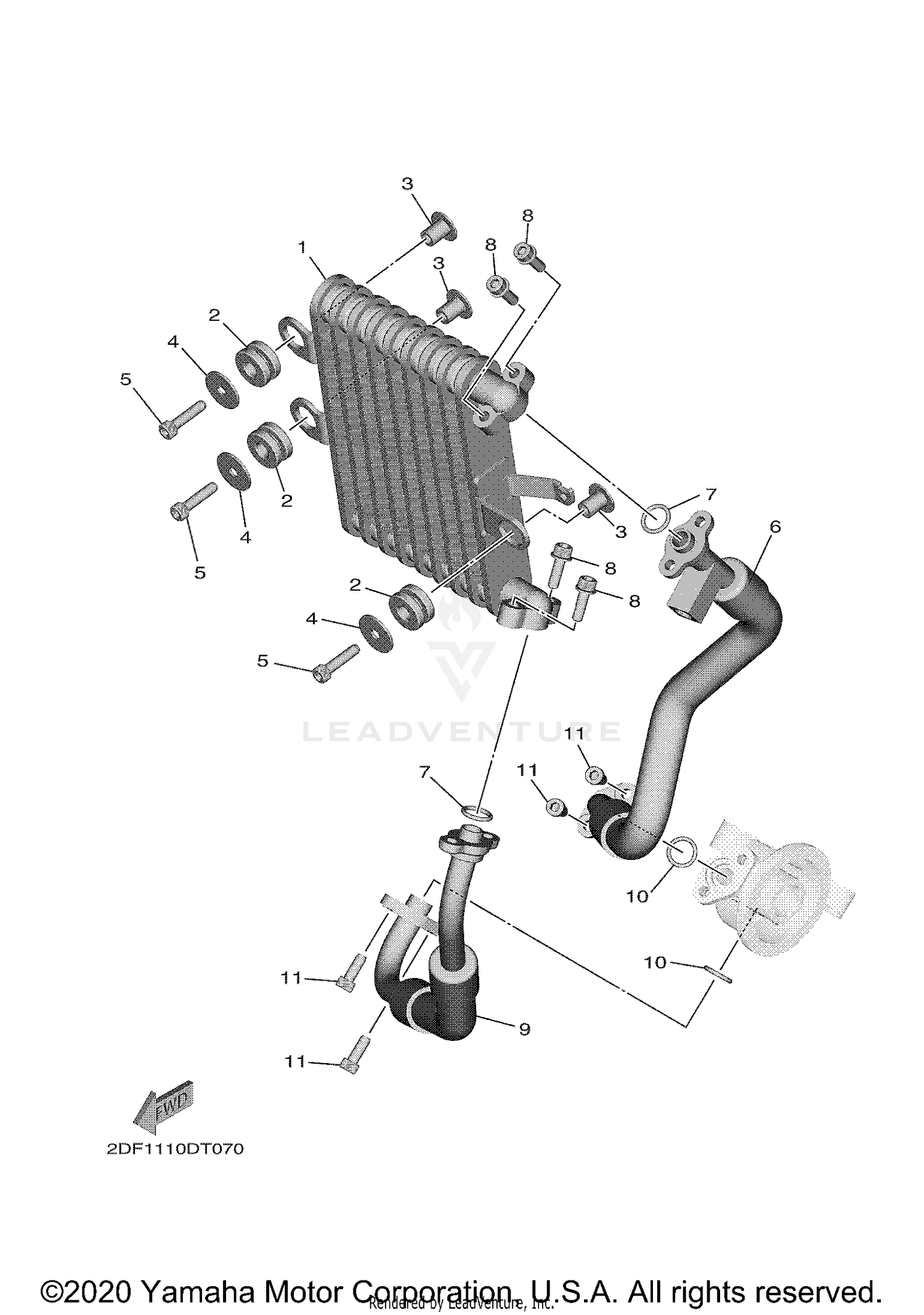

OIL COOLER
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 2DF-13470-00-00 | OIL COOLER ASSY Price: $336.99 |
| 2 | 90480-15363-00 | GROMMET Price: $9.49 |
| 3 | 90387-06158-00 | COLLAR This part replaces 90387-063E6-00. Price: $9.49 |
| 4 | 90201-064K6-00 | WASHER, PLATE Price: $10.49 |
| 5 | 91317-06025-00 | BOLT, HEXAGON SOCKET HEAD Price: $2.65 |
| 6 | 2DF-1316F-00-00 | HOSE, OIL 1 This part replaces 2DF-1316F-01-00. Price: $193.99 |
| 7 | 93210-13657-00 | O-RING Price: $8.49 |
| 8 | 90110-06069-00 | BOLT, HEXAGON SOCKET HEAD Price: $2.80 |
| 9 | 2DF-1316G-01-00 | HOSE, OIL 2 Price: $157.99 |
| 10 | 93210-14637-00 | O-RING Price: $8.49 |
