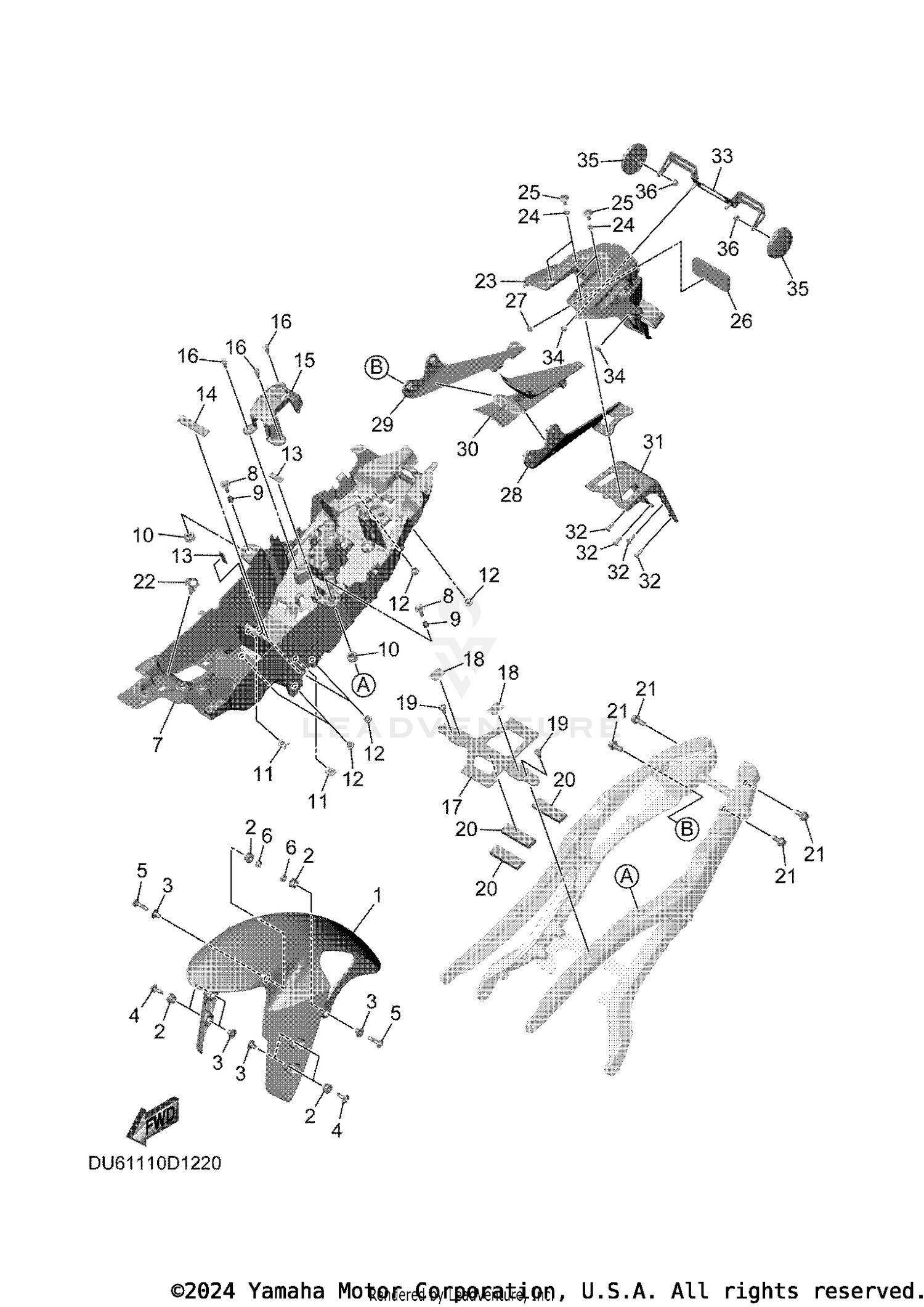

| Ref | Part Number | Description |
|---|
| 2 |
90480-12072-00 |
GROMMET Price: $9.49 |
| 3 |
90387-06159-00 |
COLLAR This part replaces 90387-065J6-00. Price: $9.49 |
| 4 |
90111-06051-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 5 |
90111-06030-00 |
BOLT, HEXAGON SOCKET BUTTON Price: $4.75 |
| 6 |
95702-06500-00 |
NUT, WITH WASHER Price: $2.60 |
| 7 |
BKN-8212B-00-00 |
BOX, BATTERY 1 Price: $75.99 |
| 8 |
90119-06313-00 |
BOLT WITH WASHER Price: $1.15 |
| 9 |
90387-06113-00 |
COLLAR This part replaces 90387-060A7-00. Price: $12.49 |
| 10 |
90480-14035-00 |
GROMMET Price: $2.55 |
| 11 |
90183-06069-00 |
NUT, SPRING Price: $7.49 |
| 12 |
90338-10132-00 |
PLUG Price: $3.80 |
| 13 |
B7N-21649-00-00 |
DAMPER Price: $2.35 |
| 14 |
B5Y-21486-00-00 |
DAMPER 2 Price: $4.15 |
| 15 |
BME-2116H-00-00 |
COVER 9 Price: $9.99 |
| 16 |
90269-06008-00 |
RIVET Price: $9.49 |
| 17 |
BKN-2116B-01-00 |
BRKT. Price: $18.49 |
| 18 |
3MA-27491-00-00 |
PROTECTOR Price: $9.49 |
| 19 |
90111-06029-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 20 |
5GJ-21717-00-00 |
DAMPER Price: $5.99 |
| 21 |
95812-08020-00 |
BOLT, FLANGE This part replaces 90105-08171-00. Price: $2.80 |
| 22 |
90464-18002-00 |
CLAMP Price: $9.49 |
| 23 |
B7N-21629-00-00 |
GUARD, MUD Price: $22.99 |
| 24 |
90387-06106-00 |
COLLAR This part replaces 90387-06372-00. Price: $8.49 |
| 25 |
90111-06190-00 |
BOLT,HEX. SOCKET BUTTON Price: $2.00 |
| 26 |
3Y6-85130-02-00 |
REAR REFLECTOR ASSY Price: $30.99 |
| 27 |
95607-05200-00 |
NUT, U FLANGE This part replaces 95602-05200-00. Price: $10.49 |
| 28 |
BME-2164F-00-00 |
STAY 1 Price: $60.99 |
| 29 |
BME-2164G-00-00 |
STAY 2 Price: $58.99 |
| 30 |
BKN-2163E-00-00 |
COVER, REAR FENDER 2 Price: $20.99 |
| 31 |
B7N-21682-00-00 |
STAY, PLATE Price: $44.99 |
| 32 |
90160-05012-00 |
SCREW, ROUND TAPPING Price: $8.49 |
| 33 |
1RC-84751-00-00 |
BRACKET, LICENSE Price: $36.99 |
| 34 |
95617-06100-00 |
NUT, U This part replaces 95607-06100-00. Price: $2.90 |
| 35 |
449-85131-02-00 |
REFLECTOR, REAR 1 Price: $33.99 |
