Parts Catalog

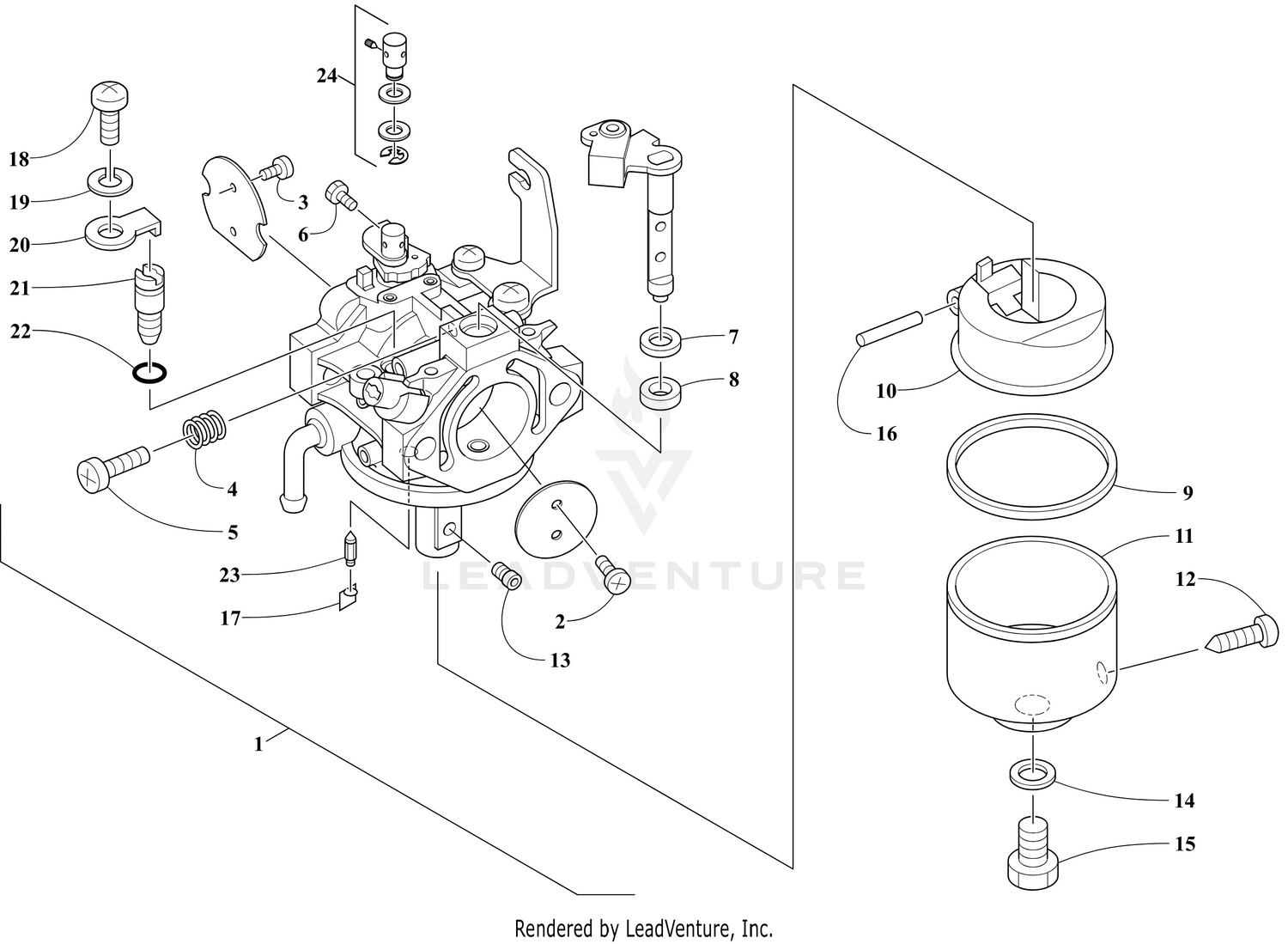

CARBURETOR ASSEMBLY [106086]

Parts (21)

Ref	Part Number	Description
2	3020-090	Screw, Machine Price: $4.51
3	3020-091	Screw, Machine Price: $4.99
4	3021-774	Spring Price: $19.35
5	3021-775	Screw, Throttle Stop Price: $7.08
6	3021-776	Bolt Price: $4.72
7	3021-777	Washer, Plug Screw Price: $2.66
8	3020-004	Washer Price: $5.94
9	3021-779	Seal Price: $27.95
10	3021-780	Float Price: $30.95
12	3020-079	Screw, Machine Price: $23.76
13	3021-783	Jet, Main Price: $19.35
14	3021-784	Gasket Price: $9.64
15	3021-785	Bolt, Holding Price: $7.23
16	3020-002	Pin, Float Price: $19.00
17	3020-080	Clip, Retaining Price: $21.37
18	3020-605	Screw Price: $0.39
19	3021-789	Washer, Spring Price: $2.66
20	3021-790	Plate Price: $7.23
21	3021-842	Jet, Pilot - 37.5 Price: $30.95
22	3021-791	O-Ring Price: $15.71
23	3021-793	Needle Assembly Price: $50.95
