Parts Catalog

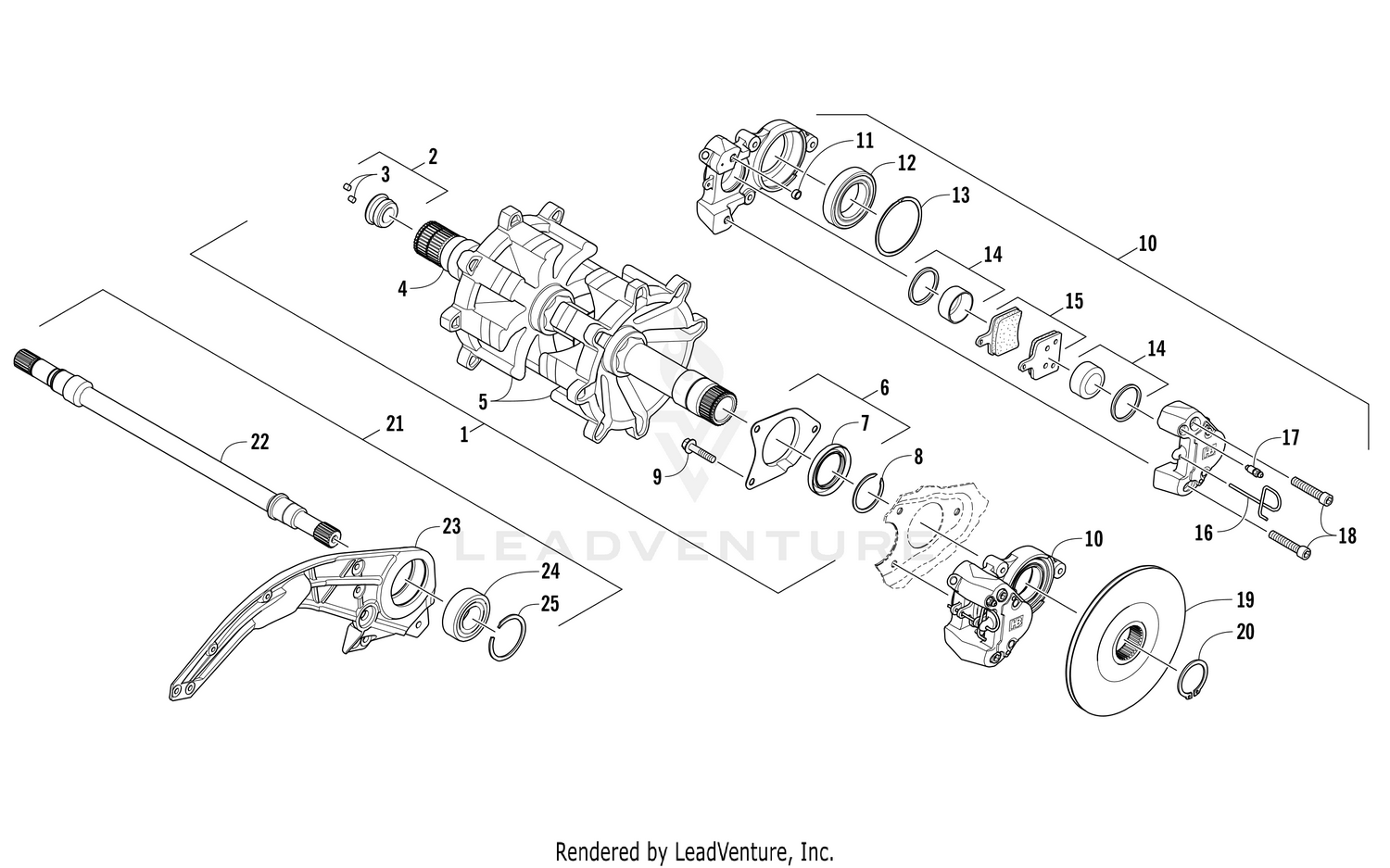

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES [106301]

Parts (18)

Ref	Part Number	Description
3	2602-211	Magnet Price: $7.23
4	2602-740	Driveshaft Price: $232.95
5	2602-504	Sprocket, Drive Price: $51.95
7	1602-344	Seal Price: $6.95
8	2602-233	Ring, Retaining Price: $2.42
9	8408-831	Screw, Cap Price: $1.08
11	2602-411	Seal Price: $5.59
12	2602-198	Bearing Price: $26.95
13	2602-280	Ring, Retaining Price: $3.88
14	2602-410	Piston Set Price: $82.95
16	2602-409	Pin, Retaining Price: $6.06
17	2602-408	Fitting, Bleed Price: $7.23
18	2602-412	Screw, Cap Price: $5.15
19	2602-249	Disc, Brake Price: $246.95
20	2602-629	Ring, Retaining Price: $2.91
22	2602-772	Shaft, Driven Price: $164.95
23	2707-751	Support, Chassis - Left Price: $275.95
24	2602-524	Bearing Price: $14.49
