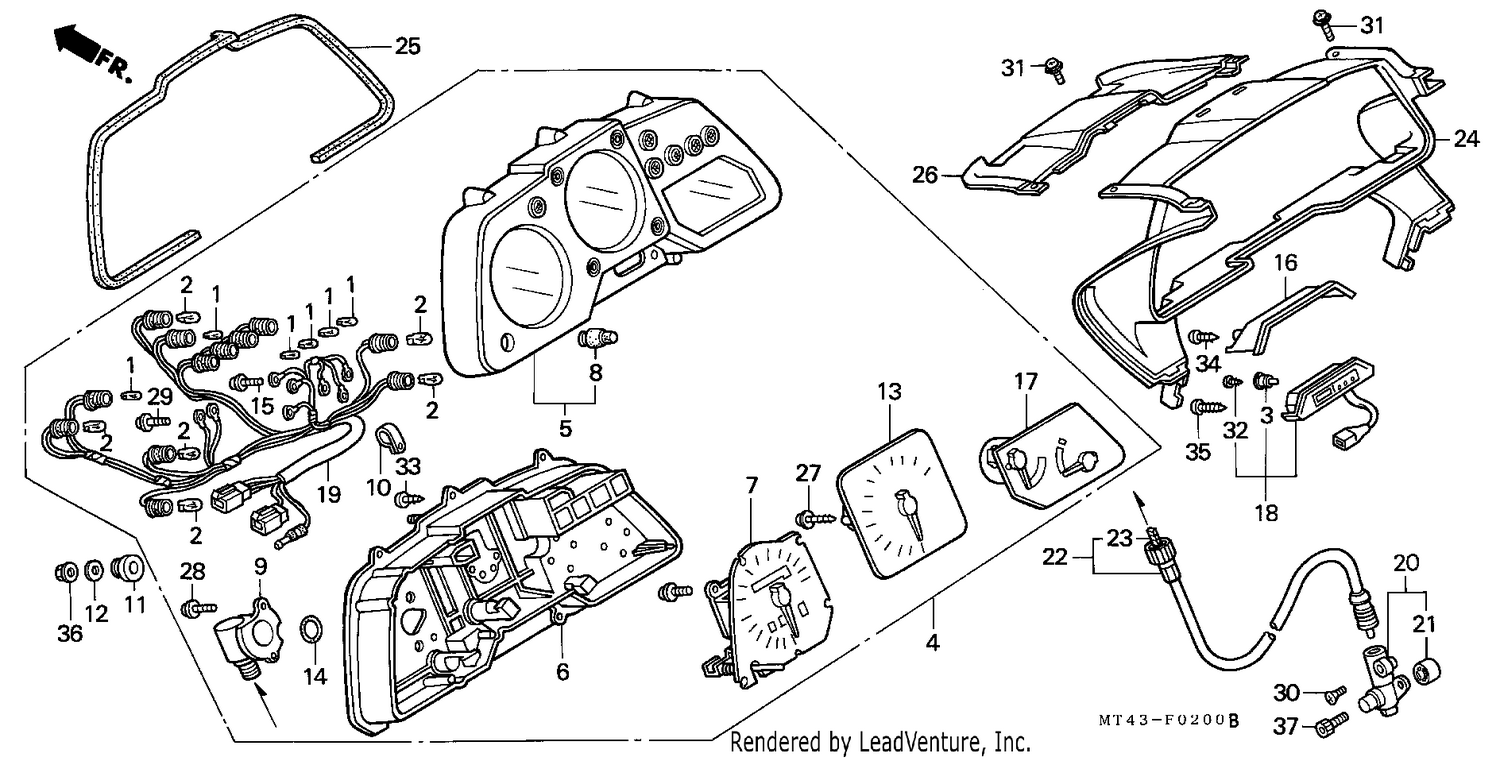

METER (VFR750FL/FM/FN/FP)

METER (VFR750FL/FM/FN/FP)

Parts (34)

RefPart NumberDescription
1 34908GA7701 BULB, WEDGE BASE (T10) (12V 3.4W) (NIPPON SEIKI) Price: Call Us
2 34908MB9871 BULB, WEDGE BASE (T10) (12V 1.7W) (STANLEY) Price: Call Us
3 34908MJ3003 BULB, WEDGE BASE Price: Call Us
4 37100MT4611 METER ASSY., COMBINATION (KPH) Price: Call Us
5 37102MT4611 CASE ASSY., UPPER Price: Call Us
6 37108MT4611 CASE ASSY., UNDER Price: Call Us
7 37200MT4611 SPEEDOMETER COMP. Price: Call Us
8 37205MR5008 KNOB, TRIP METER Price: Call Us
9 37211KY2711 BOSS, ELBOW Price: Call Us
10 37215KM1670 CLAMP Price: Call Us
11 37215MA6008 RUBBER, METER CUSHION Price: Call Us
12 37244MA6008 WASHER, PLAIN Price: Call Us
13 37250MT4611 TACHOMETER COMP. Price: Call Us
14 37264MR7008 SEAL Price: Call Us
15 37305KE5008 SCREW-WASHER, 3X22 Price: Call Us
17 37430MT4611 METER COMP., FUEL & TEMPERATURE Price: Call Us
18 37460MT4600 CLOCK ASSY. Price: Call Us
19 37619MT4611 SOCKET COMP. Price: Call Us
20 44800MR7003 BOX ASSY., SPEEDOMETER GEAR Price: Call Us
21 44808MR7013 JOINT, SPEEDOMETER Price: Call Us
22 44830KR5000 CABLE ASSY., SPEEDOMETER Price: Call Us
23 44831KB9000 CABLE, SPEEDOMETER INNER Price: Call Us
24 64600MT4000ZA VISOR, METER *NH280R* Price: Call Us
25 64601MT4000 RUBBER, METER SEAL Price: Call Us
26 64605MT4000ZA VISOR, LOWER *NH280R* Price: Call Us
27 90032ML7671 SCREW, TAPPING, 4X36 Price: Call Us
28 90035166008 SCREW-WASHER, SPECIAL, 4X10 Price: Call Us
29 90108GN2008 SCREW-WASHER, 3X10 Price: Call Us
30 93700050200G SCREW, OVAL, 5X20 Price: Call Us
31 938910401207 SCREW-WASHER, 4X12 Price: Call Us
32 9390122120 SCREW, TAPPING, 3X8 Price: Call Us
33 9390324420 SCREW, TAPPING, 4X16 Price: Call Us
35 9390325620 SCREW, TAPPING, 5X30 Price: Call Us
36 9405006080 NUT, FLANGE, 6MM Price: Call Us
