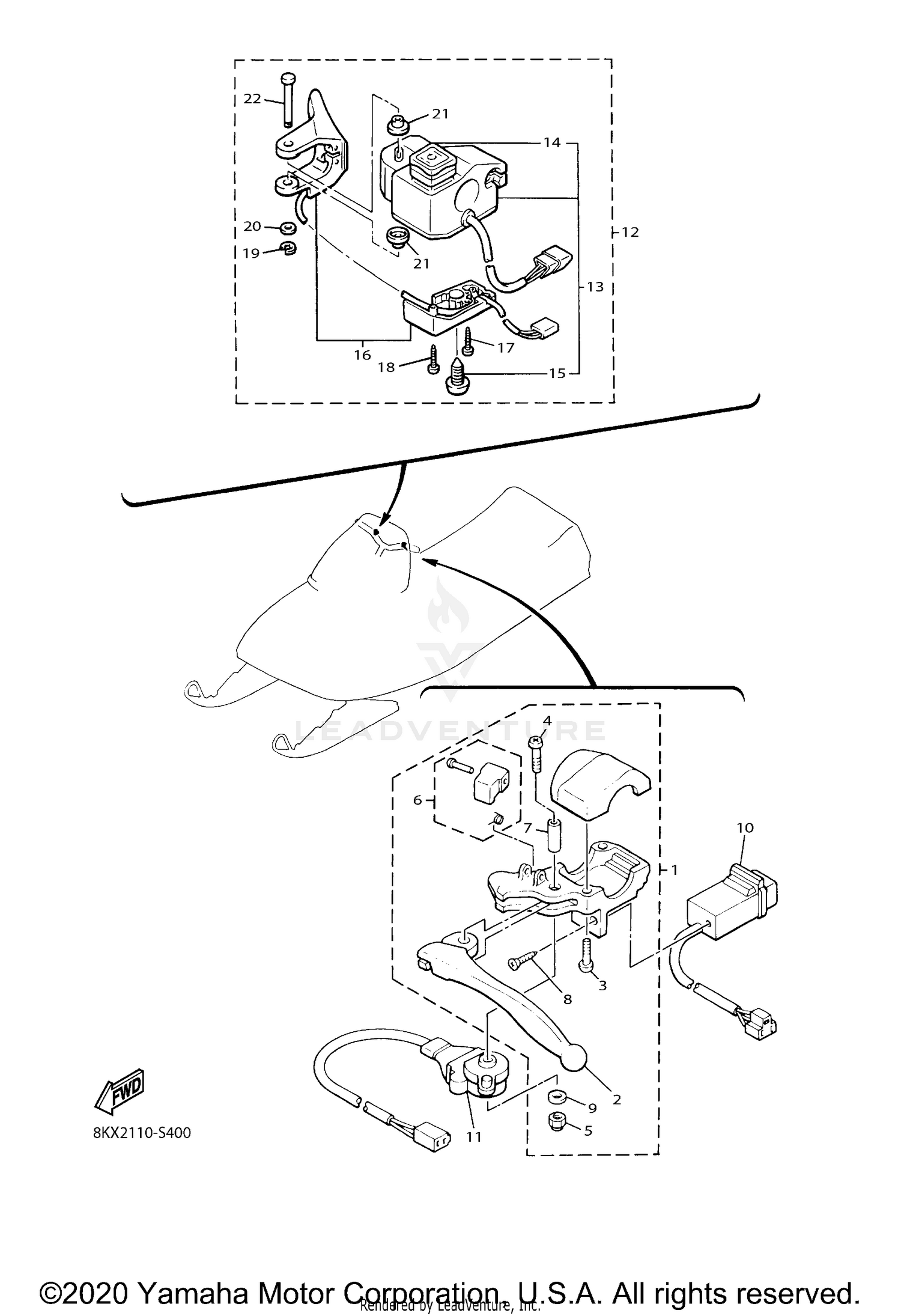

HANDLE SWITCH LEVER
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 88R-W8291-00-00 | LEVER HOLDER ASSY (LEFT) Price: $127.99 |
| 2 | 8H8-83912-00-00 | LEVER 1 Price: $22.99 |
| 3 | 90157-05057-00 | SCREW, PAN HEAD This part replaces 90157-05027-00. Price: $3.85 |
| 4 | 8R4-82113-00-00 | SCREW Price: $1.15 |
| 5 | 95707-05300-00 | NUT, FLANGE This part replaces 95702-05300-00. Price: $4.55 |
| 6 | 8K4-W8393-00-00 | LEVER LOCK ASSY Price: $28.99 |
| 7 | 802-83913-00-00 | COLLAR, LEVER 1 Price: $9.49 |
| 8 | 8R4-8252V-00-00 | SCREW, SPECIAL Price: $0.85 |
| 9 | 92990-05200-00 | WASHER, PLAIN This part replaces 92902-05200-00. Price: $5.00 |
| 10 | 8K4-83950-01-00 | BEAM SWITCH ASSY Price: $75.99 |
| 11 | 88R-82530-00-00 | STOP SWITCH ASSY Price: $34.99 |
| 12 | 8KX-82720-00-00 | LEVER HOLDER ASSY (RIGHT) Price: $169.99 |
| 13 | 8KX-83963-00-00 | SWITCH, HANDLE 3 Price: $101.99 |
| 15 | 8R6-83928-00-00 | SCREW Price: $3.35 |
| 16 | 8KX-82970-00-00 | THUMB WARMER ASSY Price: $128.99 |
| 17 | 97706-30620-00 | SCREW, TAPPING Price: $1.60 |
| 18 | 97707-30630-00 | SCREW, TAPPING This part replaces 97706-30630-00. Price: $1.60 |
| 19 | 99080-04600-00 | CLIP This part replaces 99001-04600-00. Price: $1.99 |
| 20 | 85G-83663-00-00 | WASHER, SPECIAL Price: $9.49 |
| 21 | 85G-83956-00-00 | CAP 1 Price: $8.49 |
