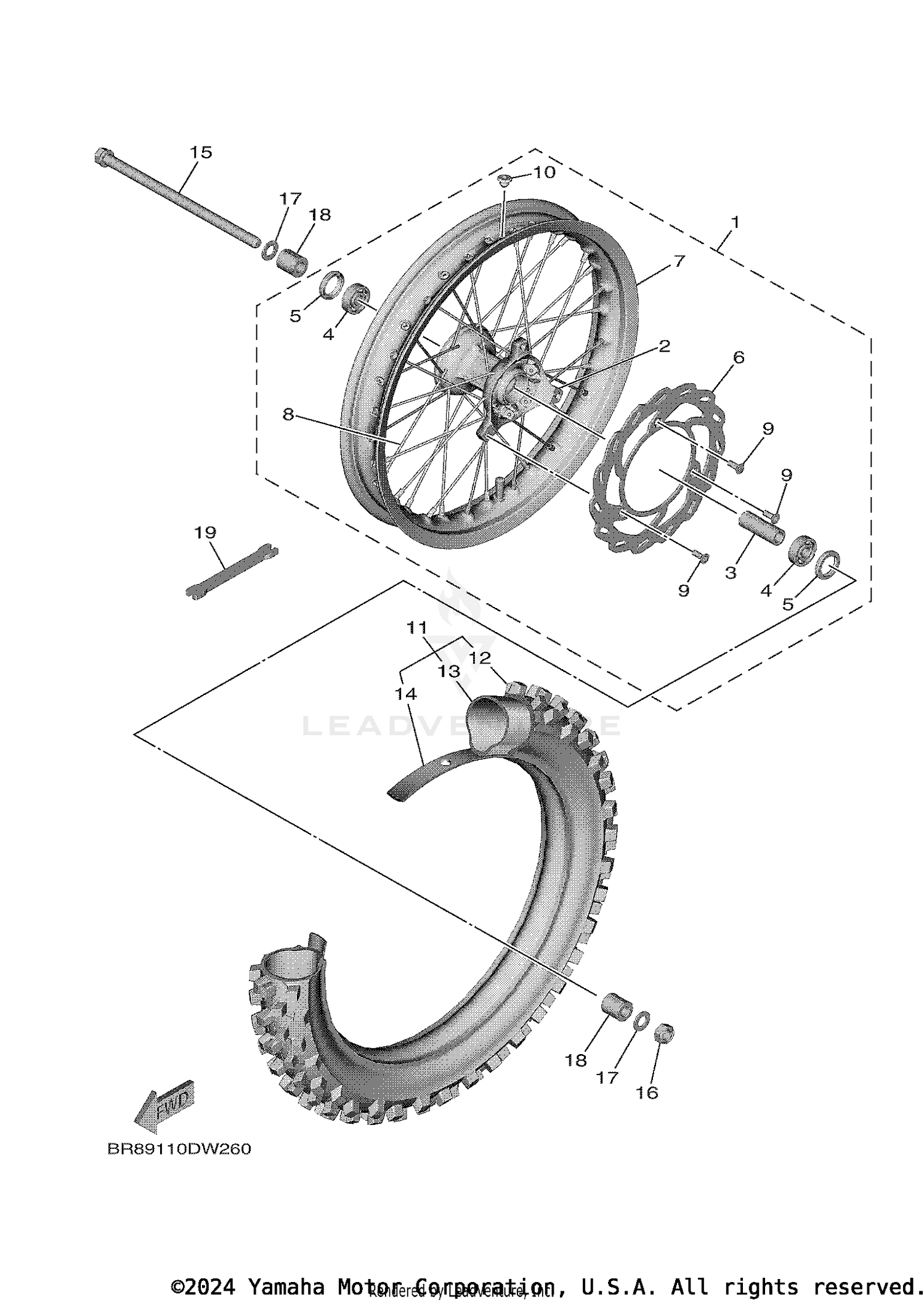

FRONT WHEEL
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BR8-25102-00-00 | FRONT WHEEL ASSY BLU Price: $349.99 |
| 2 | 4ES-25111-01-00 | HUB, FRONT Price: $190.99 |
| 3 | BR8-25117-00-00 | SPACER, BEARING Price: $29.99 |
| 4 | 93306-20119-00 | BEARING This part replaces 93306-20103-00. Price: $36.99 |
| 5 | 93102-22087-00 | OIL SEAL Price: $13.49 |
| 6 | BR8-2582T-00-00 | DISC, BRAKE (LEFT) Price: $92.99 |
| 7 | 94416-14007-00 | RIM (1.60-14) Price: $269.99 |
| 8 | BR8-25104-00-00 | SPOKE SET, FRONT Price: $51.99 |
| 9 | 90151-06023-00 | SCREW, COUNTERSUNK This part replaces 90151-06024-00. Price: $9.49 |
| 10 | 90480-10068-00 | GROMMET This part replaces 90480-08608-00. Price: $9.49 |
| 11 | BR8-25108-01-00 | FRONT TIRE SET Price: $86.99 |
| 15 | 90105-12120-00 | BOLT, FLANGE Price: $19.49 |
| 16 | 90185-12010-00 | NUT, SELF-LOCKING Price: $9.49 |
| 17 | 90201-12055-00 | WASHER, PLATE Price: $9.49 |
| 18 | BR8-25183-00-00 | COLLAR, WHEEL Price: $17.49 |
