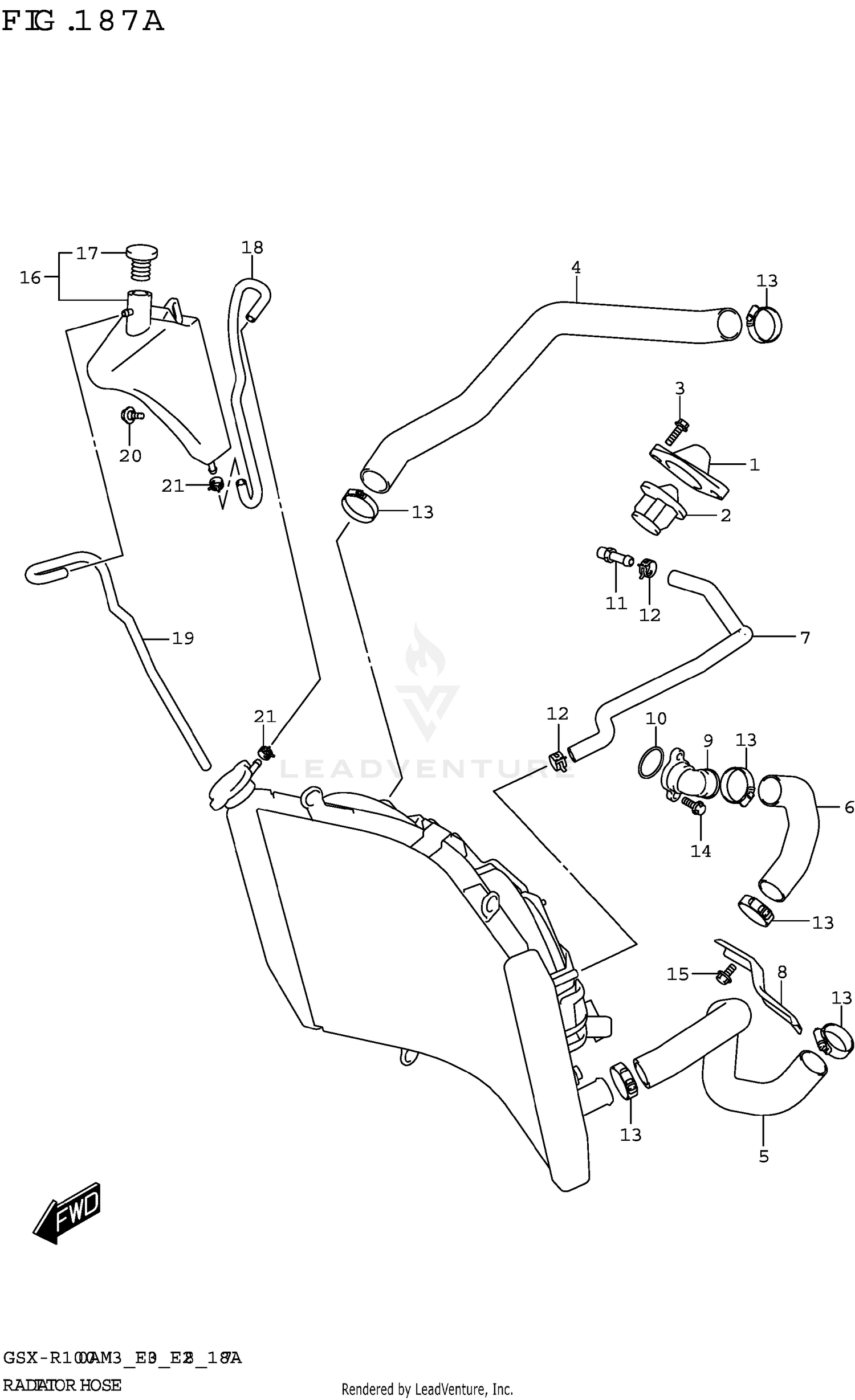

| Ref | Part Number | Description |
|---|
| 1 |
17661-37H00 |
COVER,THERMOSTAT Price: $39.25 |
| 2 |
17670-06G61 |
THERMOSTAT, WATER Price: $31.83 |
| 3 |
01547-0620A |
BOLT Price: $2.45 |
| 4 |
17851-17K00 |
HOSE,RDTR INLET Price: $36.88 |
| 5 |
17852-17K00 |
HOSE,RDTR OUTLET Price: $38.33 |
| 6 |
17853-17K00 |
HOSE,CYLINDER INLET Price: $16.79 |
| 7 |
17854-17K00 |
HOSE,WATER BYPASS Price: $29.81 |
| 8 |
17859-17K00 |
BRACKET,HOSE GUIDE Price: $29.23 |
| 9 |
17861-17K00 |
CONNECTOR,CYL WATER INLET Price: $47.63 |
| 10 |
09280-28005 |
O-RING (D:2.4,OD:27.7) Price: $2.79 |
| 11 |
09362-09011 |
UNION Price: $10.22 |
| 12 |
09401-12414 |
CLIP Price: $4.02 |
| 13 |
09402-35501 |
CLAMP Price: $9.01 |
| 14 |
01547-0616A |
BOLT Price: $2.45 |
| 15 |
01550-0612A |
BOLT Price: $2.37 |
| 16 |
17910-17K00 |
TANK ASSY,RESERVOIR Price: $83.57 |
| 18 |
17981-17K00 |
HOSE,RESERVOIR TANK INLET Price: $16.05 |
| 19 |
17982-47H10 |
HOSE,RSVR TANK OVFL Price: $14.29 |
| 20 |
09111-06085 |
BOLT (6X12) Price: $5.61 |
