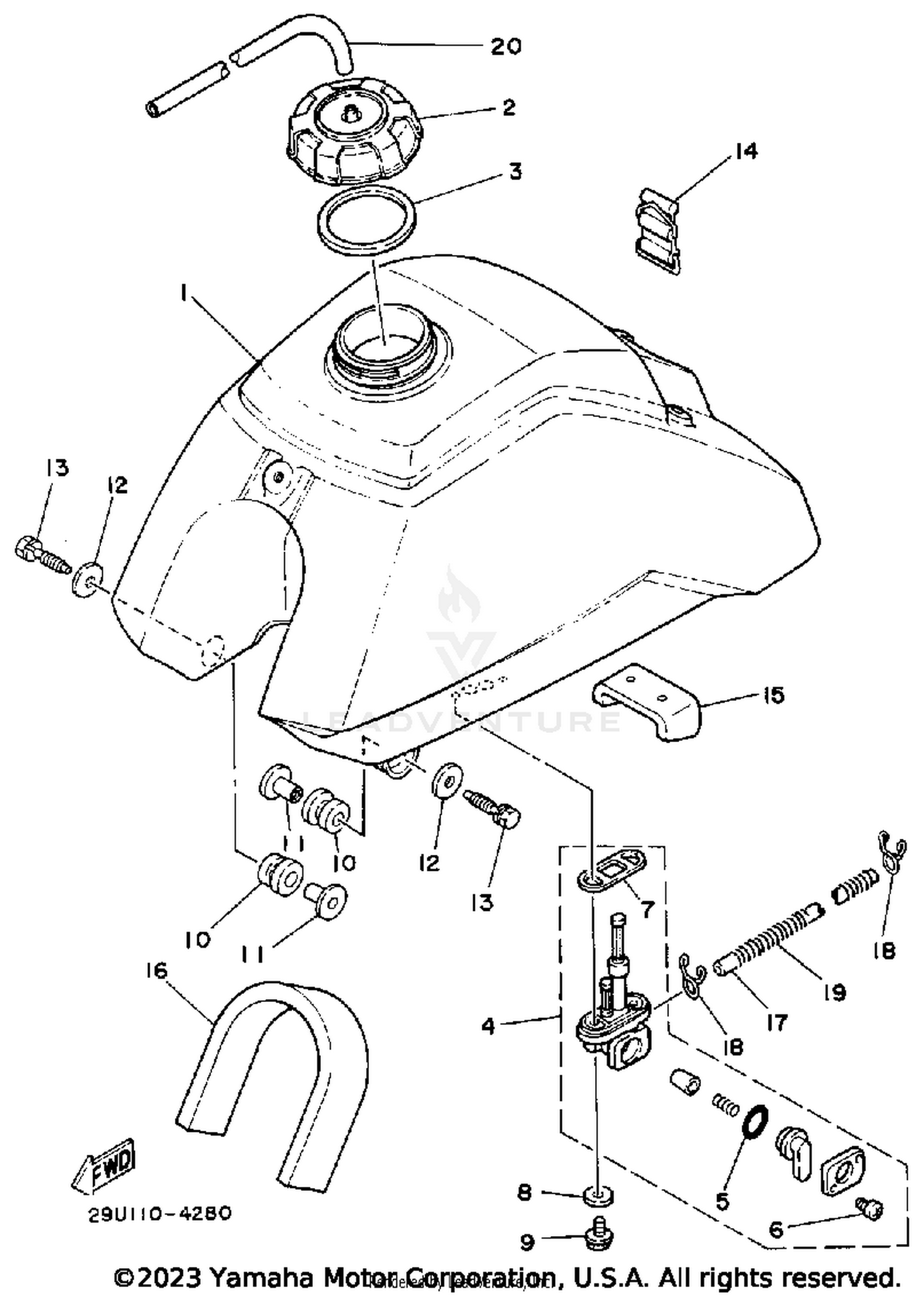

| Ref | Part Number | Description |
|---|
| 1 |
2FW-24110-00-00 |
FUEL TANK Price: $121.99 |
| 2 |
5MV-24610-00-00 |
CAP ASSY This part replaces 1UY-24610-00-00. Price: $63.99 |
| 3 |
3R9-24612-00-00 |
GASKET, CAP Price: $14.99 |
| 4 |
21V-24500-20-00 |
FUEL COCK ASSY 1 This part replaces 21V-24500-10-00. Price: $56.99 |
| 5 |
4X8-24534-00-00 |
SEAL, COCK Price: $14.49 |
| 6 |
98580-03008-00 |
SCREW, PAN HEAD (98501-03008-00 Price: $3.85 |
| 7 |
4X8-24512-00-00 |
O-RING Price: $9.49 |
| 8 |
90202-05187-00 |
WASHER, PLATE Price: $1.70 |
| 9 |
90149-06011-00 |
SCREW Price: $2.05 |
| 10 |
90480-18549-00 |
GROMMET This part replaces 90480-18354-00. Price: $11.49 |
| 11 |
90387-066H4-00 |
COLLAR Price: $9.49 |
| 12 |
90201-06697-00 |
WASHER, PLATE Price: $9.49 |
| 13 |
90119-06073-00 |
BOLT, WITH WASHER Price: $9.49 |
| 14 |
59V-24173-00-00 |
BAND, TANK FITTING 1 Price: $19.99 |
| 15 |
29U-24181-00-00 |
DAMPER, LOCATING 1 Price: $14.99 |
| 16 |
21V-24183-00-00 |
DAMPER,LOCATING 3 Price: $6.99 |
| 17 |
90445-116K9-00 |
HOSE (L400) This part replaces 90445-11717-00. Price: $26.99 |
| 18 |
90467-100A1-00 |
CLIP This part replaces 90467-10008-00. Price: $8.49 |
| 19 |
90501-08728-00 |
SPRING, COMPRESSION Price: $13.49 |
