Parts Catalog

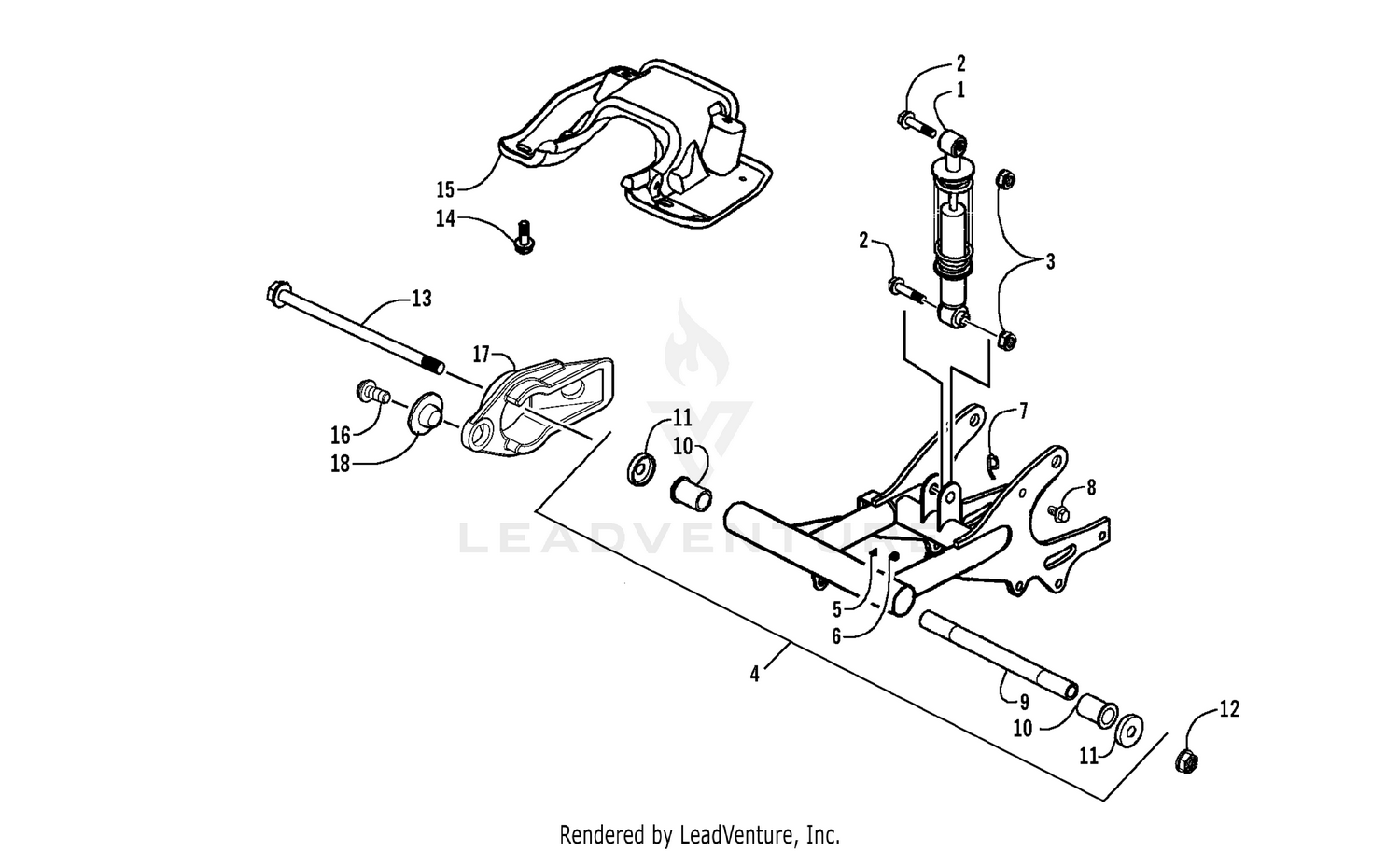

REAR SUSPENSION ASSEMBLY [302052]

Parts (16)

Ref	Part Number	Description
1	3306-740	CUSH ASSY RR (WHITE) Price: $320.95
2	3303-376	SCREW,CAP-HFH M10X1.25X40 Price: $2.34
3	3304-031	NUT U 10MM Price: $2.72
5	3303-394	Cap, Grease Fitting Price: $1.56
6	3303-393	Fitting, Grease Price: $7.70
7	3304-594	CLAMPER BRAKE HOSE Price: $4.23
8	3303-356	BOLT FLANGE 6*10 Price: $0.93
9	3303-189	COLLAR RR FORK DIST Price: $23.53
10	3303-191	BUSH REAR FORK Price: $17.09
11	3303-192	CAP RR FORK DUST SEAL Price: $5.56
12	3304-032	NUT FLANGE 14MM Price: $7.23
13	3303-150	BOLT REAR FORK [AXLE] Price: $19.97
14	3305-454	BOLT-WASH 6X16(G) Price: $1.23
15	3305-996	GUARD ASSY REAR FORK Price: $58.95
16	3304-690	SCREW, TAPPING- 6*12 Price: $2.34
17	3305-859	SLIDER,CHAIN Price: $23.53
