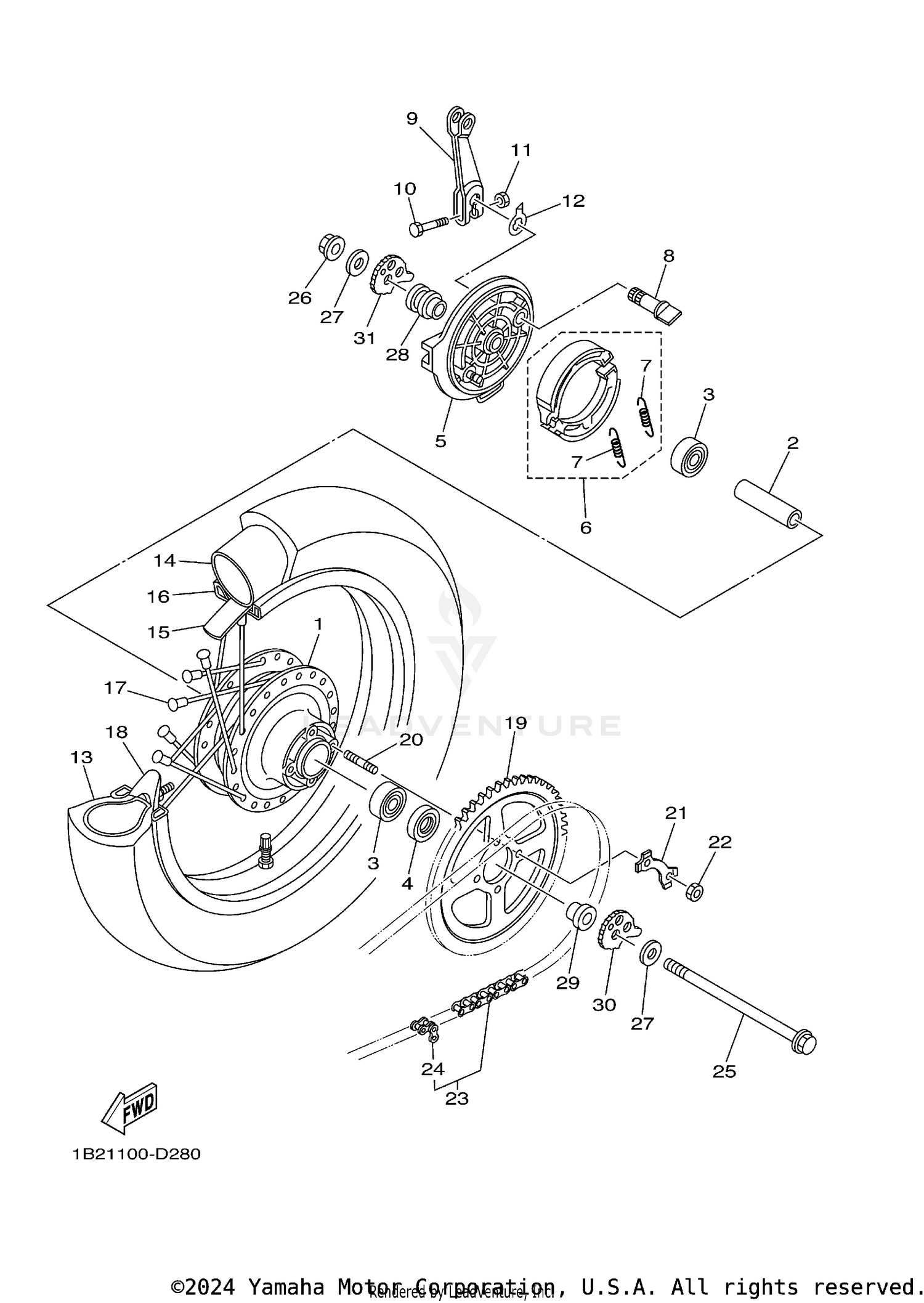

| Ref | Part Number | Description |
|---|
| 2 |
90560-12170-00 |
SPACER Price: $19.49 |
| 3 |
93306-301YY-00 |
BEARING Price: $25.99 |
| 4 |
93106-20033-00 |
OIL SEAL This part replaces 93106-20809-00. Price: $14.49 |
| 6 |
4KN-W253E-11-00 |
BRAKESHOE SET-2PCS Price: $27.99 |
| 7 |
90506-15260-00 |
SPRING, TENSION Price: $9.49 |
| 8 |
1B2-F5151-00-00 |
CAMSHAFT Price: $25.99 |
| 9 |
55K-25355-00-00 |
LEVER, CAMSHAFT This part replaces 5HH-F5355-01-00. Price: $44.99 |
| 10 |
97017-06030-00 |
BOLT,HEXAGON This part replaces 90101-06W00-00. Price: $3.90 |
| 11 |
95317-06600-00 |
NUT This part replaces 9530N-06600-00. Price: $3.85 |
| 12 |
2JX-2533A-00-00 |
PLATE, INDICATOR This part replaces 1B2-F533A-00-00. Price: $8.49 |
| 16 |
94416-16003-00 |
RIM (1.60-16) This part replaces 94416-16803-00. Price: $193.99 |
| 17 |
1B2-F5304-20-00 |
SPOKE SET, REAR This part replaces 1B2-F5304-10-00. Price: $64.99 |
| 18 |
1B2-F5394-00-00 |
SPACER, BEAD Price: $52.99 |
| 19 |
1B2-F5454-30-00 |
SPROCKET, DRIVEN ( This part replaces 1B2-F5454-21-00. Price: $78.99 |
| 20 |
90116-10013-00 |
BOLT, STUD Price: $8.49 |
| 21 |
5RM-F5412-00-00 |
WASHER Price: $2.95 |
| 22 |
90170-10206-00 |
NUT Price: $3.30 |
| 23 |
9Y582-51121-00 |
CHAIN This part replaces 94581-97121-00. Price: $124.99 |
| 24 |
94682-51001-00 |
JOINT, CHAIN This part replaces 94681-97001-00. Price: $7.99 |
| 25 |
1B2-F5381-10-00 |
AXLE, WHEEL Price: $28.99 |
| 26 |
95607-12200-00 |
NUT, SELF-LOCKING This part replaces 9560M-12200-00. Price: $6.49 |
| 27 |
90201-126A7-00 |
WASHER, PLATE Price: $10.49 |
| 28 |
1B2-F5383-00-00 |
COLLAR, WHEEL Price: $13.49 |
| 29 |
90387-127E0-00 |
COLLAR This part replaces 90387-12670-00. Price: $9.49 |
| 30 |
1B2-F5388-00-00 |
PULLER, CHAIN 1 Price: $9.49 |
