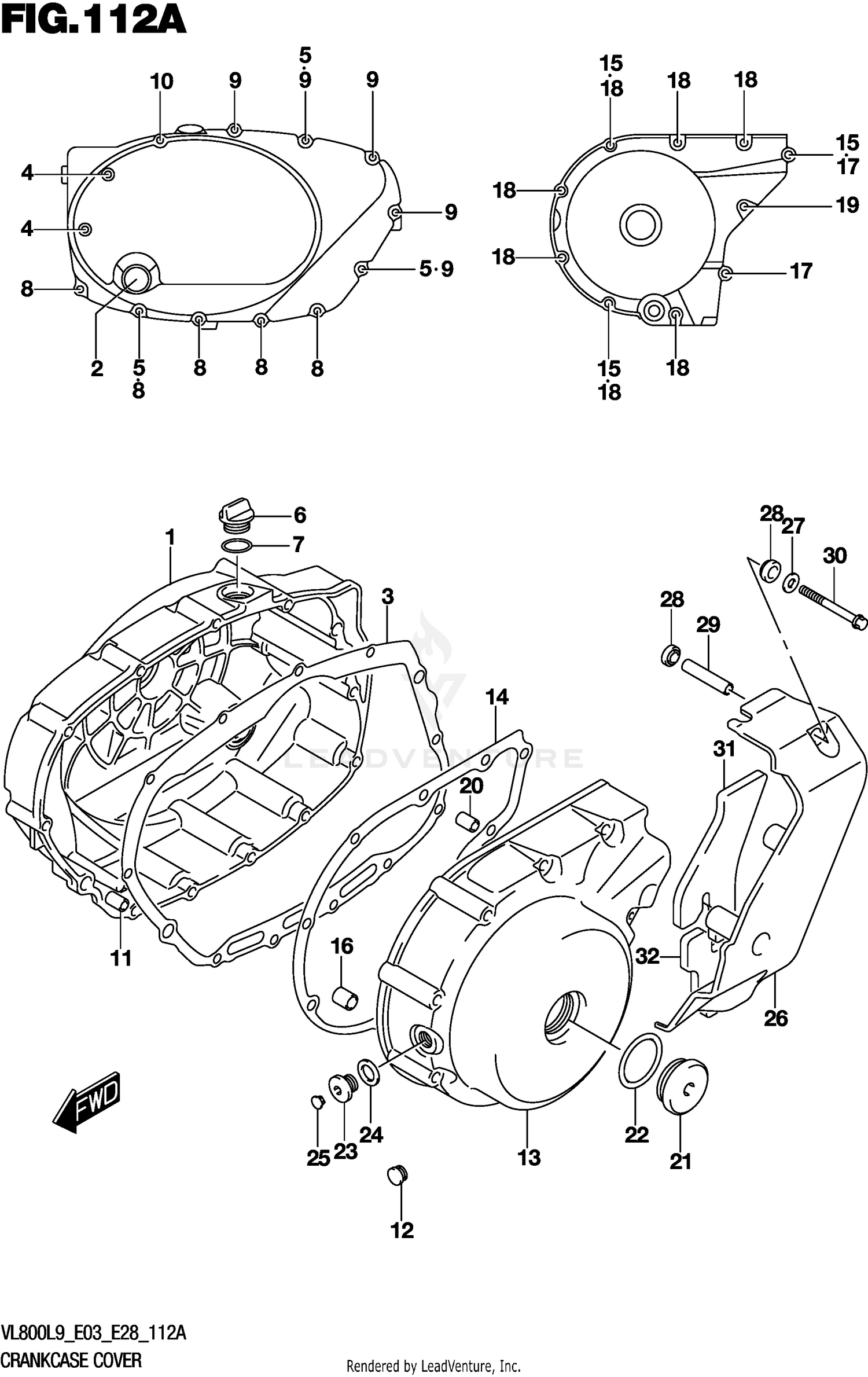

CRANKCASE COVER
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11340-41F00 | COVER,CLUTCH Price: $455.93 |
| 4 | 09103-06270 | BOLT (6X105) Price: $4.54 |
| 5 | 09168-06023 | GASKET (5.8X13X1.2) Price: $2.45 |
| 6 | 11971-25D00 | PLUG, ENGINE OIL FILLER Price: $6.31 |
| 7 | 09280-17003 | O-RING (D:3.1,ID:16.8) Price: $1.99 |
| 8 | 09103-06213 | BOLT (6X30) Price: $2.87 |
| 9 | 09103-06238 | BOLT (6X50) Price: $3.21 |
| 10 | 09103-06226 | BOLT (6X85) Price: $4.04 |
| 11 | 04211-09189 | PIN Price: $1.99 |
| 12 | 09250-08013 | CAP (OD:12) Price: $2.83 |
| 13 | 11351-41F10 | COVER,GENERATOR Price: $424.67 |
| 15 | 09168-06023 | GASKET (5.8X13X1.2) Price: $2.45 |
| 17 | 09103-06215 | BOLT (6X40) Price: $3.27 |
| 18 | 09103-06216 | BOLT (6X55) Price: $3.23 |
| 19 | 09103-06226 | BOLT (6X85) Price: $4.04 |
| 20 | 04211-09189 | PIN Price: $1.99 |
| 21 | 09259-36008 | PLUG (36X10) Price: $9.95 |
| 23 | 09248-14011 | PLUG (14X12) Price: $3.68 |
| 24 | 09168-14002 | GASKET (13.8X18.8X4.8) Price: $2.75 |
| 25 | 09250-08012 | CAP (OD:12) Price: $2.27 |
| 26 | 11361-41F00 | COVER,SECONDARY DRIVE UNIT Price: $241.63 |
| 27 | 09160-06125 | WASHER (6.5X14X1.6) Price: $2.30 |
| 28 | 09161-09005 | WASHER (8.7X16X5) Price: $2.72 |
| 29 | 09180-06280 | SPACER (6X55) Price: $5.33 |
| 30 | 09103-06216 | BOLT (6X55) Price: $3.23 |
| 31 | 11362-39G00 | CUSHION,SEC DR UNIT COVER NO. Price: $16.20 |
