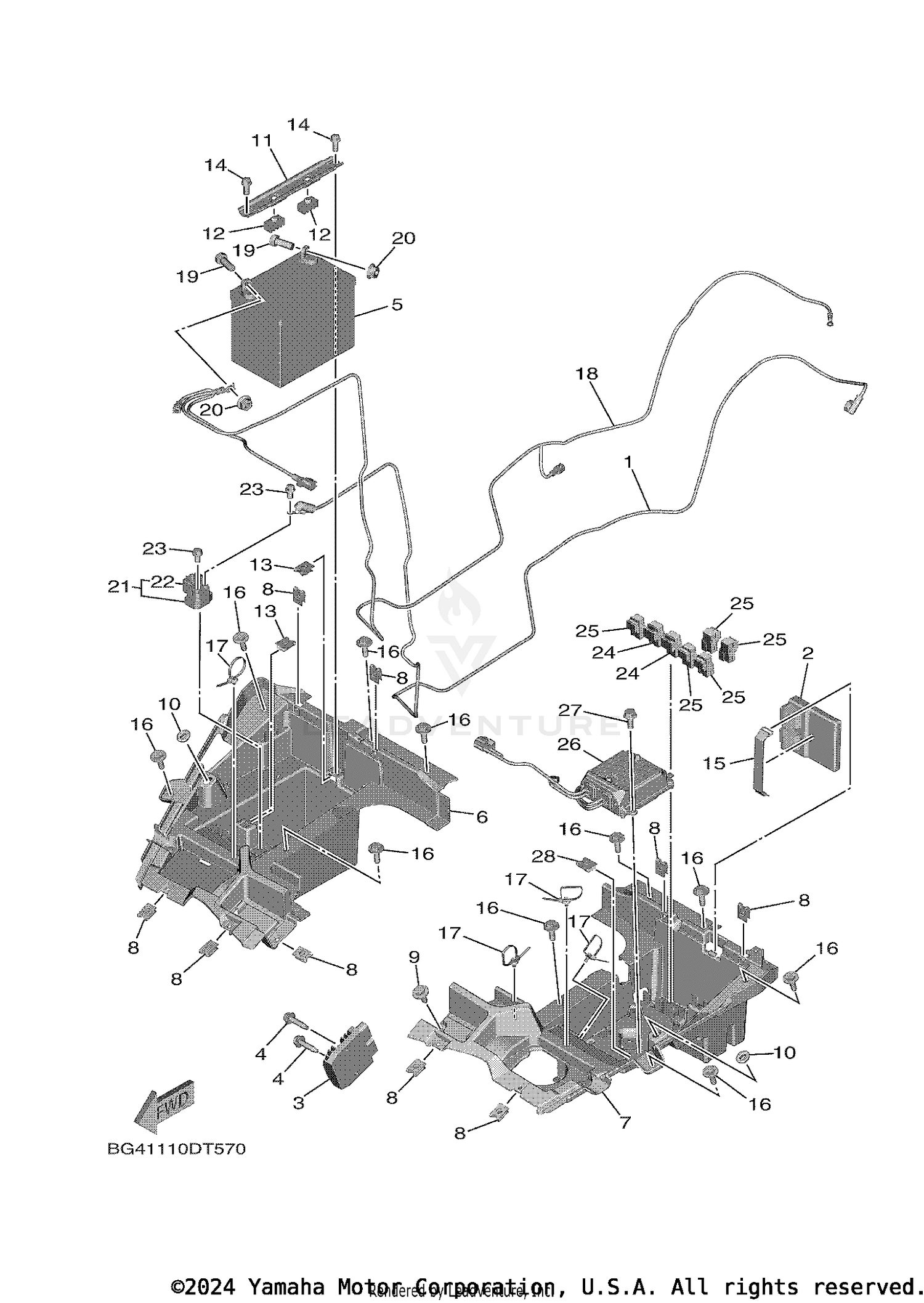

| Ref | Part Number | Description |
|---|
| 1 |
BG4-81815-00-00 |
CORD, STARTER MOTOR Price: $116.99 |
| 2 |
B8K-8591A-00-00 |
ENGINE CONTROL UNIT Price: $1,572.99 |
| 3 |
1D7-81960-01-00 |
RECTIFIER & REGULATOR ASSY Price: $349.99 |
| 4 |
90105-06833-00 |
BOLT, FLANGE Price: $2.30 |
| 5 |
11U-1LD00-00-00 |
BATTERY ASSY (GS U1L-11) This part replaces 5UG-H2100-10-00. Price: $139.95 |
| 6 |
BG4-H212B-00-00 |
BOX, BATTERY 1 Price: $88.99 |
| 7 |
BG4-H2565-00-00 |
PANEL, SWITCH Price: $100.99 |
| 8 |
90183-060A6-00 |
NUT, SPRING Price: $5.99 |
| 9 |
90119-06226-00 |
BOLT, WITH WASHER Price: $2.80 |
| 10 |
90480-01558-00 |
GROMMET Price: $4.65 |
| 11 |
2HC-H2128-00-00 |
BRACKET, BATTERY Price: $11.49 |
| 12 |
3C3-24741-00-00 |
PAD, SEAT Price: $10.99 |
| 13 |
90183-060A6-00 |
NUT, SPRING Price: $5.99 |
| 14 |
95022-06014-00 |
BOLT, FLANGE Price: $3.40 |
| 15 |
5JJ-82131-00-00 |
BAND, BATTERY Price: $14.49 |
| 16 |
JW1-K6179-01-00 |
BOLT, SPECIAL 1 This part replaces 90119-06868-00. Price: $1.75 |
| 17 |
1NS-F1338-00-00 |
CLAMP Price: $3.60 |
| 18 |
BG4-82116-00-00 |
WIRE, MINUS LEAD Price: $141.99 |
| 19 |
97080-08020-00 |
BOLT Price: $2.91 |
| 20 |
90179-08015-00 |
NUT Price: $10.49 |
| 21 |
5B4-81940-00-00 |
STARTER RELAY ASSY (RC19-080A) Price: $110.99 |
| 22 |
42X-82151-00-00 |
FUSE (10A-BL) Price: $4.70 |
| 23 |
95022-06008-00 |
BOLT, FLANGE Price: $9.49 |
| 24 |
5DM-81950-01-00 |
RELAY ASSY (G8HN-1C4T-DJ-Y52) Price: $31.99 |
| 25 |
8DM-81950-11-00 |
RELAY ASSY (8DM-11) Price: $33.99 |
| 26 |
BAR-859A0-00-00 |
POWER STRG. CONT. UN Price: $995.99 |
| 27 |
95817-06016-00 |
BOLT, FLANGE This part replaces 95812-06016-00. Price: $1.95 |
