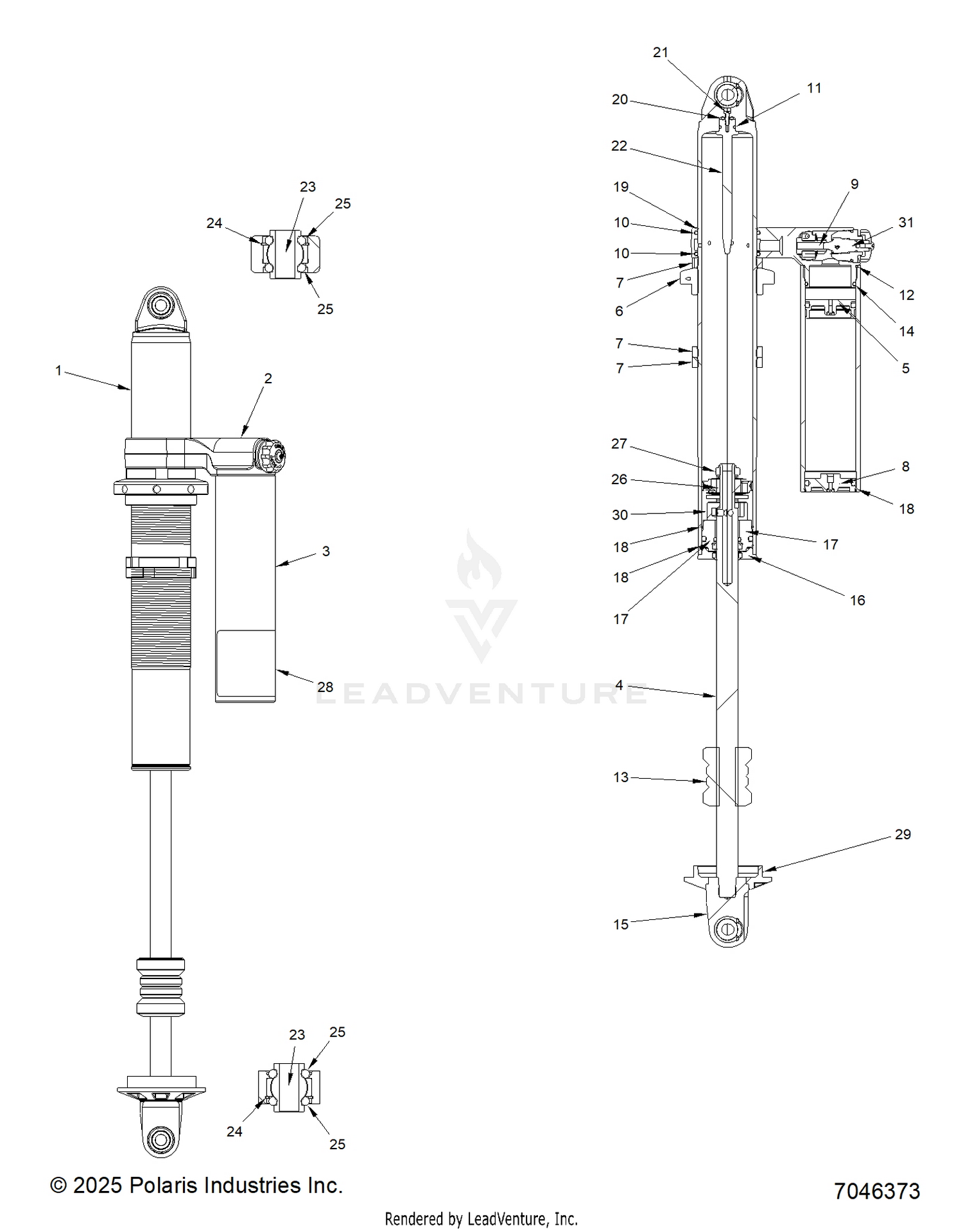

| Ref | Part Number | Description |
|---|
| 1 |
------- |
BODY-SHOCK,2.5",19.265L |
| 2 |
------- |
BRIDGE,2.5 WER ADJUSTER,FORGED,EXT |
| 4 |
------- |
SHAFT-NEEDLE .875 X 18.162L |
| 5 |
------- |
ASM-IFP,2.5',TYP III CLR |
| 8 |
------- |
END CAP ASSY-2.5,WIRE RING BULIT IN CHARGE PORT |
| 9 |
------- |
VALVE,CHECK ASSEMBLY |
| 10 |
------- |
O-RING 2-230 |
| 11 |
------- |
O-RING 2-112 |
| 12 |
------- |
O-RING 2-033 |
| 14 |
------- |
O-RING 2.225 |
| 15 |
------- |
SHAFT LOOP, 1.0935 BORE,BRNG STEP,2.930L |
| 16 |
------- |
WIPER CAP ASM. 2.5PRESS FIT |
| 17 |
------- |
ASM. SEAL HEAD 2.5 X .875 PI |
| 18 |
------- |
ID RETAINING RING2.5" |
| 19 |
------- |
OD RETAINING RING,2.5" |
| 20 |
------- |
O-RING 2.202 |
| 22 |
------- |
NEEDLE,1 PIECE PRESS IN |
| 23 |
------- |
BEARING-SPHRL,12MM16.8DEG |
| 24 |
------- |
RETAINING RING FOR 1.0625 BORE |
| 25 |
------- |
O-RING 2-312 |
| 26 |
------- |
ASM-PSTN,2.5",7046373 |
| 27 |
------- |
NUT,FLEXLOC,THIN, 5/8-18 |
| 28 |
------- |
DECAL-SHOCK,7046373 |
| 29 |
1501211 |
RETAINER-SPRING,2.5" Price: $54.99 |
| 30 |
------- |
CHECKVALVE-3PORT,.72L,2X.086 |
