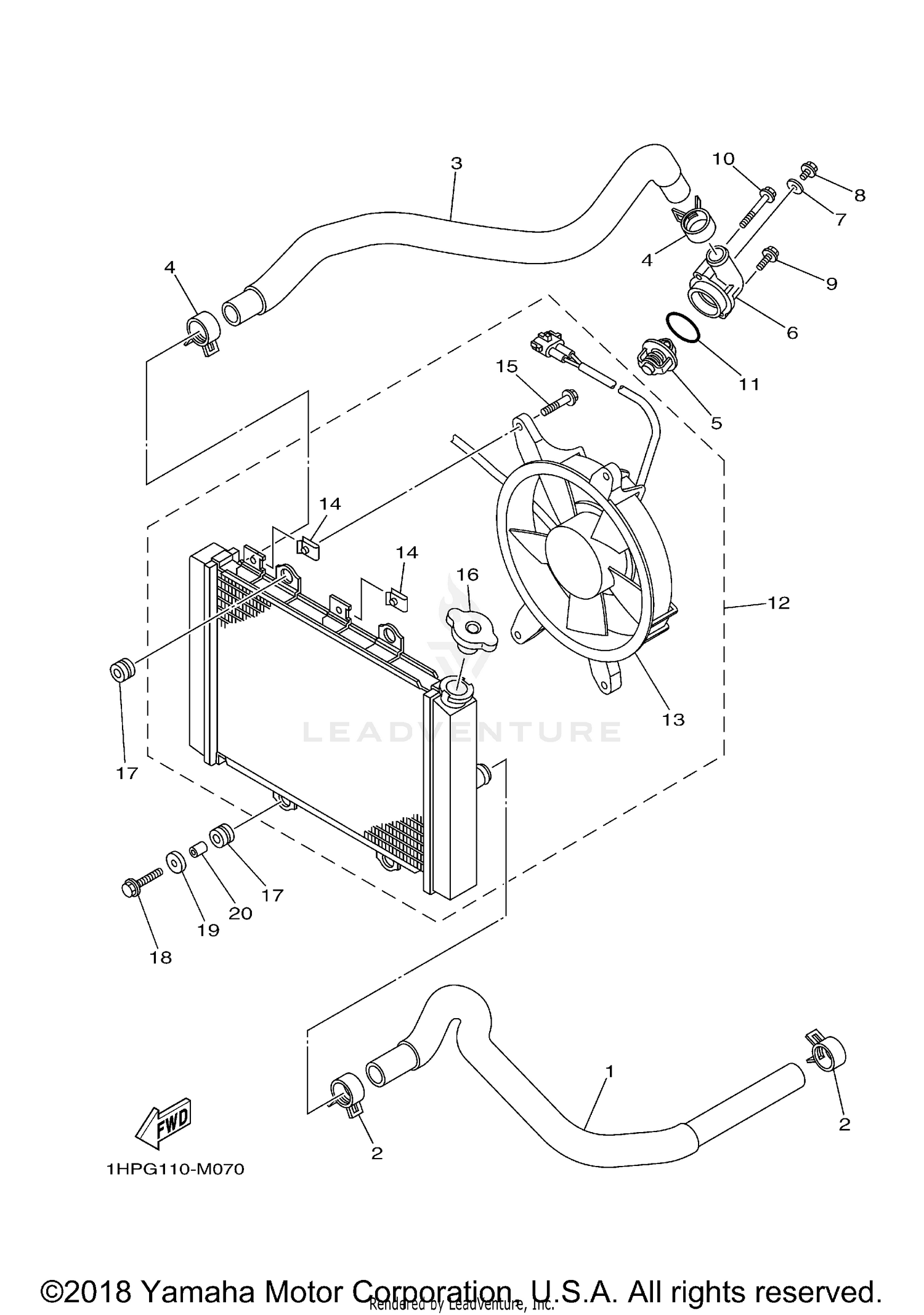

RADIATOR HOSE
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1HP-E2576-00-00 | HOSE 1 Price: $46.99 |
| 2 | 90467-26189-00 | CLIP Price: $8.49 |
| 3 | 1HP-E2578-00-00 | HOSE 3 Price: $33.99 |
| 4 | 90467-26189-00 | CLIP Price: $8.49 |
| 5 | 1XD-12411-01-00 | THERMOSTAT This part replaces 1XD-12411-00-00. Price: $41.99 |
| 6 | 1S3-12413-00-00 | COVER, THERMOSTAT Price: $52.99 |
| 7 | 90430-06014-00 | GASKET Price: $8.60 |
| 8 | 95022-06010-00 | BOLT, FLANGE Price: $6.49 |
| 9 | 95022-06020-00 | BOLT, FLANGE Price: $3.90 |
| 10 | 95022-06045-00 | BOLT, FLANGE Price: $4.65 |
| 11 | 93210-41042-00 | O-RING Price: $8.49 |
| 12 | B16-E2460-03-00 | RADIATOR ASSY This part replaces B16-E2460-00-00. Price: $287.99 |
| 13 | B16-E2405-01-00 | BLOWER ASSY This part replaces B16-E2405-00-00. Price: $232.99 |
| 14 | 1HP-E2535-00-00 | NUT SPRING Price: $5.99 |
| 15 | 1HP-E2675-00-00 | BOLT, BLOWER HOLDING Price: $5.49 |
| 16 | 1XD-E2462-00-00 | CAP, RADIATOR Price: $16.49 |
| 17 | 90480-12475-00 | GROMMET This part replaces 90480-15235-00. Price: $9.49 |
| 18 | 95817-06020-00 | BOLT, FLANGE This part replaces 95812-06020-00. Price: $3.50 |
| 19 | 90209-06012-00 | WASHER Price: $6.49 |
