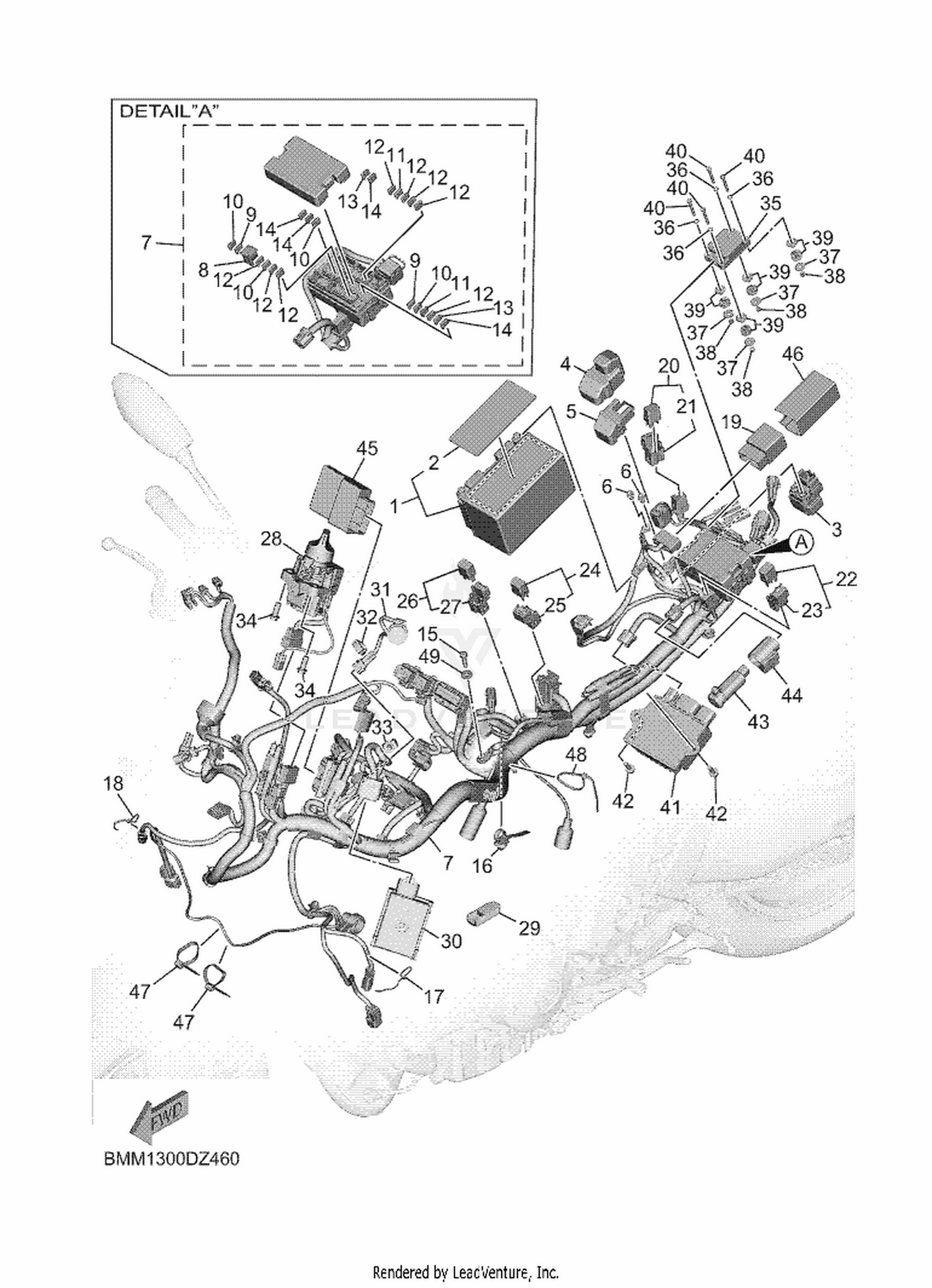

46 ELECTRICAL 1
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BME-82110-00 | BATTERY ASSY (YUASA YTZ10S) Price: Call Us |
| 3 | B7N-81940-00 | STARTER RELAY ASSY Price: Call Us |
| 4 | BME-81942-00 | COVER Price: Call Us |
| 5 | 5SL-82119-30 | COVER, LEAD WIRE Price: Call Us |
| 6 | 90105-06230 | BOLT, FLANGE Price: Call Us |
| 7 | BSD-82590-00 | WIRE HARNESS ASSY Price: Call Us |
| 15 | 91317-06020 | BOLT Price: Call Us |
| 16 | 90464-25009 | CLAMP Price: Call Us |
| 17 | 90465-10098 | CLAMP Price: Call Us |
| 18 | 90465-10098 | CLAMP Price: Call Us |
| 19 | 5VK-81950-53 | RELAY ASSY (G8R-30Y-W5) Price: Call Us |
| 20 | 1TP-81950-00 | RELAY ASSY (1TP-00) Price: Call Us |
| 22 | 1TP-81950-00 | RELAY ASSY (1TP-00) Price: Call Us |
| 24 | 1TP-81950-00 | RELAY ASSY (1TP-00) Price: Call Us |
| 26 | 1TP-81950-00 | RELAY ASSY (1TP-00) Price: Call Us |
| 28 | BMM-82510-00 | MAIN SWITCH ASSY Price: Call Us |
| 29 | BMM-86261-00 | XMTR. COMP. Price: Call Us |
| 30 | BMM-86265-00 | RECEIVER COMPLETE Price: Call Us |
| 31 | 2DF-83383-00 | BUZZER Price: Call Us |
| 32 | 90464-16003 | CLAMP Price: Call Us |
| 33 | 90464-12018 | CLAMP Price: Call Us |
| 34 | 90105-081A1 | BOLT, WASHER BASED Price: Call Us |
| 35 | BME-8593A-00 | INERTIAL MEASURE, UNIT ASSY Price: Call Us |
| 37 | 90201-04034 | WASHER, PLATE Price: Call Us |
| 38 | 95607-04100 | NUT, U Price: Call Us |
| 39 | B7N-W8A8D-00 | GROMMET AND COLLAR SET Price: Call Us |
| 40 | 91317-04030 | BOLT,HEX.SOCKET HEAD Price: Call Us |
| 41 | BME-81963-00 | GENERATOR CONTROL UNIT Price: Call Us |
| 42 | 95D37-06016 | BOLT, FLANGE DEEP RECESS Price: Call Us |
| 43 | BME-821E0-00 | USB ASSY Price: Call Us |
| 44 | BME-82591-00 | BAND Price: Call Us |
| 45 | BMM-85903-00 | BODY CONT,MODULE ASSY Price: Call Us |
| 46 | 1WS-8246B-00 | COVER 1 Price: Call Us |
| 48 | 1UA-82591-00 | BAND Price: Call Us |
