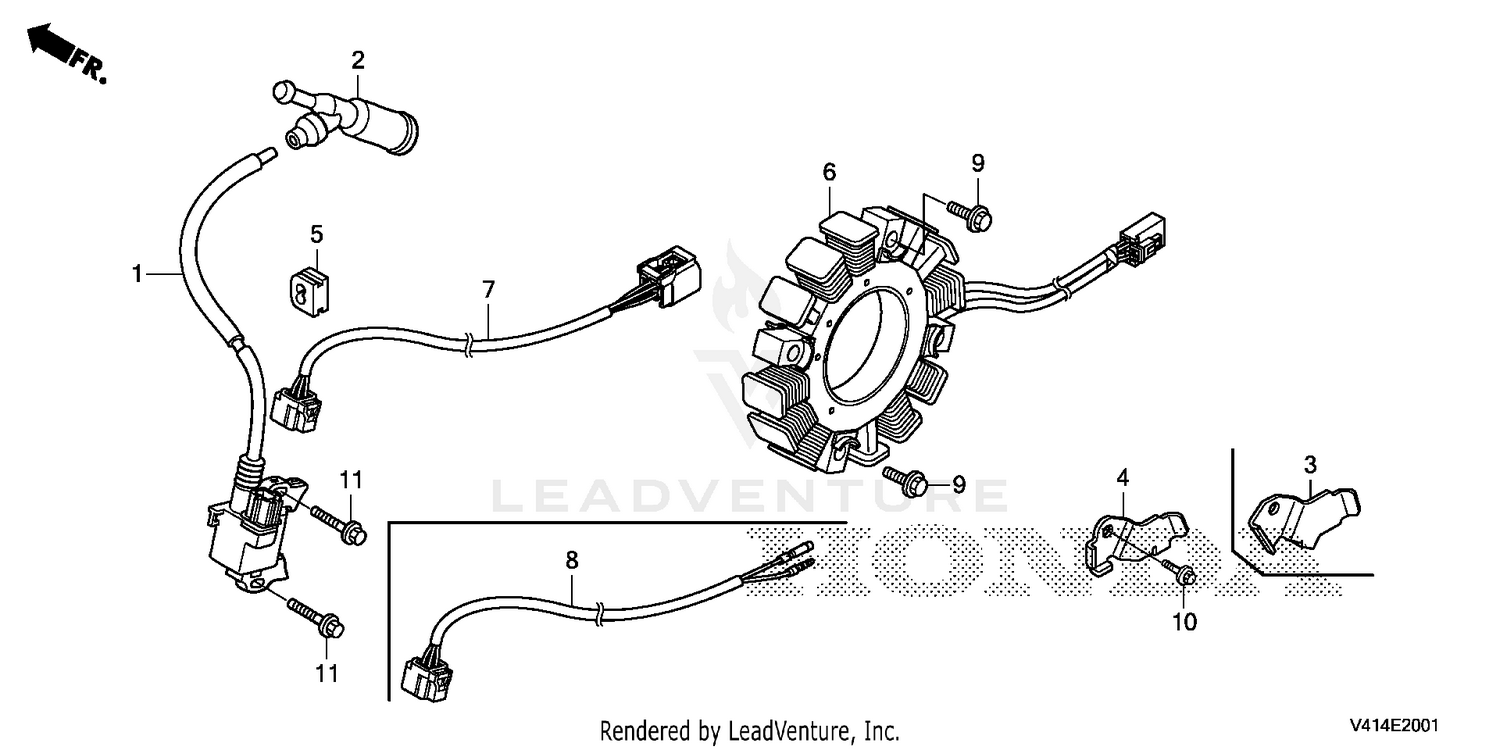

| Ref | Part Number | Description |
|---|
| 1 |
30500-Z1D-H01 |
COIL ASSY., IGNITION Price: $74.33 |
| 2 |
30700-Z1C-813 |
SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR (NGK Y-EZD) Price: $6.24 |
| 4 |
31511-Z1D-000 |
CLAMP, WIRE Price: $1.84 |
| 5 |
31512-ZE2-000 |
GROMMET, WIRE (Honda Code 2026557). Price: $3.94 |
| 6 |
31630-Z0V-H51 |
COIL ASSY., LAMP Price: $78.68 |
| 8 |
32110-Z1D-H70 |
WIRE HARNESS ASSY., ENGINE Price: $13.22 |
| 9 |
90031-ZE1-000 |
BOLT, FLANGE (6X32) (Honda Code 2092971). Price: $3.62 |
| 10 |
90013-883-000 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845). Price: $1.94 |
