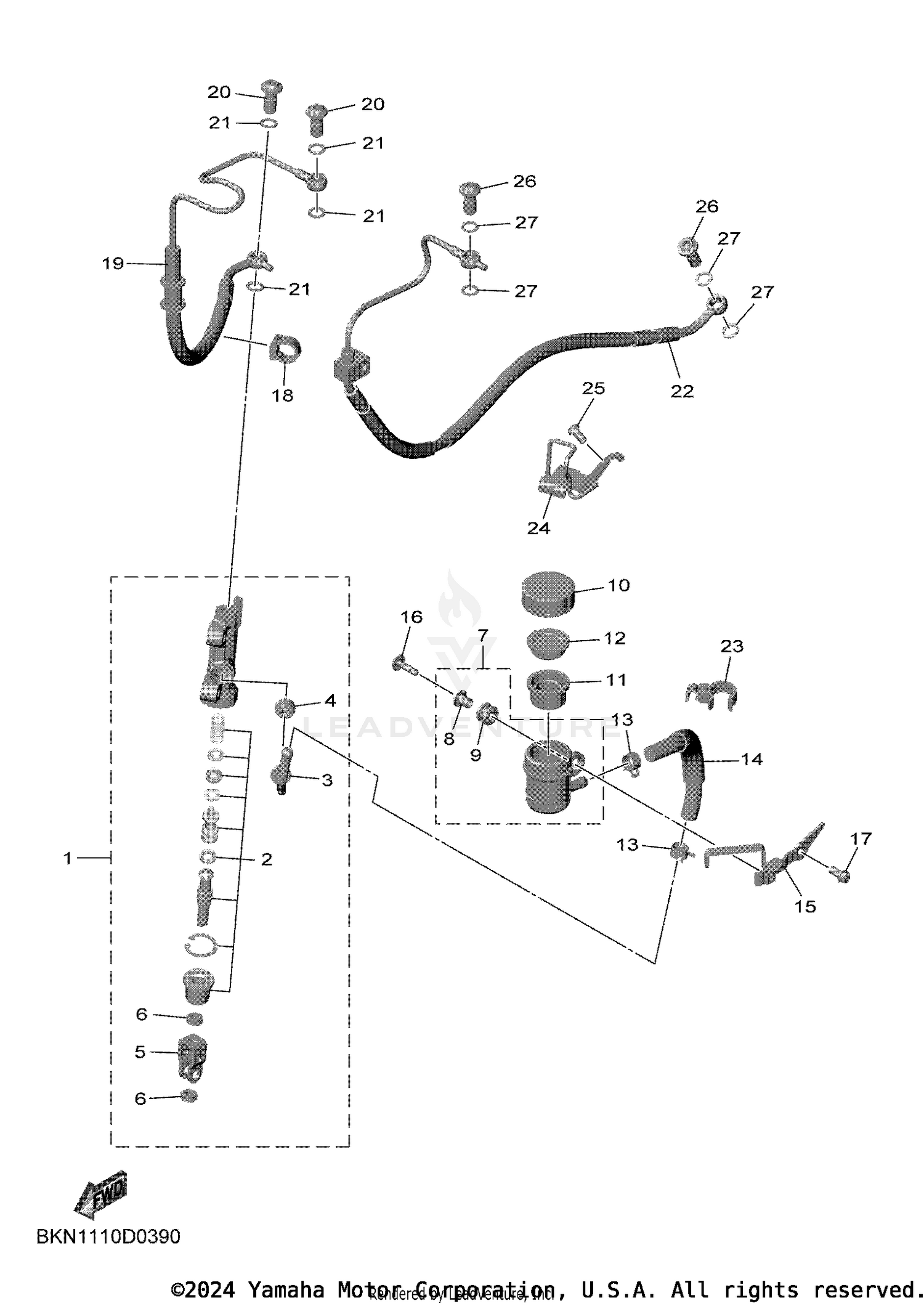

| Ref | Part Number | Description |
|---|
| 1 |
BEA-2583V-01-00 |
RR. MASTER CYLINDER ASSY. Price: $140.99 |
| 2 |
5VX-25808-51-00 |
CYLINDER KIT, MASTER This part replaces 56P-25808-50-00. Price: $103.99 |
| 4 |
4BP-2585F-01-00 |
O-RING Price: $11.99 |
| 5 |
4BP-27222-02-00 |
JOINT Price: $32.99 |
| 6 |
90170-08010-00 |
NUT Price: $9.49 |
| 7 |
BAM-25894-50-00 |
TANK, RESERVOIR Price: $69.99 |
| 8 |
90387-05028-00 |
COLLAR Price: $6.49 |
| 9 |
2C0-26326-00-00 |
GROMMET Price: $7.49 |
| 10 |
2C0-25852-00-00 |
CAP, RESERVOIR Price: $8.49 |
| 11 |
2VN-25854-00-00 |
DIAPHRAGM, RESERVOIR Price: $26.99 |
| 12 |
2VN-25855-00-00 |
BUSH, DIAPHRAGM Price: $11.99 |
| 13 |
90467-12085-00 |
CLIP Price: $11.49 |
| 14 |
BKN-25895-50-00 |
HOSE, RESERVOIR Price: $10.49 |
| 15 |
BKN-2582E-00-00 |
HOLDER, RESERVE TANK Price: $18.99 |
| 16 |
90111-05065-00 |
BOLT,HEX. SOCKET BUTTON Price: $1.75 |
| 17 |
95022-06012-00 |
BOLT, FLANGE This part replaces 90105-06081-00. Price: $3.55 |
| 18 |
90464-16003-00 |
CLAMP Price: $7.60 |
| 19 |
BKN-2581J-00-00 |
HOSE, BRAKE 4 Price: $82.99 |
| 20 |
90401-10172-00 |
BOLT, UNION Price: $6.49 |
| 21 |
90430-10005-00 |
GASKET Price: $9.49 |
| 22 |
BKN-2581K-00-00 |
HOSE, BRAKE 5 Price: $122.99 |
| 23 |
90464-18013-00 |
CLAMP Price: $3.40 |
| 24 |
BME-27267-00-00 |
GUIDE, WIRE Price: $27.99 |
| 25 |
92017-06012-00 |
BOLT, BUTTON HEAD This part replaces 90149-06233-00. Price: $2.65 |
| 26 |
90401-10172-00 |
BOLT, UNION Price: $6.49 |
