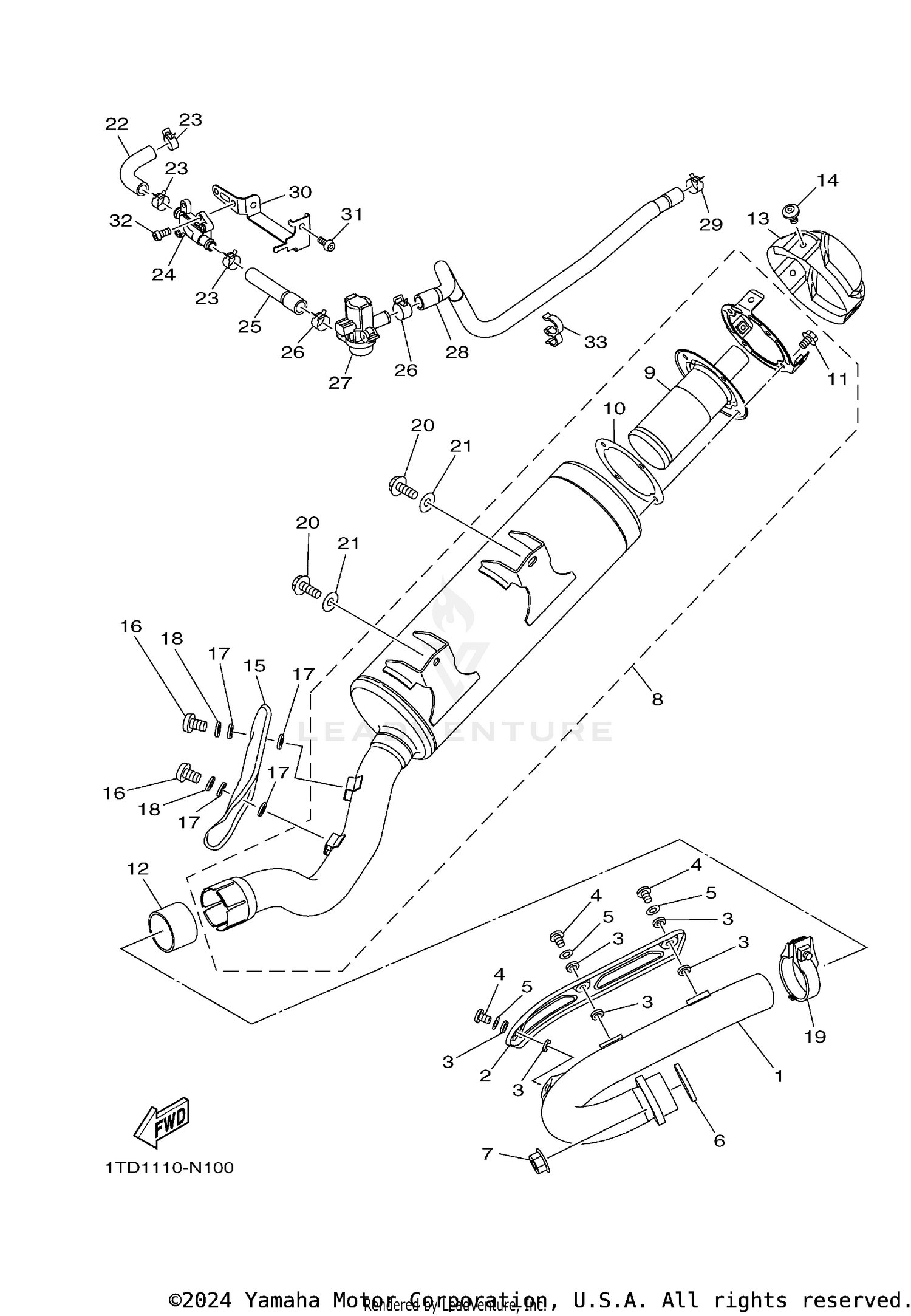

| Ref | Part Number | Description |
|---|
| 1 |
18P-14611-01-00 |
PIPE, EXHAUST 1 Price: $317.99 |
| 2 |
18P-14628-00-00 |
PROTECTOR, EXHAUST PIPE Price: $45.99 |
| 3 |
90201-05015-00 |
WASHER, PLATE Price: $9.49 |
| 4 |
98980-06010-00 |
SCREW, BIND Price: $10.49 |
| 5 |
92990-06200-00 |
WASHER, PLAIN Price: $1.00 |
| 6 |
3VD-14613-01-00 |
GASKET, EXHAUST PIPE Price: $12.99 |
| 7 |
95702-08500-00 |
NUT, WITH WASHER Price: $1.05 |
| 8 |
1TD-E4703-00-00 |
MUFFLER COMP. 1 Price: $362.99 |
| 9 |
1TD-E4780-00-00 |
SPARK ARRESTER ASSY Price: $66.99 |
| 10 |
2BG-E4755-00-00 |
GASKET, SILENCER Price: $23.99 |
| 11 |
95022-06012-00 |
BOLT, FLANGE Price: $3.55 |
| 12 |
1TD-E4714-00-00 |
GASKET, MUFFLER Price: $43.99 |
| 13 |
1TD-E4787-00-00 |
CAP, SILENCER Price: $77.99 |
| 14 |
90149-06298-00 |
SCREW Price: $6.49 |
| 15 |
1TD-E4718-00-00 |
PROTECTOR, MUFFLER 1 Price: $30.99 |
| 16 |
98980-06010-00 |
SCREW, BIND This part replaces 98902-06010-00. Price: $10.49 |
| 17 |
90201-05017-00 |
WASHER, PLATE Price: $9.49 |
| 18 |
92990-06200-00 |
WASHER, PLAIN This part replaces 92902-06200-00. Price: $1.00 |
| 19 |
5BE-14788-00-00 |
BAND, SILENCER Price: $38.99 |
| 20 |
90105-08129-00 |
BOLT, FLANGE Price: $5.49 |
| 21 |
90201-08048-00 |
WASHER, PLATE Price: $6.49 |
| 22 |
1TD-14881-00-00 |
HOSE, BEND 1 Price: $22.99 |
| 23 |
90467-16181-00 |
CLIP This part replaces 90467-16063-00. Price: $8.49 |
| 24 |
5GD-14803-00-00 |
AIR INDUCTION SYSTEM ASSY Price: $51.99 |
| 25 |
1TD-E4882-00-00 |
HOSE, BEND 2 Price: $1.65 |
| 26 |
90467-170A0-00 |
CLIP Price: $3.49 |
| 27 |
1TD-14840-00-00 |
AIR CUT VALVE ASSY Price: $95.99 |
| 28 |
1TD-14883-00-00 |
HOSE, BEND 3 Price: $49.99 |
| 29 |
90467-17128-00 |
CLIP This part replaces 90467-17089-00. Price: $9.49 |
| 30 |
1TD-F117A-00-00 |
STAY Price: $3.60 |
| 31 |
92012-06012-00 |
BOLT, BUTTON HEAD Price: $4.70 |
| 32 |
92012-06012-00 |
BOLT, BUTTON HEAD Price: $4.70 |
