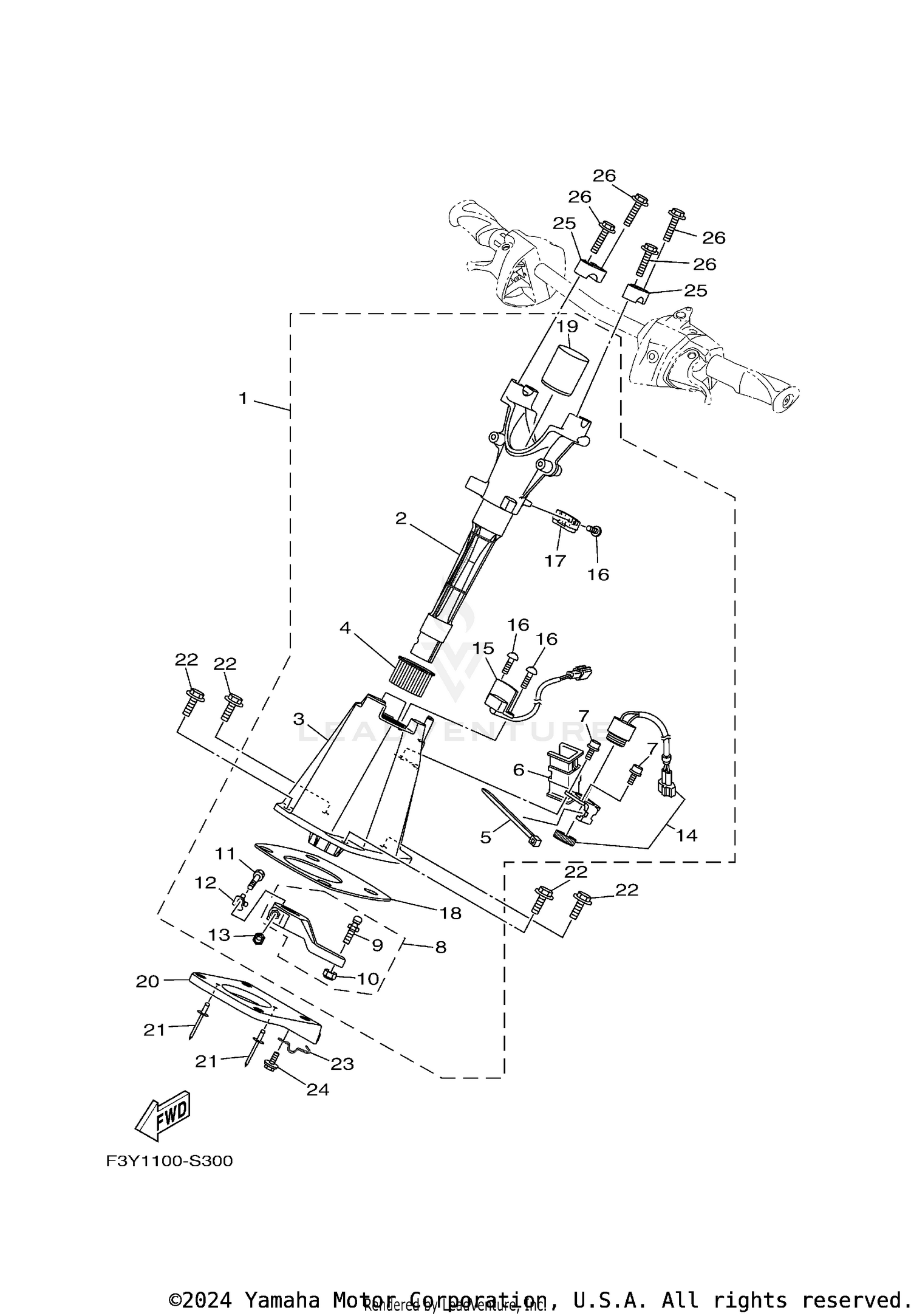

| Ref | Part Number | Description |
|---|
| 1 |
F3Y-61400-04-00 |
STEERING MASTER ASSY This part replaces F3Y-61400-00-00. Price: $395.99 |
| 2 |
F3Y-6152D-00-00 |
SHAFT Price: $178.49 |
| 3 |
F2X-6152M-02-00 |
HOUSING ASSY This part replaces F2X-6152M-00-00. Price: $151.99 |
| 4 |
F1K-6134M-00-00 |
BUSH Price: $7.49 |
| 5 |
1UA-82591-00-00 |
BAND This part replaces 703-82591-00-00. Price: $5.49 |
| 6 |
F2X-6146H-00-00 |
SPACER, BRKT. Price: $19.99 |
| 7 |
F1B-613C1-10-00 |
SCREW This part replaces F1B-613C1-00-00. Price: $10.99 |
| 9 |
EU0-61461-02-00 |
STUD, JOINT BALL Price: $14.49 |
| 10 |
95720-06300-00 |
NUT, SELF-LOCKING Price: $1.99 |
| 11 |
F1K-61355-00-00 |
BOLT Price: $17.49 |
| 12 |
F1K-6142B-00-00 |
PLATE, RETAINING Price: $6.49 |
| 13 |
95720-08300-00 |
NUT, SELF-LOCKING Price: $4.49 |
| 14 |
F1S-68341-00-00 |
BUZZER Price: $114.49 |
| 16 |
F2X-613C1-00-00 |
SCREW Price: $1.99 |
| 17 |
F2X-6838C-01-00 |
MAGNET This part replaces F2X-6838C-00-00. Price: $26.49 |
| 18 |
F1K-6143C-00-00 |
SEAL, RUBBER Price: $42.99 |
| 19 |
F2X-61435-00-00 |
SEAL, PIPE 30 Price: $11.99 |
| 20 |
F3Y-U1467-00-00 |
BRACKET,STOPPER CABLE Price: $36.99 |
| 21 |
90267-489U2-00 |
RIVET, BLIND Price: $5.99 |
| 22 |
90119-08870-00 |
BOLT,WITH WASHER This part replaces 90119-08836-00. Price: $22.99 |
| 23 |
F1K-U1468-03-00 |
STOPPER, CABLE Price: $11.99 |
| 24 |
90119-06830-00 |
BOLT, WITH WASHER This part replaces 90119-069UH-00. Price: $1.60 |
| 25 |
EU0-23814-32-00 |
HOLDER, HANDLE UPPER This part replaces EU0-23814-31-00. Price: $20.99 |
