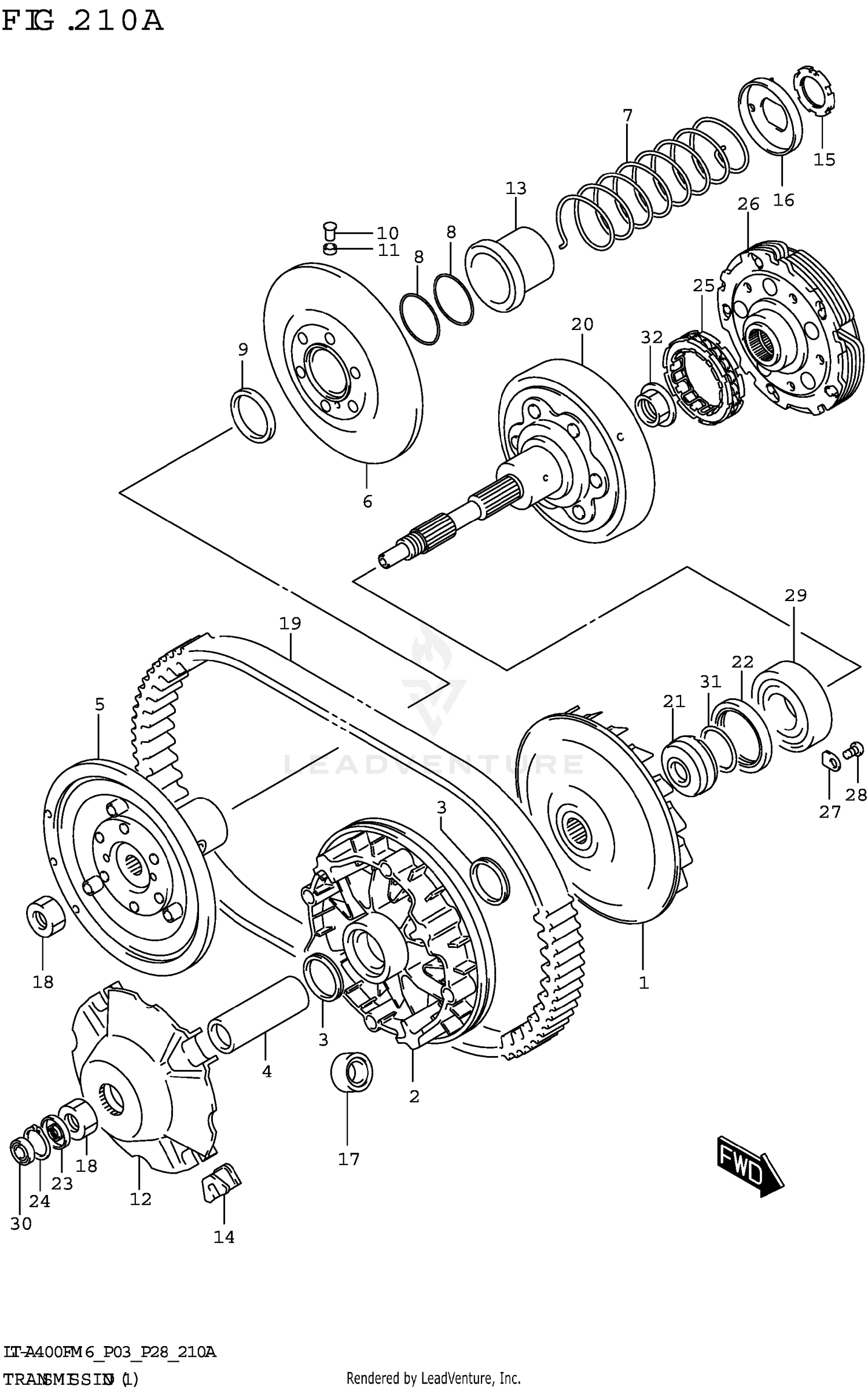

| Ref | Part Number | Description |
|---|
| 1 |
21110-38F00 |
FACE,FIXED DRIVE Price: $192.57 |
| 2 |
21120-38F00 |
FACE,MOVABLE DRIVE Price: $179.66 |
| 3 |
21124-14F00 |
SEAL,MOVABLE DRIVE FACE OIL Price: $12.92 |
| 4 |
21125-38F01 |
SPACER,MOVABLE DRIVE Price: $47.68 |
| 5 |
21210-38F02 |
FACE,FIXED DRIVEN Price: $427.86 |
| 6 |
21240-38F02 |
FACE,MOVABLE DRIVEN Price: $408.90 |
| 7 |
21243-38F01 |
SPRING,MOVABLE DRIVEN Price: $55.79 |
| 8 |
21245-38F00 |
O-RING,MOVABLE DRIVEN Price: $6.58 |
| 9 |
21247-38F00 |
SEAL,MOVABLE DRIVEN OIL Price: $12.92 |
| 10 |
21248-15F01 |
PIN,MOVABLE DRIVEN Price: $6.05 |
| 11 |
21249-15F00 |
SPACER,MOVABLE DRIVEN PIN Price: $6.83 |
| 12 |
21431-38F00 |
PLATE,MOVABLE DRIVE Price: $52.95 |
| 13 |
21471-38F01 |
SHEET,MOVABLE DRIVEN Price: $20.69 |
| 14 |
21481-14F00 |
DAMPER,MOVABLE DRIVE PLATE Price: $8.92 |
| 15 |
21518-38F00 |
NUT,DRIVEN PULLEY SPRING Price: $35.28 |
| 16 |
21519-38F00 |
HOLDER,MOVABLE DRIVEN SPRING Price: $22.73 |
| 17 |
21650-15F20 |
ROLLER,MOVABLE DRIVE Price: $19.09 |
| 18 |
09140-16032 |
NUT Price: $7.86 |
| 19 |
27601-38F00 |
V-BELT,DRIVE Price: $192.98 |
| 20 |
21100-38F00 |
HOUSING,CLUTCH Price: $349.41 |
| 21 |
21102-38F00 |
SPACER,FIXED DRIVE,L Price: $51.19 |
| 22 |
21104-09F60 |
SEAL,CLUTCH HOUSING SPACER OI Price: $75.09 |
| 23 |
09283-12008 |
SEAL,OIL,12X32X5 (12X32X5) Price: $11.13 |
| 24 |
08331-41329 |
CIRCLIP Price: $2.95 |
| 25 |
21273-44D00 |
CLUTCH,PRI DRIVE ONE WAY Price: $171.35 |
| 26 |
21500-38F10 |
CLUTCH ASSY,SHOE (NA) Price: $437.65 |
| 27 |
24741-21A00 |
RETAINER Price: $3.38 |
| 28 |
09125-06122 |
SCREW (6X12) Price: $2.58 |
| 29 |
09262-40010 |
BEARING,40X80X18 (40X80X18) Price: $119.18 |
| 30 |
08113-6201B |
BEARING Price: $12.53 |
| 31 |
09280-40020 |
O-RING (D:2.4,ID:39.7) Price: $3.49 |
