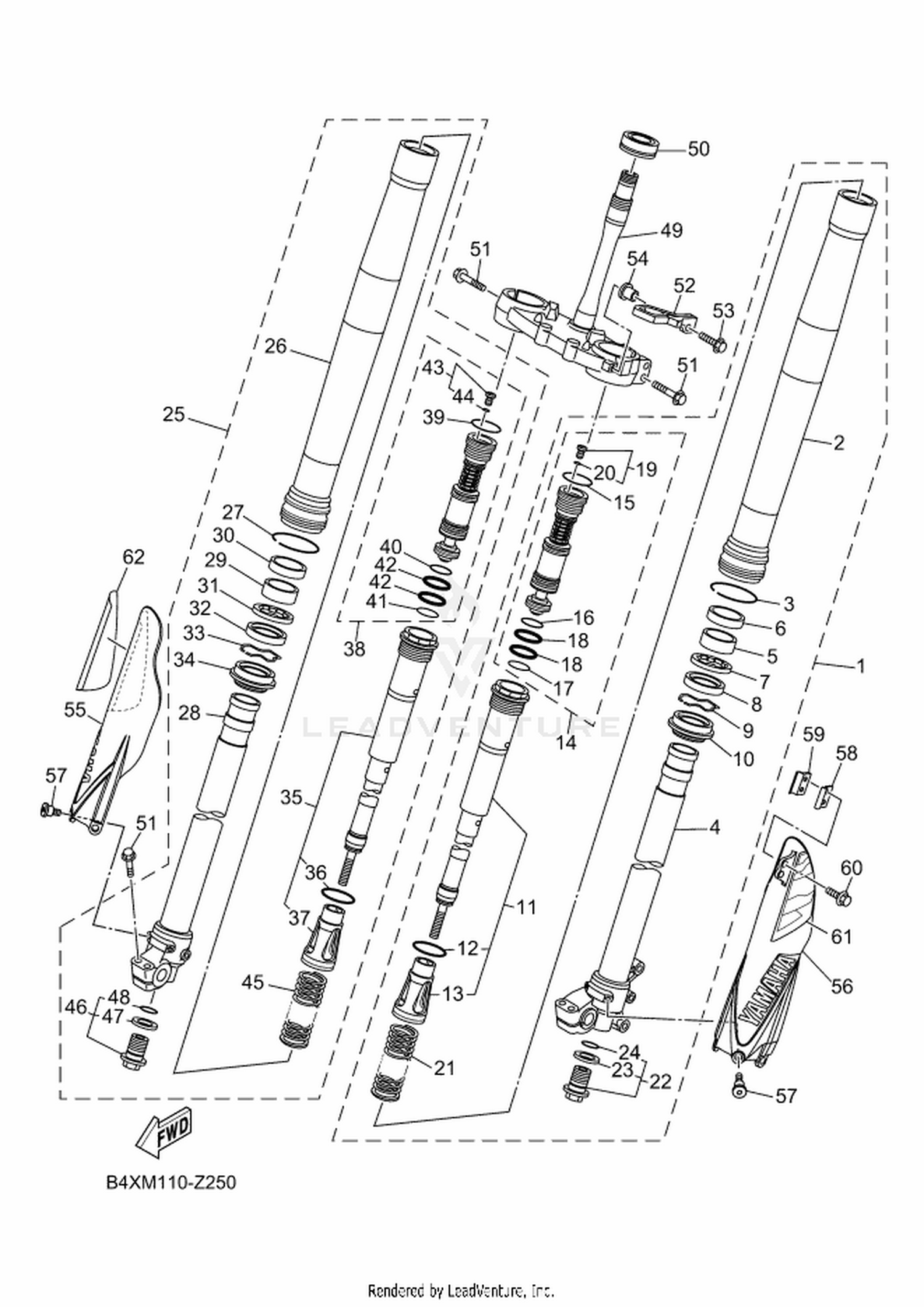

25 FRONT FORK
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BCR-23102-01 | FRONT FORK ASSY (L.H) Price: Call Us |
| 21 | B3J-23141-40 | SPRING, FRONT FORK (K=4.4) Price: Call Us |
| 25 | BCR-23103-01 | DAMPER ASSY. (R) Price: Call Us |
| 45 | B3J-23141-40 | SPRING, FRONT FORK (K=4.4) Price: Call Us |
| 49 | 1SS-23340-10 | UNDER BRACKET COMP. Price: Call Us |
| 50 | 93332-00081 | BEARING Price: Call Us |
| 51 | 95E34-08035 | BOLT, FLANGE DEEP RECESS Price: Call Us |
| 52 | BF1-23389-00 | GUIDE, CABLE Price: Call Us |
| 53 | 95E32-06016 | BOLT, FLANGE DEEP RECESS Price: Call Us |
| 54 | 90387-06104 | COLLAR Price: Call Us |
| 55 | 17D-2315J-50 | PROTECTOR 2 Price: Call Us |
| 56 | 17D-2315H-50 | PROTECTOR 1 Price: Call Us |
| 57 | 90109-06232 | BOLT Price: Call Us |
| 58 | 17D-23466-00 | CLAMP Price: Call Us |
| 59 | 17D-23467-00 | CLAMP Price: Call Us |
| 60 | 90105-06170 | BOLT, FLANGE Price: Call Us |
| 61 | BCR-231G1-00 | GRAPHIC 1 Price: Call Us |
