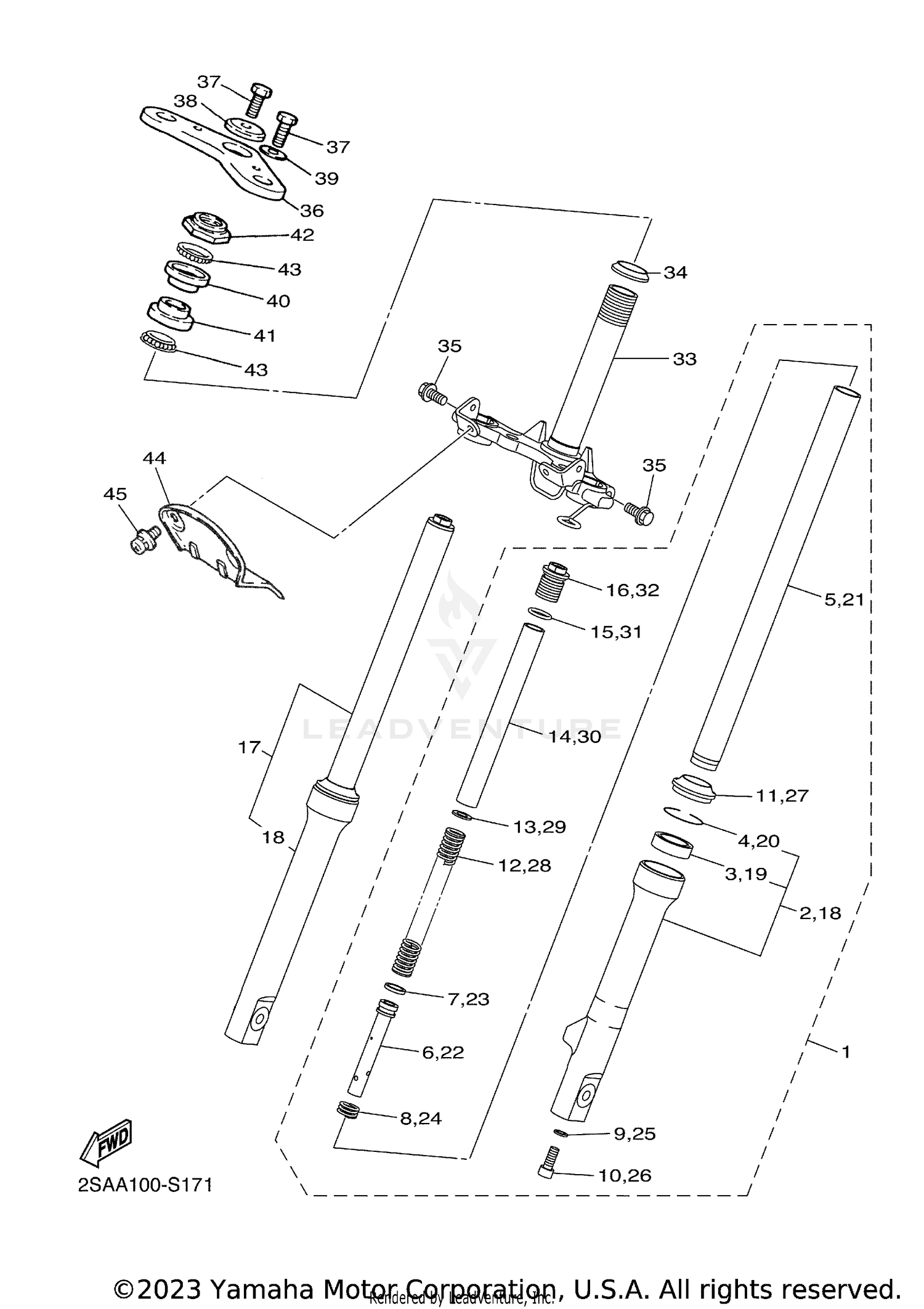

| Ref | Part Number | Description |
|---|
| 1 |
2SA-23102-02-00 |
FRONT FORK ASSY (L.H) This part replaces 2SA-23102-01-00. Price: $188.99 |
| 2 |
2SA-23106-00-00 |
OUTER TUBE COMP. Price: $87.99 |
| 3 |
2SA-23145-00-00 |
OIL SEAL Price: $12.99 |
| 4 |
4RT-F3153-00-00 |
RING, SNAP This part replaces 2SA-23153-00-00. Price: $4.25 |
| 6 |
2SA-23171-00-00 |
PISTON, FRONT FORK Price: $18.99 |
| 7 |
2SA-23157-00-00 |
RING, PISTON Price: $3.75 |
| 8 |
2SA-23151-00-00 |
SPRING, REBOUND Price: $8.99 |
| 9 |
2SA-23479-00-00 |
GASKET Price: $5.49 |
| 10 |
2SA-23356-00-00 |
BOLT 2 Price: $3.65 |
| 11 |
2SA-23144-00-00 |
SEAL, DUST Price: $8.49 |
| 12 |
2SA-23141-00-00 |
SPRING, FRONT FORK Price: $6.49 |
| 13 |
2SA-23427-00-00 |
WASHER Price: $2.25 |
| 14 |
2SA-23118-00-00 |
SPACER Price: $6.49 |
| 15 |
2SA-23147-00-00 |
O-RING Price: $1.25 |
| 16 |
2SA-23357-00-00 |
NUT Price: $18.99 |
| 17 |
2SA-23103-02-00 |
FRONT FORK ASSY (R.H) This part replaces 2SA-23103-01-00. Price: $193.99 |
| 18 |
2SA-23107-00-00 |
OUTER TUBE COMP. Price: $87.99 |
| 19 |
2SA-23145-00-00 |
OIL SEAL Price: $12.99 |
| 20 |
4RT-F3153-00-00 |
RING, SNAP This part replaces 2SA-23153-00-00. Price: $4.25 |
| 22 |
2SA-23171-00-00 |
PISTON, FRONT FORK Price: $18.99 |
| 23 |
2SA-23157-00-00 |
RING, PISTON Price: $3.75 |
| 24 |
2SA-23151-00-00 |
SPRING, REBOUND Price: $8.99 |
| 25 |
2SA-23479-00-00 |
GASKET Price: $5.49 |
| 26 |
2SA-23356-00-00 |
BOLT 2 Price: $3.65 |
| 27 |
2SA-23144-00-00 |
SEAL, DUST Price: $8.49 |
| 28 |
2SA-23141-00-00 |
SPRING, FRONT FORK Price: $6.49 |
| 29 |
2SA-23427-00-00 |
WASHER Price: $2.25 |
| 30 |
2SA-23118-00-00 |
SPACER Price: $6.49 |
| 31 |
2SA-23147-00-00 |
O-RING Price: $1.25 |
| 32 |
2SA-23357-00-00 |
NUT Price: $18.99 |
| 33 |
2SA-23340-01-00 |
UNDER BRACKET COMP This part replaces 2SA-23340-00-00. Price: $162.99 |
| 34 |
3YJ-23414-00-00 |
RACE, BALL 4 Price: $7.49 |
| 35 |
95027-08030-00 |
BOLT, FLANGE Price: $4.05 |
| 36 |
4X4-23435-00-00 |
CROWN, HANDLE Price: $49.99 |
| 37 |
90105-10006-00 |
BOLT, FLANGE Price: $12.49 |
| 38 |
90209-10160-00 |
WASHER, SPEC''L SHAP Price: $8.49 |
| 39 |
90201-105H3-00 |
WASHER, PLATE Price: $8.49 |
| 40 |
2SA-23412-00-00 |
RACE, BALL 2 This part replaces 2E9-23412-00-00. Price: $33.99 |
| 41 |
2SA-23413-00-00 |
RACE, BALL 3 This part replaces 2E9-23413-01-00. Price: $33.99 |
| 42 |
3PT-23411-00-00 |
RACE, BALL 1 Price: $44.99 |
| 43 |
93505-32042-00 |
BALL Price: $9.49 |
| 44 |
4X4-21543-00-00 |
PLATE 1 Price: $41.99 |
