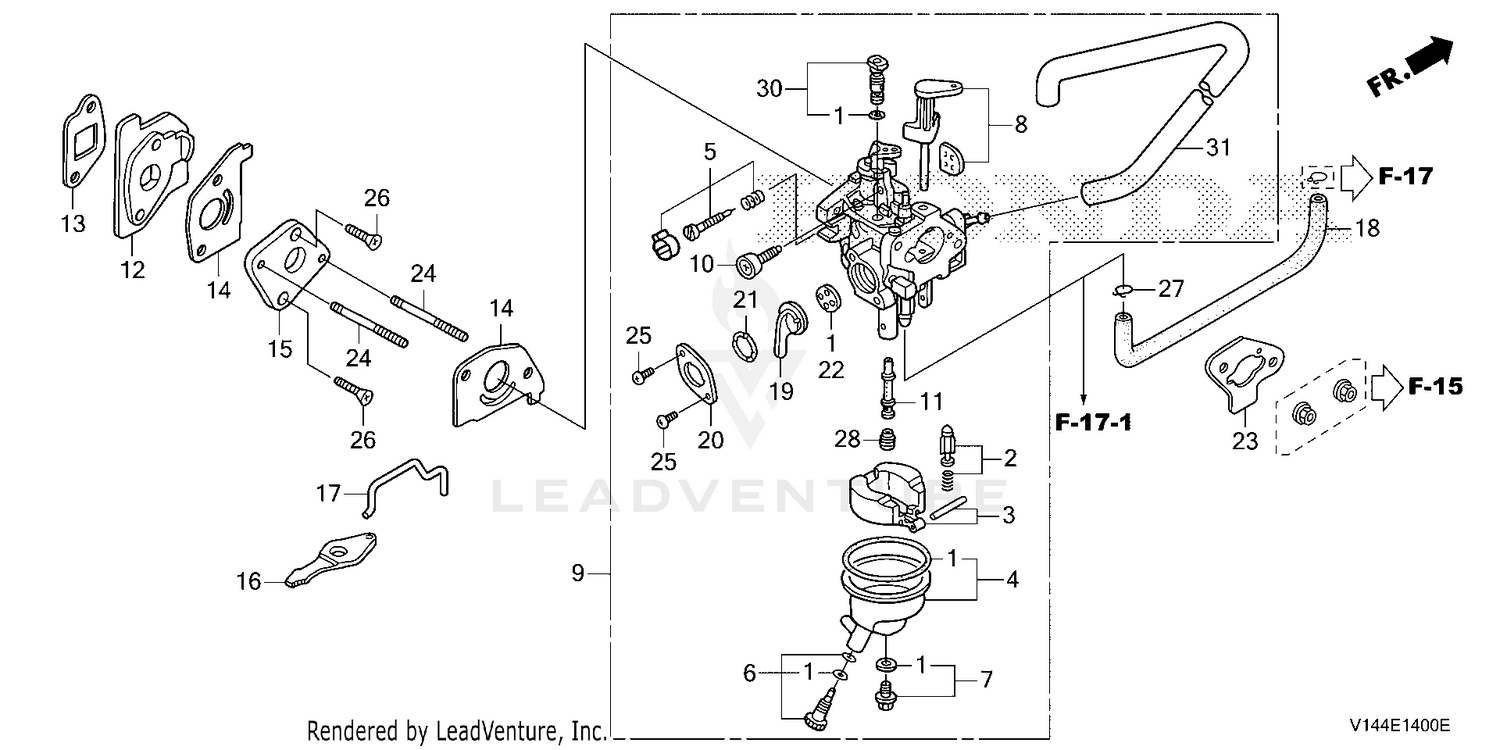

| Ref | Part Number | Description |
|---|
| 1 |
16010-ZG1-D20 |
GASKET SET Price: $17.56 |
| 2 |
16011-ZE0-005 |
VALVE SET, FLOAT (CARBURETOR NO.) (SEAT NOT INCLUDED) Price: $29.34 |
| 3 |
16013-ZDJ-801 |
FLOAT SET Price: $6.08 |
| 4 |
16015-ZG1-D20 |
CHAMBER SET, FLOAT Price: $40.68 |
| 5 |
16016-ZH8-W01 |
SCREW SET (Honda Code 4212387). Price: $12.62 |
| 6 |
16024-ZH7-A20 |
SCREW SET, DRAIN (CARBURETOR NO.) Price: $11.32 |
| 7 |
16028-ZW6-611 |
SEE PART DETAILS - PRI; SCREW SET This part replaces 16028-ZG0-811. Price: $14.88 |
| 8 |
16044-Z0G-003 |
CHOKE SET Price: $31.32 |
| 9 |
16100-Z0G-B02 |
SEE PART DETAILS - PRI; CARBURETOR ASSY. (BF24F B) Price: $56.11 |
| 10 |
16124-ZE0-005 |
SCREW, THROTTLE STOP (Honda Code 1441559). Price: $17.88 |
| 11 |
16166-ZN4-A61 |
NOZZLE, MAIN (CARBURETOR NO.) Price: $20.02 |
| 12 |
16211-ZN4-000 |
INSULATOR, CARBURETOR Price: $9.58 |
| 13 |
16212-ZM7-000 |
GASKET, INSULATOR (ENGINE NO.) Price: $2.28 |
| 14 |
16221-ZG0-801 |
SEE PART DETAILS - PRI; GASKET, CARBURETOR Price: $2.66 |
| 15 |
16225-ZN4-000 |
PLATE, CARBURETOR JOINT Price: $17.82 |
| 19 |
16953-ZG1-015 |
LEVER, PETCOCK Price: $10.86 |
| 20 |
16954-ZG1-005 |
PLATE, LEVER SETTING Price: $5.08 |
| 21 |
16956-ZE1-811 |
SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER (CARBURETOR NO.) Price: $4.16 |
| 22 |
16957-ZE1-812 |
SEE PART DETAILS - PRI; GASKET, VALVE (Honda Code 3440708). Price: $4.24 |
| 23 |
17228-Z0G-000 |
GASKET, AIR CLEANER Price: $5.62 |
| 24 |
90002-Z0G-000 |
BOLT, STUD (5X81) Price: $3.00 |
| 25 |
93500-03005-1H |
SCREW, PAN (3X5) Price: $0.64 |
| 26 |
93600-05020-0A |
SCREW, FLAT (5X20) Price: $1.14 |
| 28 |
99101-ZG0-0520 |
SEE PART DETAILS - PRI; JET, MAIN (#52) Use from Engine SN BF12A B. Price: $10.64 |
| 30 |
99204-ZE2-0350 |
JET SET, PILOT (#35) Price: $14.40 |
