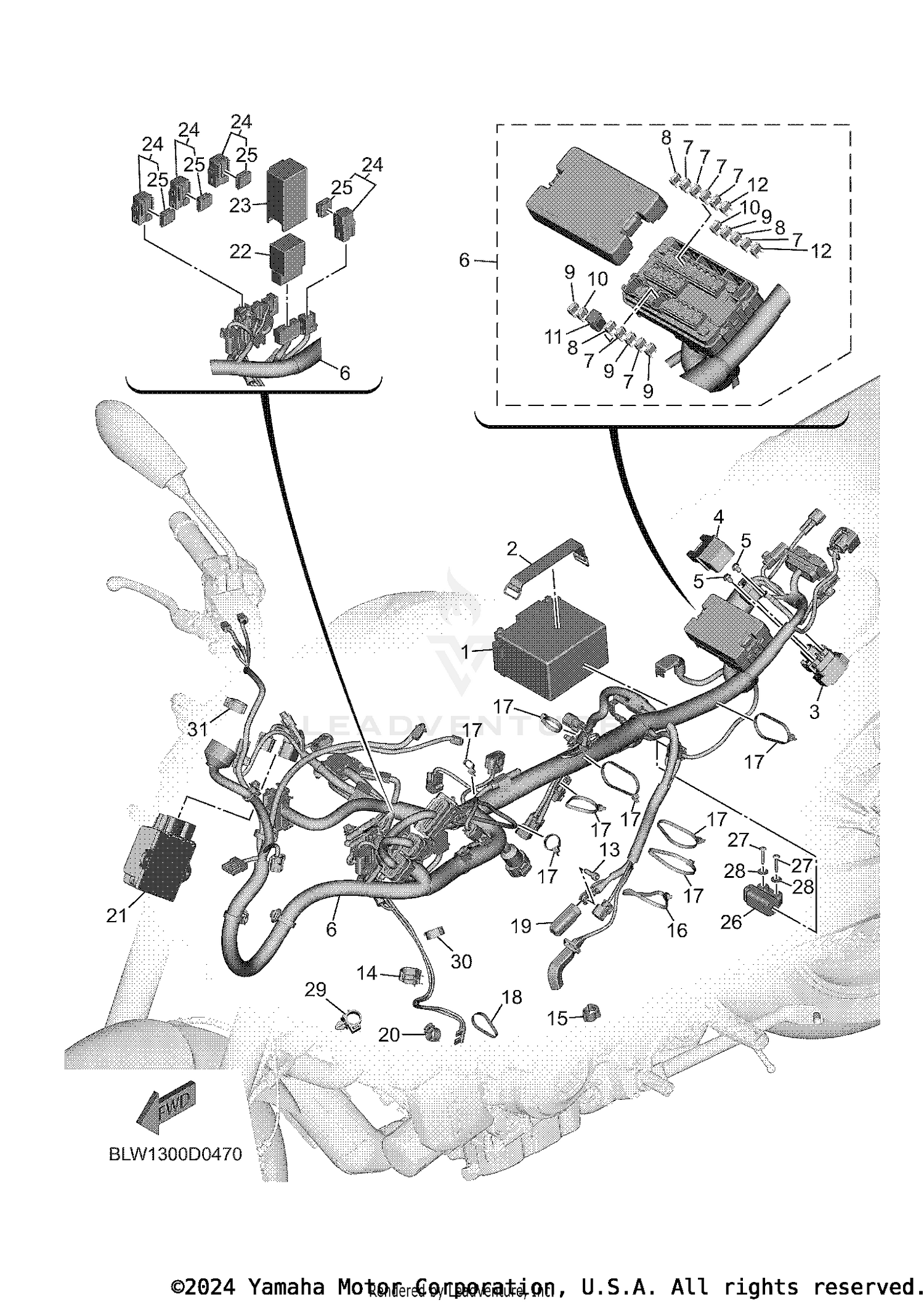

ELECTRICAL 1
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5TJ-82100-02-00 | BATTERY ASSY Price: $199.99 |
| 2 | 22F-82131-00-00 | BAND, BATTERY This part replaces 3L8-82131-01-00. Price: $32.99 |
| 3 | B7N-81940-00-00 | STARTER RELAY ASSY Price: $62.99 |
| 4 | 5SL-82119-10-00 | COVER, LEAD WIRE Price: $5.49 |
| 5 | 95022-06008-00 | BOLT, FLANGE Price: $9.49 |
| 7 | 1CB-82151-10-00 | FUSE (7.5A-LP BL) Price: $3.70 |
| 8 | BMG-82151-30-00 | FUSE Price: $4.15 |
| 9 | BMG-82151-90-00 | FUSE Price: $4.10 |
| 10 | BMG-82151-60-00 | FUSE Price: $4.15 |
| 12 | 1CB-82151-00-00 | FUSE (5A-LP BL) Price: $4.10 |
| 13 | 91380-06016-00 | BOLT Price: $7.49 |
| 14 | 90464-20191-00 | CLAMP Price: $11.49 |
| 15 | 90464-14010-00 | CLAMP Price: $3.65 |
| 16 | 90464-80002-00 | CLAMP Price: $6.49 |
| 17 | 1UA-82591-00-00 | BAND Price: $5.49 |
| 18 | 90464-65001-00 | CLAMP Price: $5.60 |
| 19 | 1WS-81916-00-00 | COVER, TERMINAL Price: $5.49 |
| 20 | 90464-14010-00 | CLAMP Price: $3.65 |
| 21 | BME-81963-01-00 | GENERATOR CONTROL Price: $379.99 |
| 22 | 5VK-81950-53-00 | RELAY ASSY (G8R-30Y-W5) Price: $61.99 |
| 23 | 1WS-8246B-00-00 | COVER 1 Price: $10.49 |
| 24 | 1TP-81950-00-00 | RELAY ASSY (1TP-00) Price: $16.49 |
| 25 | 5EA-81952-00-00 | HOLDER, RELAY Price: $8.49 |
| 26 | 5PS-82576-02-00 | SENSOR, LEAN ANGLE Price: $96.99 |
| 27 | 97702-40025-00 | SCREW, TAPPING Price: $0.30 |
| 28 | 90201-04030-00 | WASHER, PLATE Price: $2.40 |
| 29 | 90464-17003-00 | CLAMP Price: $3.90 |
| 30 | 90464-16001-00 | CLAMP Price: $2.39 |
