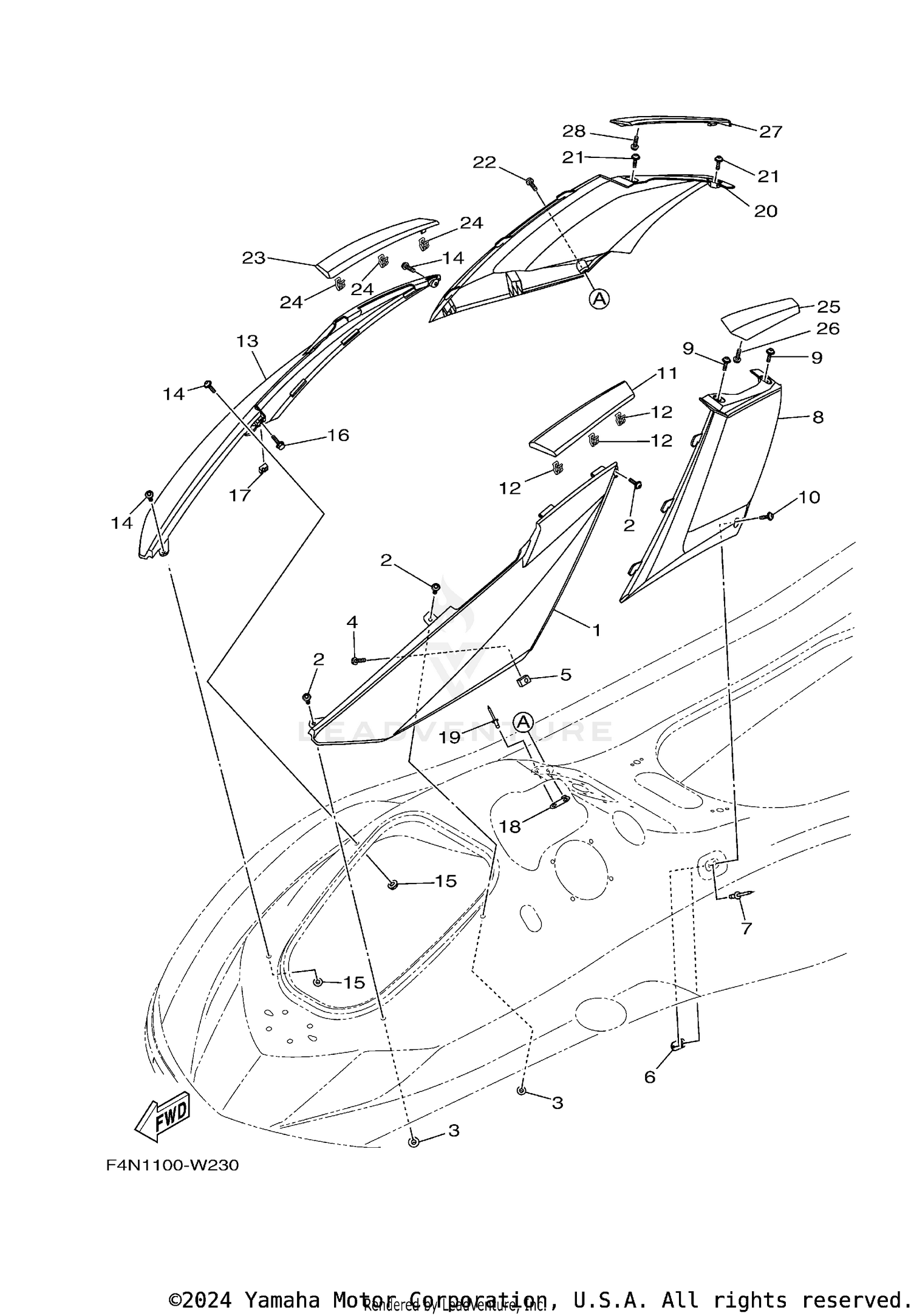

| Ref | Part Number | Description |
|---|
| 1 |
F4N-U377B-00-P3 |
COVER,SIDE 1 (SSA) Price: $211.99 |
| 2 |
F3X-U7823-12-00 |
SCREW Price: $5.99 |
| 3 |
F2N-U142L-00-00 |
NUT, LOCK Price: $5.99 |
| 4 |
90119-06803-00 |
BOLT, WITH WASHER This part replaces 90119-06880-00. Price: $8.99 |
| 5 |
F3X-U517E-00-00 |
NUT Price: $5.99 |
| 6 |
F2X-U5175-00-00 |
PLATE, FIX Price: $5.99 |
| 7 |
90267-48938-00 |
RIVET, BLIND This part replaces 90267-489U1-00. Price: $5.49 |
| 8 |
F4N-U353B-00-P3 |
PAD, KNEE (SSA) Price: $163.99 |
| 9 |
F3X-U7823-12-00 |
SCREW Price: $5.99 |
| 10 |
F3X-U7823-02-00 |
SCREW Price: $5.99 |
| 11 |
F4N-U517W-01-P3 |
ORNAMENT LH (SSA) This part replaces F4N-U517W-00-P3. Price: $93.99 |
| 12 |
F3Y-U153K-00-00 |
CLIP Price: $5.99 |
| 13 |
F4N-U377C-00-P3 |
COVER,SIDE 2 (SSA) Price: $211.99 |
| 14 |
F3X-U7823-12-00 |
SCREW Price: $5.99 |
| 15 |
F2N-U142L-00-00 |
NUT, LOCK Price: $5.99 |
| 16 |
90119-06803-00 |
BOLT, WITH WASHER This part replaces 90119-06880-00. Price: $8.99 |
| 17 |
F3X-U517E-00-00 |
NUT Price: $5.99 |
| 18 |
F2X-U5175-00-00 |
PLATE, FIX Price: $5.99 |
| 19 |
90267-48938-00 |
RIVET, BLIND This part replaces 90267-489U1-00. Price: $5.49 |
| 20 |
F4N-U353C-00-P3 |
PAD, KNEE 1 (SSA) Price: $162.99 |
| 21 |
F3X-U7823-12-00 |
SCREW Price: $5.99 |
| 22 |
F3X-U7823-02-00 |
SCREW Price: $5.99 |
| 23 |
F4N-U517X-01-P3 |
ORNAMENT RH (SSA) This part replaces F4N-U517X-00-P3. Price: $93.99 |
| 24 |
F3Y-U153K-00-00 |
CLIP Price: $5.99 |
| 25 |
F4N-U89AA-00-P3 |
ORNAMENT, MIDDLE L Price: $48.99 |
| 26 |
F2S-U13C1-00-00 |
SCREW Price: $6.99 |
| 27 |
F4N-U89AB-00-P3 |
ORNAMENT, MIDDLE R Price: $67.99 |
