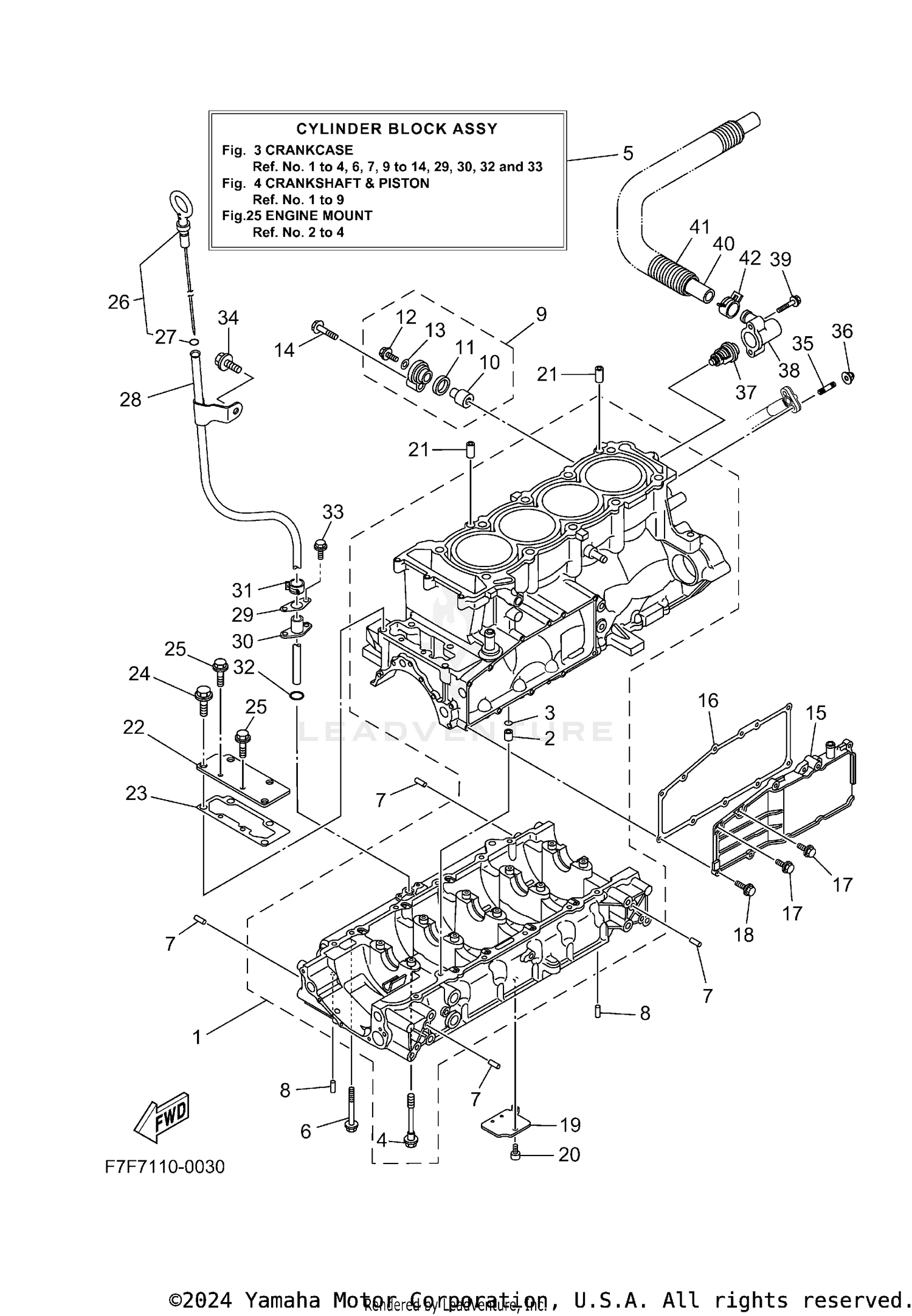

| Ref | Part Number | Description |
|---|
| 1 |
6LE-15109-00-00 |
CRANKCASE ASSY Price: $3,212.49 |
| 2 |
99530-10114-00 |
PIN, DOWEL Price: $2.65 |
| 3 |
93210-11453-00 |
O-RING Price: $8.49 |
| 4 |
90105-10071-00 |
BOLT, FLANGE Price: $14.15 |
| 5 |
6LE-W009B-00-00 |
CYLINDER BLOCK ASSY Price: $2,639.99 |
| 6 |
95814-06070-00 |
BOLT, FLANGE Price: $9.49 |
| 7 |
93606-12019-00 |
PIN, DOWEL Price: $4.60 |
| 8 |
93604-10M03-00 |
PIN, DOWEL Price: $5.20 |
| 9 |
6CB-W009A-04-00 |
CYLINDER HEAD COMP This part replaces 69J-11301-11-00. Price: $6,738.50 |
| 10 |
68V-11325-02-00 |
ANODE Price: $22.20 |
| 11 |
67F-11328-01-00 |
GROMMET, ANODE Price: $3.80 |
| 12 |
90105-06M07-00 |
BOLT, FLANGE Price: $2.30 |
| 13 |
90430-06M03-00 |
GASKET Price: $3.65 |
| 14 |
97E95-08540-00 |
BOLT, HEXAGON W/W Price: $2.30 |
| 15 |
6S5-1131M-10-8P |
COVER Price: $144.49 |
| 16 |
6BH-13557-00-00 |
GASKET Price: $37.49 |
| 17 |
95E34-06014-00 |
BOLT, FLANGE DEEP RECESS Price: $0.99 |
| 18 |
95E34-06020-00 |
BOLT, FLANGE DEEP RECESS Price: $0.99 |
| 19 |
6S5-13337-10-00 |
PLATE, BAFFLE LOWER Price: $3.99 |
| 20 |
91317-06012-00 |
BOLT This part replaces 90110-06182-00. Price: $9.49 |
| 21 |
99530-10114-00 |
PIN, DOWEL Price: $2.65 |
| 22 |
6BH-1131C-00-00 |
COVER, JOINT Price: $14.49 |
| 23 |
6BH-1131B-00-00 |
GASKET, COVER Price: $3.99 |
| 24 |
95814-08020-00 |
BOLT, FLANGE Price: $9.49 |
| 25 |
95814-06016-00 |
BOLT, FLANGE Price: $1.99 |
| 26 |
6ET-15362-00-00 |
PLUG, OIL LEVEL Price: $48.49 |
| 27 |
93210-06632-00 |
O-RING Price: $9.49 |
| 28 |
6LE-8572F-00-00 |
PIPE, OIL LEVEL Price: $127.99 |
| 29 |
6BH-1319K-00-00 |
PLATE Price: $10.49 |
| 30 |
6CS-85516-00-00 |
SPACER Price: $23.99 |
| 31 |
90467-150A1-00 |
CLIP Price: $4.49 |
| 32 |
93210-12016-00 |
O-RING Price: $2.99 |
| 33 |
90109-06268-00 |
BOLT Price: $3.49 |
| 34 |
90105-08021-00 |
BOLT, FLANGE Price: $9.49 |
| 35 |
90116-06051-00 |
BOLT, STUD Price: Call Us |
| 36 |
90176-06047-00 |
NUT, CROWN Price: $10.49 |
| 37 |
6D3-12411-00-00 |
THERMOSTAT Price: $125.49 |
| 38 |
6BH-12413-00-00 |
COVER, THERMOSTAT Price: $39.99 |
| 39 |
90105-06035-00 |
BOLT, FLANGE Price: $2.49 |
| 40 |
6S5-12578-00-00 |
HOSE 3 Price: $62.99 |
| 41 |
90447-28009-00 |
TUBE (L700) Price: $14.49 |
