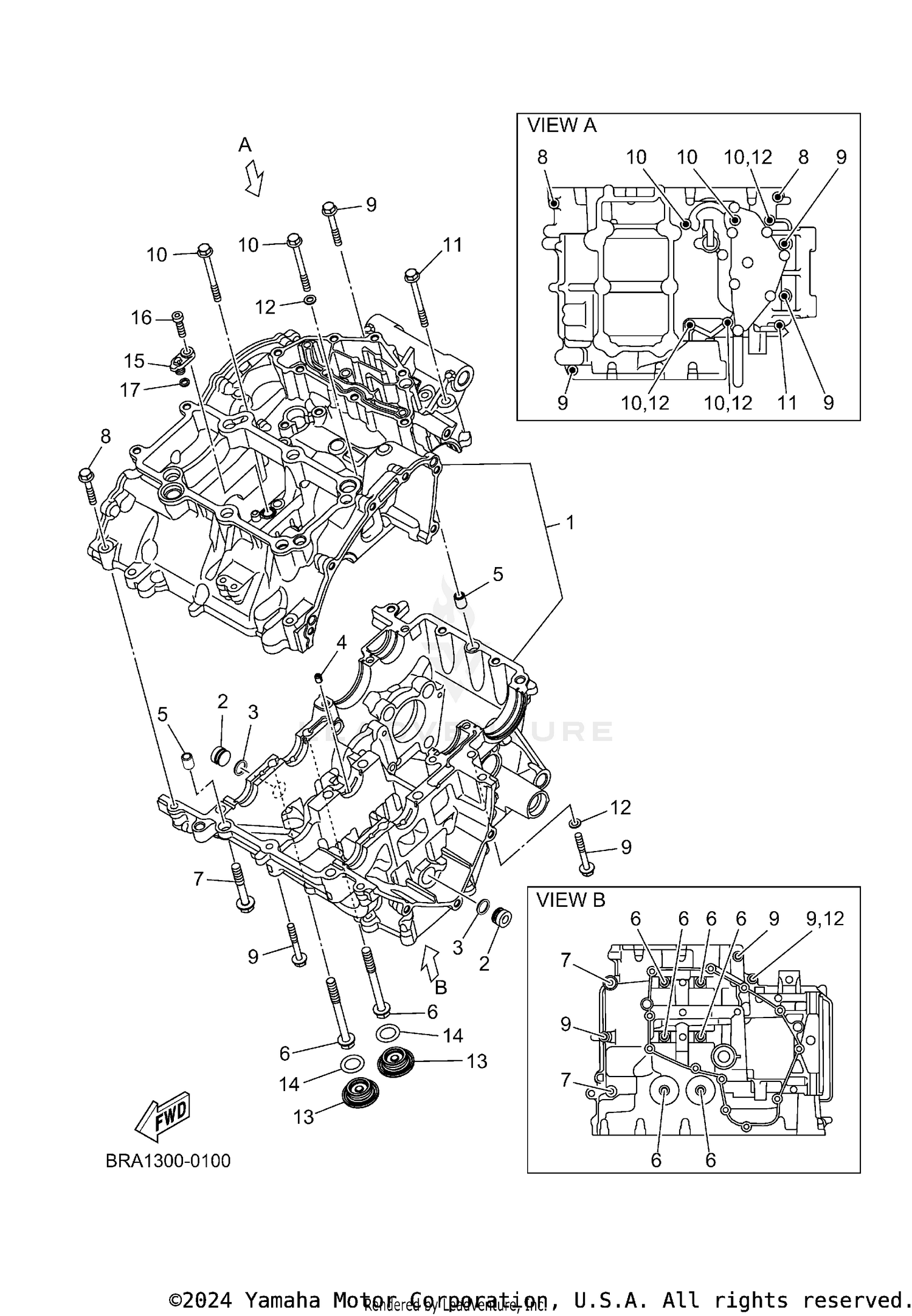

CRANKCASE
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 90338-16262-00 | PLUG Price: $16.49 |
| 3 | 93210-12803-00 | O-RING Price: $2.35 |
| 4 | 1WD-E5148-00-00 | NOZZLE 2 Price: $2.70 |
| 5 | 99530-10114-00 | PIN, DOWEL This part replaces 99530-10014-00. Price: $2.65 |
| 6 | 90105-088F7-00 | BOLT, FLANGE Price: $33.99 |
| 7 | 90105-088G0-00 | BOLT, FLANGE Price: $3.00 |
| 8 | 95812-06035-00 | BOLT, FLANGE Price: $5.49 |
| 9 | 95817-06045-00 | BOLT, FLANGE This part replaces 95812-06045-00. Price: $9.49 |
| 10 | 95812-06065-00 | BOLT, FLANGE Price: $6.49 |
| 11 | 95817-08070-00 | BOLT, FLANGE This part replaces 95812-08070-00. Price: $4.90 |
| 12 | 90430-06014-00 | GASKET Price: $8.60 |
| 13 | 90340-27008-00 | PLUG, STRAIGHT SCR Price: $28.99 |
| 14 | 93210-32172-00 | O-RING Price: $8.49 |
| 15 | B1X-E5155-00-00 | NOZZLE 3 Price: $5.49 |
| 16 | 91317-06016-00 | BOLT (4MY) This part replaces 90110-06161-00. Price: $1.25 |
