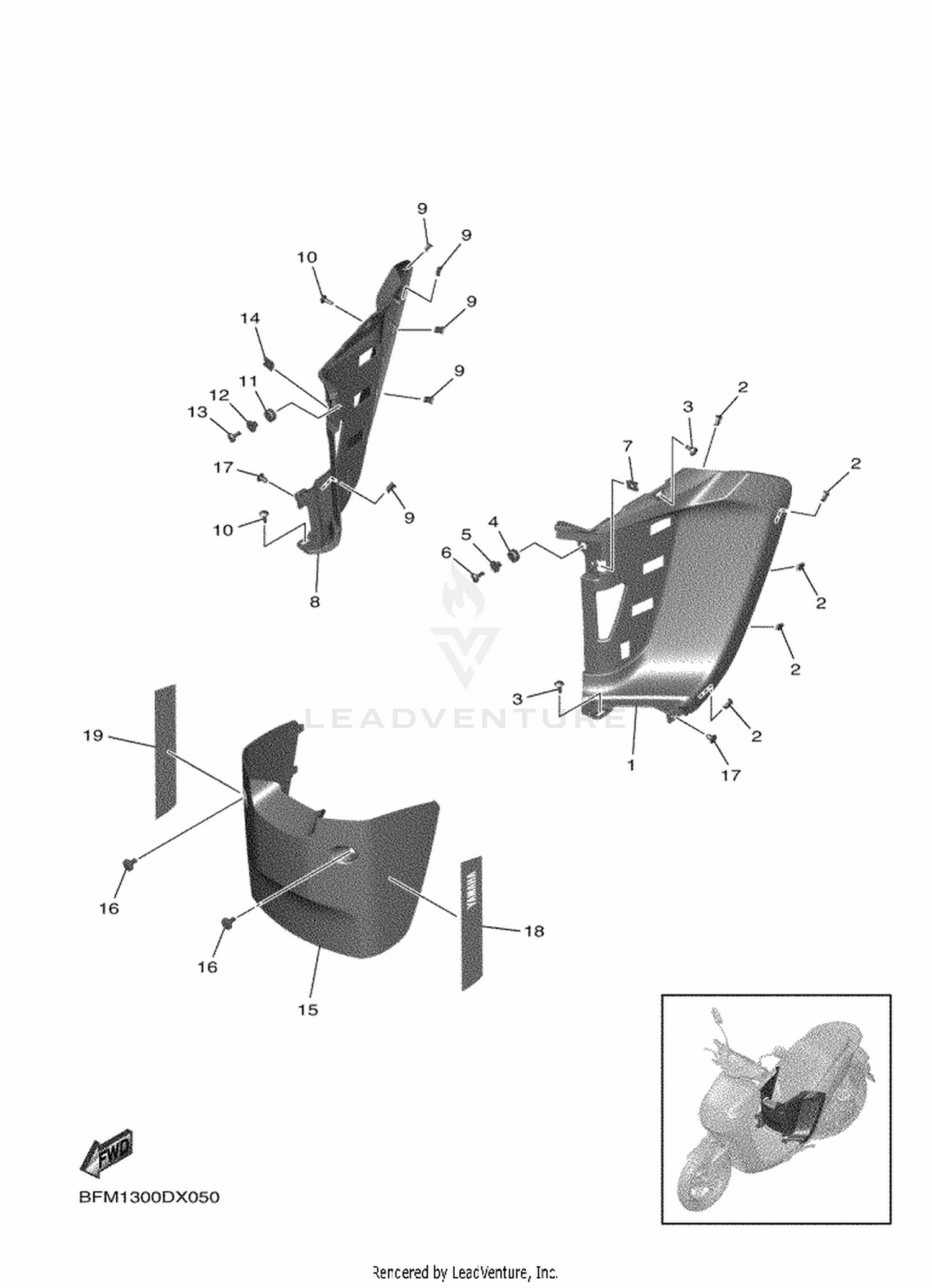

05 SIDE COVER 2
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BFM-F171L-00 | MOLE, SIDE COVER 1 Price: Call Us |
| 2 | 90464-04004 | CLAMP Price: Call Us |
| 3 | 90167-05801 | SCREW, TAPPING Price: Call Us |
| 4 | 90480-13018 | GROMMET Price: Call Us |
| 5 | 90387-06160 | COLLAR Price: Call Us |
| 6 | 90111-05817 | BOLT, HEXAGON SOCKET BUTTON Price: Call Us |
| 7 | 90183-06818 | NUT, SPRING Price: Call Us |
| 8 | BFM-F171M-00 | MOLE, SIDE COVER 2 Price: Call Us |
| 9 | 90464-04004 | CLAMP Price: Call Us |
| 10 | 90167-05801 | SCREW, TAPPING Price: Call Us |
| 11 | 90480-13018 | GROMMET Price: Call Us |
| 12 | 90387-06160 | COLLAR Price: Call Us |
| 13 | 90111-05817 | BOLT, HEXAGON SOCKET BUTTON Price: Call Us |
| 14 | 90183-06818 | NUT, SPRING Price: Call Us |
| 16 | 90109-068A4 | BOLT Price: Call Us |
| 17 | 90269-06816 | RIVET Price: Call Us |
