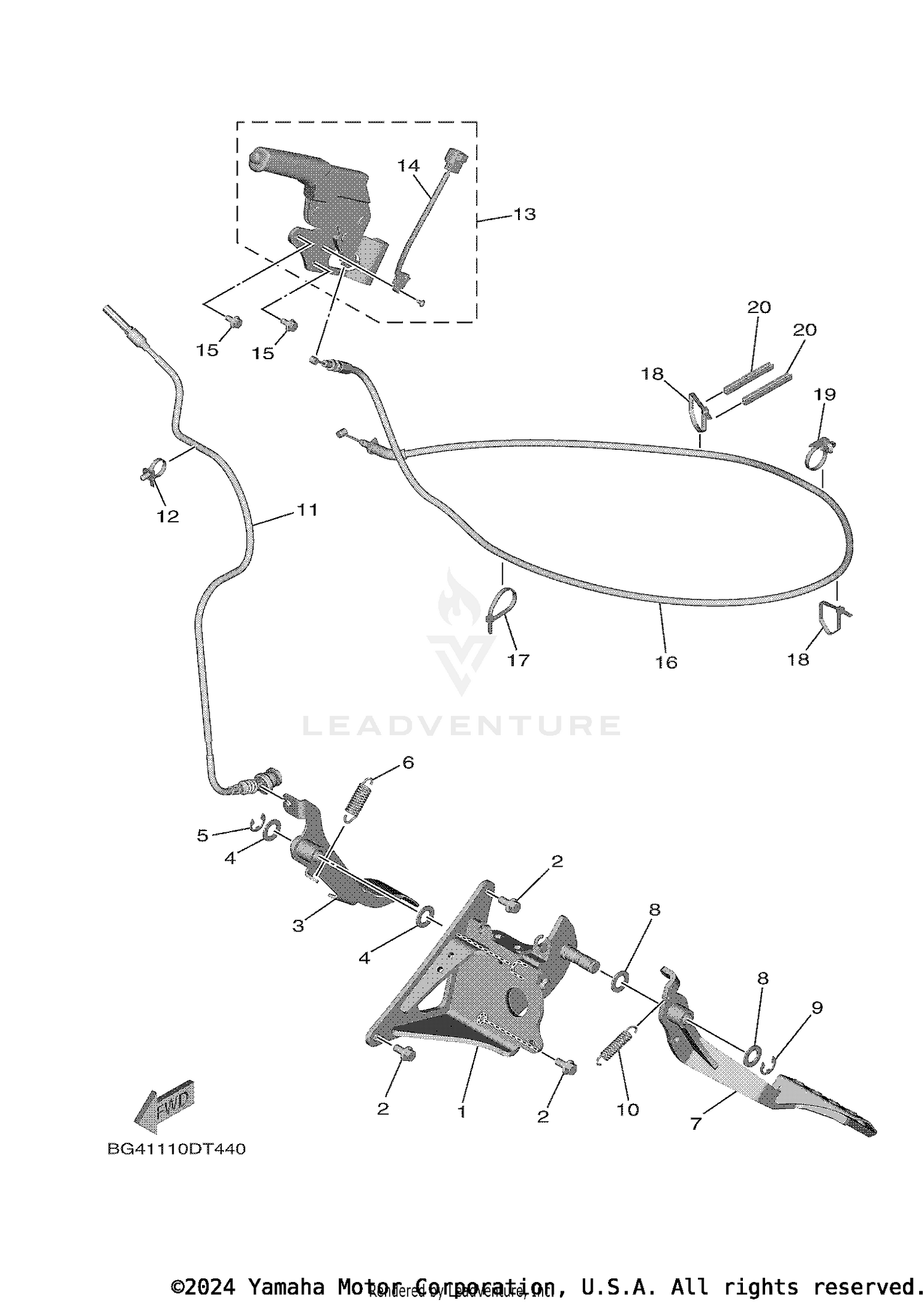

| Ref | Part Number | Description |
|---|
| 1 |
1XD-F2548-10-00 |
BRACKET, PEDAL SUPPORT Price: $66.99 |
| 2 |
95817-08016-00 |
BOLT,FLANGE (JN5) This part replaces 95812-08016-00. Price: $5.49 |
| 3 |
1XD-F7801-00-00 |
ACCEL PEDAL ASSY Price: $17.49 |
| 4 |
90201-15018-00 |
WASHER, PLATE Price: $8.49 |
| 5 |
93430-12008-00 |
CIRCLIP, E-TYPE Price: $9.49 |
| 6 |
90506-23023-00 |
SPRING, TENSION Price: $5.99 |
| 7 |
1XD-F7200-00-00 |
PEDAL, BRAKE Price: $33.99 |
| 8 |
90201-15018-00 |
WASHER, PLATE Price: $8.49 |
| 9 |
93430-12008-00 |
CIRCLIP, E-TYPE Price: $9.49 |
| 10 |
90506-20192-00 |
SPRING, TENSION Price: $8.49 |
| 11 |
BG4-26311-02-00 |
CABLE, THROTTLE 1 Price: $62.99 |
| 12 |
5B4-F1338-00-00 |
CLAMP Price: $3.60 |
| 13 |
BDW-F5690-00-00 |
PARKING LEVER ASSY This part replaces 1XD-F5690-01-00. Price: $80.99 |
| 14 |
5UG-H251S-00-00 |
SWITCH COMP. Price: $48.99 |
| 15 |
95817-06012-00 |
BOLT, FLANGE This part replaces 95812-06012-00. Price: $1.95 |
| 16 |
BG4-26341-02-00 |
WIRE, BRAKE 1 This part replaces BG4-26341-01-00. Price: $60.99 |
| 17 |
90464-40825-00 |
CLAMP Price: $3.05 |
| 18 |
90464-48800-00 |
CLAMP Price: $4.90 |
| 19 |
5B4-F1338-00-00 |
CLAMP Price: $3.60 |
