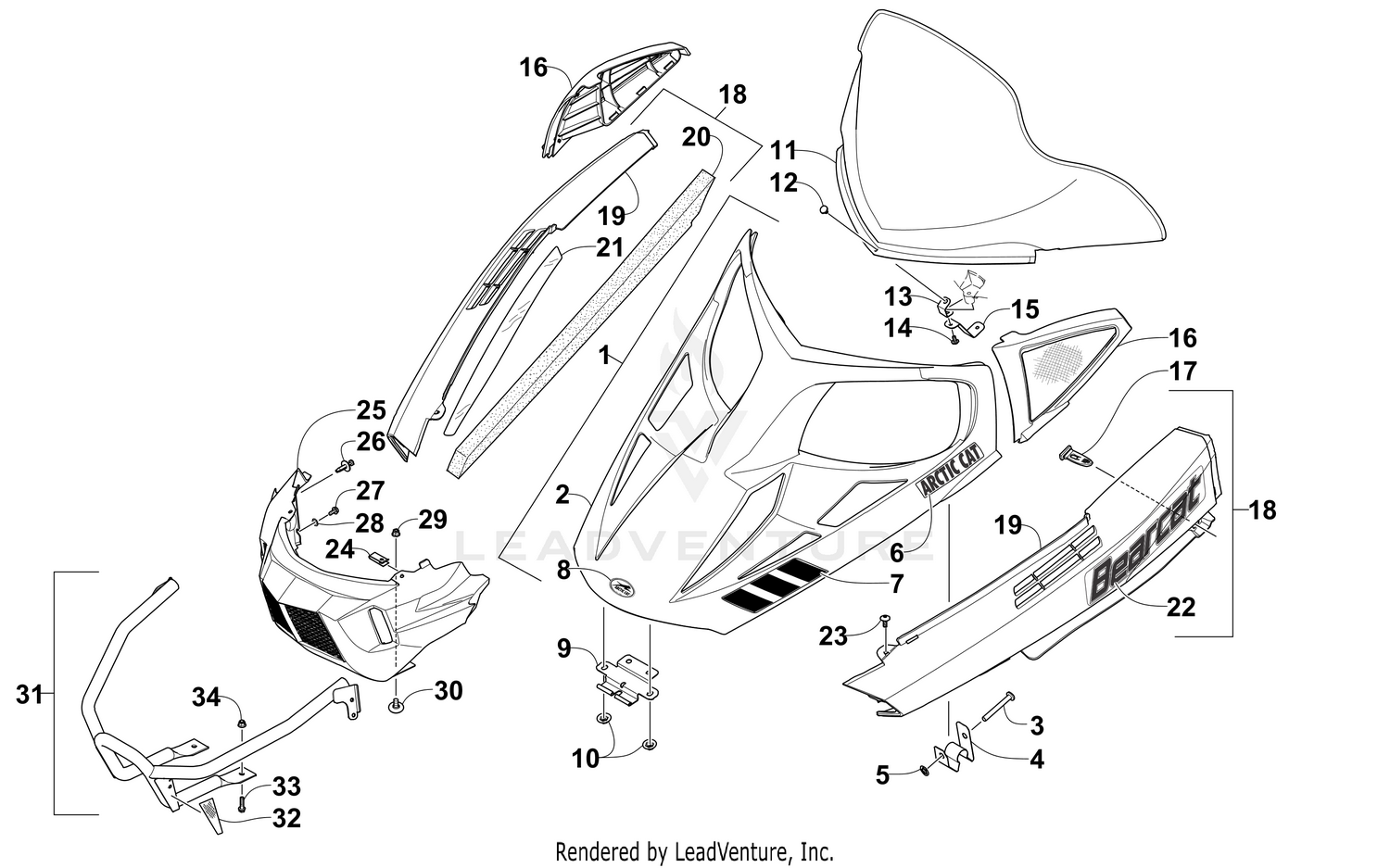

HOOD, WINDSHIELD, AND FRONT BUMPER ASSEMBLY [101620]

Parts (33)

Ref	Part Number	Description
3	1623-610	Pin, Retaining Price: $26.95
4	5706-084	Clip, Hood Hold-Down - Right Price: $18.13
4	5706-085	Clip, Hood Hold-Down - Left Price: $18.13
5	1623-409	Retainer, Pushnut Price: $0.19
6	0621-572	Decal, "Arctic Cat" Price: $0.28
7	1621-246	Decal, Hood - Right Price: $5.61
7	1621-247	Decal, Hood - Left Price: $4.18
8	9611-751	Decal, "Arctic Cat" Price: $39.14
9	6606-027	Bracket, Hinge Price: $24.20
10	1623-469	Nut, Stamped Price: $1.32
11	5606-962	Windshield, High - Tint Price: $177.95
12	1623-677	Rivet, Plastic Price: $1.45
13	4606-961	Bracket, Windshield - Hold-Down Price: $19.35
14	1623-129	Screw, Self-Tapping Price: $0.29
15	5606-277	Bracket, Windshield Price: $33.95
16	5606-940	Bezel, Intake - Right - White Price: $42.95
16	5606-941	Bezel, Intake - Left - White Price: $60.95
17	4606-926	Strap, Hold-Down Price: $4.84
20	0617-656	Foam, Front Spar - Right Price: $21.77
20	0617-657	Foam, Front Spar - Left Price: $21.77
21	4606-934	Foil, Spar - Right Price: $1.70
22	1621-241	Decal, Front Spar Price: $21.77
23	0623-797	Screw, Self-Tapping Price: $0.42
24	1623-030	Clip, U-Nut Price: $1.08
25	5606-725	Fascia, Front - Blue Price: $133.95
26	0623-362	Rivet, Reinstallable Price: $0.71
27	0623-966	Screw, Self-Tapping Price: $1.20
28	8053-242	Washer, External Tooth Lock Price: $1.53
29	8427-602	Nut, Hex Price: $0.23
30	1623-775	SCREW,SHOULDER TSTRH M6X1.0X25 Z&Y Price: $1.92
32	9611-386	Decal, Reflector - Right - Amber Price: $20.75
32	9611-387	Decal, Reflector - Left - Amber Price: $22.41
33	8408-025	SCREW,CAP-HFH M10X1.25X25 CL8.8 Z&Y Price: $3.38
