Parts Catalog

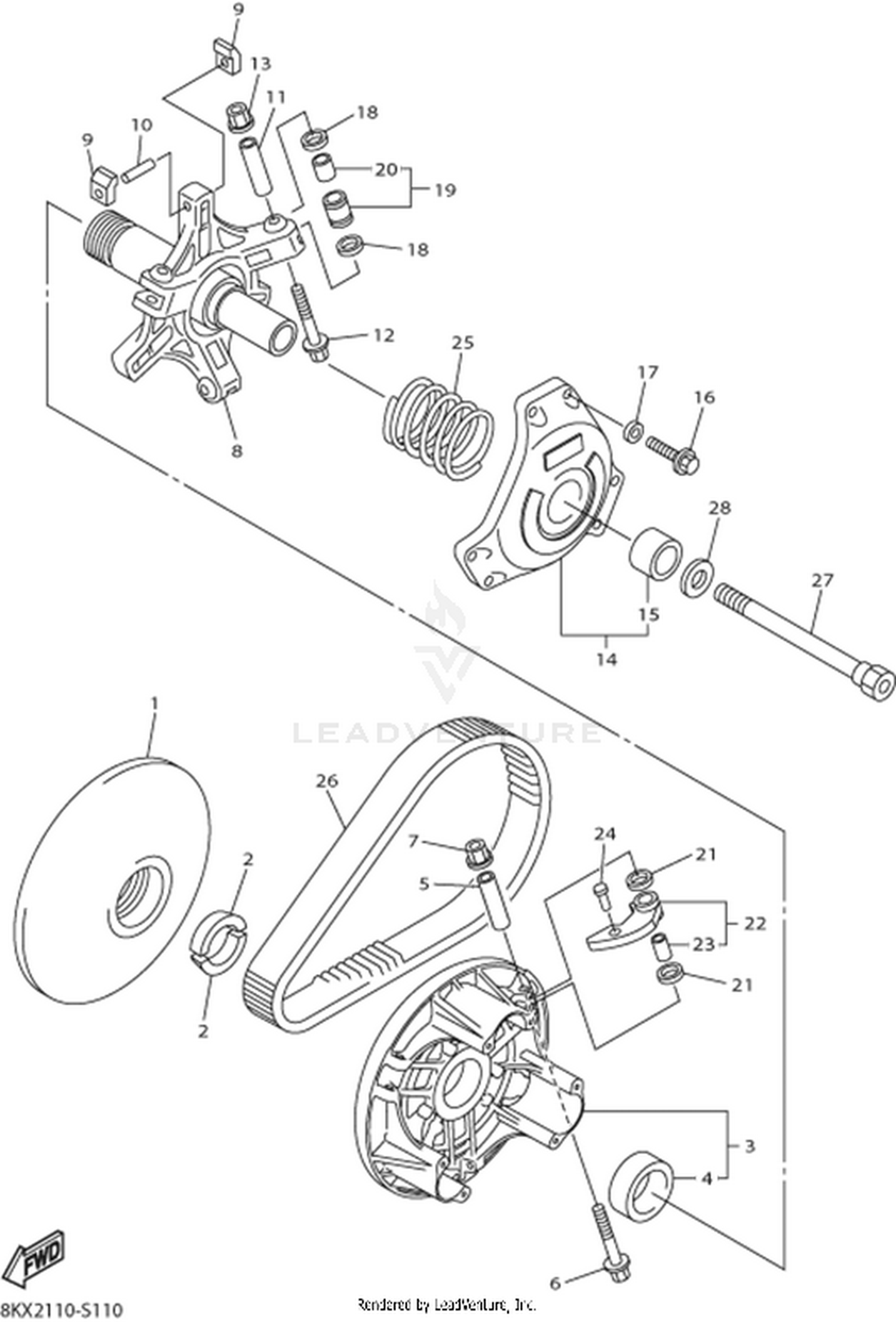

PRIMARY SHEAVE [106337]

Parts (23)

Ref	Part Number	Description
1	3020-944	Sheave, Primary Fixed Price: $186.79
2	3021-247	Stopper Price: $5.95
4	3021-414	Bush, Bimetal Formed Price: $49.63
5	3021-420	Collar Price: $16.92
6	3021-268	Bolt, Flange Price: $2.53
7	3021-605	Nut, Self-Locking Price: $2.91
8	3020-922	Spider Complete Price: $484.95
9	3020-907	Slider Price: $13.28
10	3021-517	Pin, Spring Price: $3.14
11	3021-421	Collar Price: $16.92
12	3021-268	Bolt, Flange Price: $2.53
13	3021-605	Nut, Self-Locking Price: $2.91
15	3021-406	Bush, Solid Price: $26.90
16	3021-654	Bolt Price: $2.53
17	3020-107	Washer Price: $0.82
18	3021-365	Washer, Plate Price: $3.38
20	3021-418	Bush Price: $51.95
21	3021-364	Washer, Plate Price: $3.99
23	3021-417	Bush Price: $43.95
24	3021-382	Rivet, Countersunk (St17.2 mm) Price: $1.19
25	3021-503	Spring, Compression (GO-BL-GO) Price: $39.95
26	0627-114	V-Belt Price: $133.95
27	2623-048	Bolt, Clutch Price: Call Us
