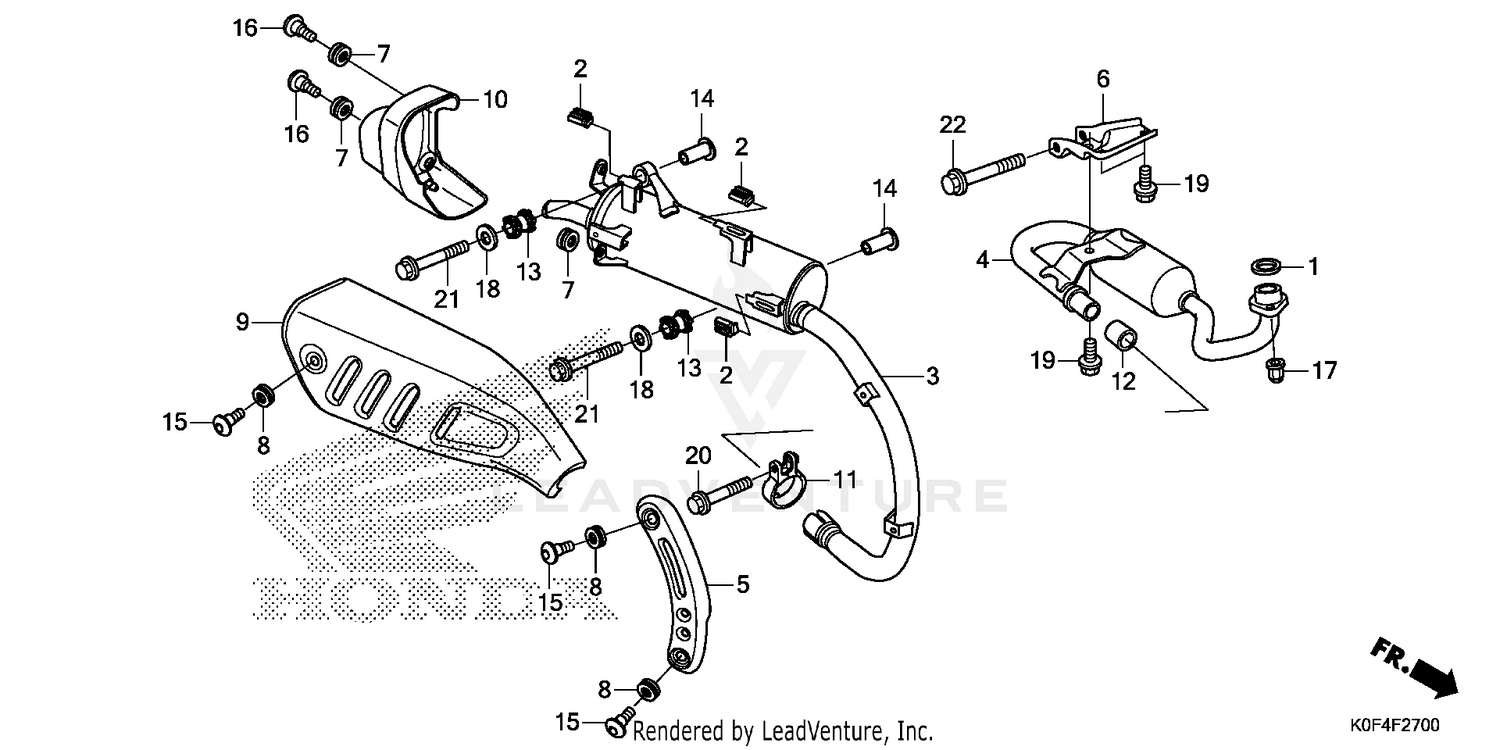

| Ref | Part Number | Description |
|---|
| 1 |
18291-GE2-920 |
GASKET, EX. PIPE Price: $8.13 |
| 2 |
18293-MCA-A20 |
RUBBER, PROTECTOR GASKET Price: $2.35 |
| 3 |
18310-K0F-T00 |
MUFFLER, EX. Price: $362.82 |
| 4 |
18320-K0F-T00 |
PIPE, EX. Price: $401.73 |
| 5 |
18325-K0F-T00 |
PROTECTOR, EX. PIPE Price: $35.16 |
| 6 |
18330-K0F-T00 |
STAY, EX. PIPE Price: $28.51 |
| 7 |
18345-K15-920 |
RUBBER, MOUNT Price: $3.25 |
| 8 |
18345-MBT-610 |
RUBBER, PROTECTOR MOUNTING Price: $2.49 |
| 9 |
18356-K0F-T00 |
PROTECTOR, MUFFLER Price: $123.49 |
| 10 |
18358-K0F-T00 |
COVER, TAIL CAP Price: $8.82 |
| 11 |
18371-K26-900 |
BAND, MUFFLER Price: $42.33 |
| 12 |
18391-HB7-000 |
GASKET, MUFFLER Price: $14.09 |
| 13 |
18421-K26-B00 |
RUBBER, MUFFLER MOUNTING Price: $0.67 |
| 14 |
18422-K26-900 |
COLLAR, MUFFLER MOUNTING Price: $5.47 |
| 15 |
90113-GFP-B00 |
SCREW, PAN (6X12) Price: $4.49 |
| 16 |
90113-K15-920 |
SCREW, PAN (6X14) Price: $1.62 |
| 17 |
90304-KPH-700 |
NUT, HEX. CAP (8MM) Price: $1.95 |
| 18 |
94103-08700 |
WASHER, PLAIN (8MM) Price: $0.98 |
| 19 |
95701-08018-08 |
BOLT, FLANGE (8X18) Price: $1.68 |
| 20 |
95701-08032-02 |
BOLT, FLANGE (8X32) Price: $1.49 |
| 21 |
90141-GGZ-J00 |
BOLT-WASHER (8X40) This part replaces 95701-08040-07. Price: $2.76 |
