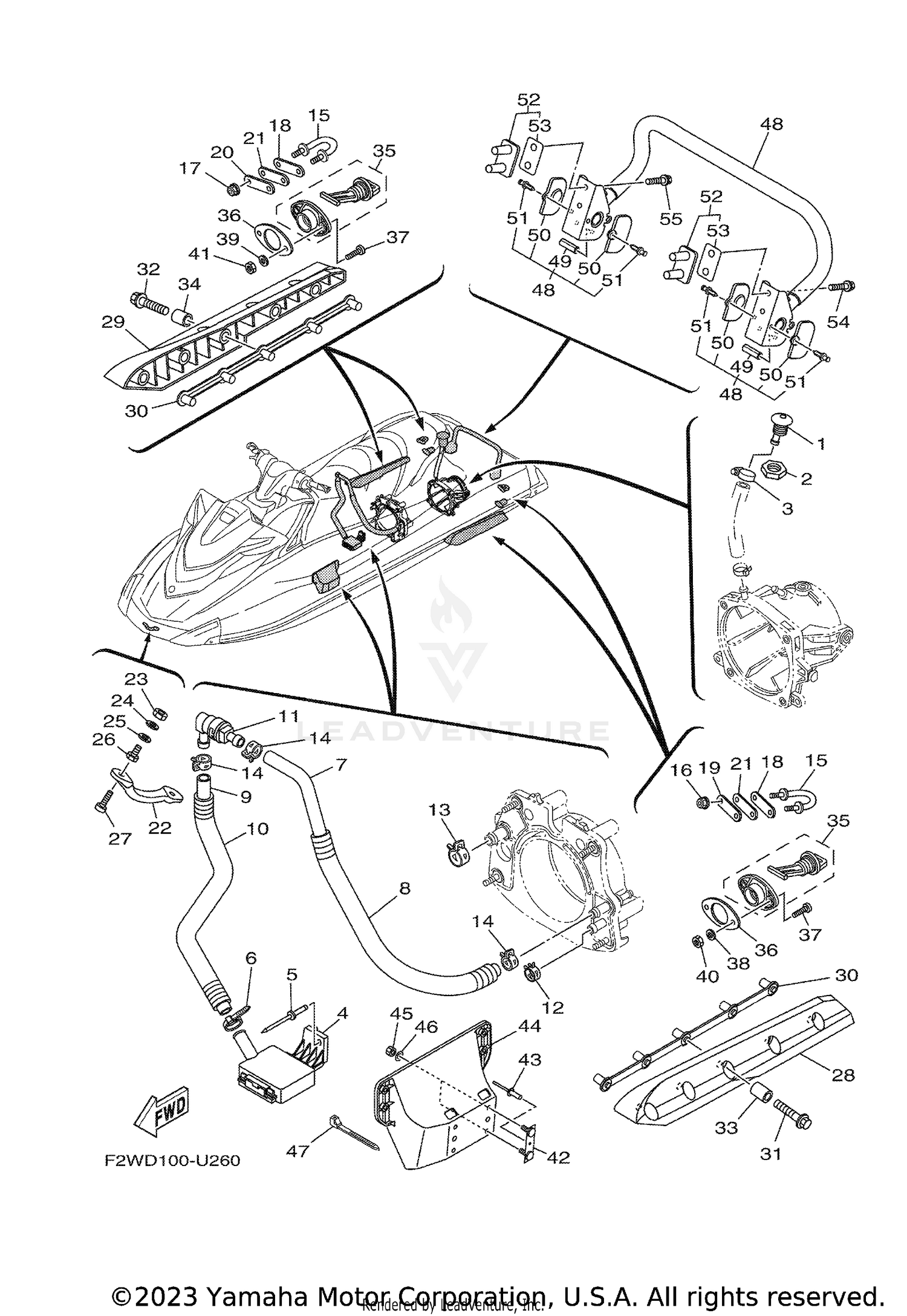

| Ref | Part Number | Description |
|---|
| 1 |
F1W-U269B-00-00 |
SPOUT Price: $5.99 |
| 2 |
EU0-61652-00-00 |
NUT Price: $15.49 |
| 3 |
90601-118UF-00 |
BAND, HOSE 18 Price: $6.99 |
| 4 |
F1B-U761D-02-00 |
STRAINER, BILGE Price: $11.99 |
| 5 |
90267-489U8-00 |
RIVET, BLIND Price: $6.99 |
| 6 |
90465-10098-00 |
CLAMP This part replaces 90465-11829-00. Price: $2.70 |
| 7 |
90445-20804-00 |
HOSE (L860) Price: $17.99 |
| 8 |
6EX-U773E-00-00 |
TUBE,2 Price: $9.99 |
| 9 |
90445-20800-00 |
HOSE (L500) Price: $17.99 |
| 10 |
6EX-U773D-00-00 |
TUBE Price: $7.99 |
| 11 |
68N-5112T-00-00 |
JOINT, HOSE Price: $49.49 |
| 12 |
90467-200A3-00 |
CLIP Price: $7.99 |
| 13 |
90467-240A3-00 |
CLIP Price: $2.99 |
| 14 |
90467-190A2-00 |
CLIP This part replaces 90467-180A5-00. Price: $3.49 |
| 15 |
F2N-U1628-02-00 |
STERN EYE Price: $8.99 |
| 16 |
95780-08300-00 |
NUT, FLANGE This part replaces 9572R-08300-00. Price: $11.80 |
| 17 |
95780-08300-00 |
NUT, FLANGE This part replaces 9572R-08300-00. Price: $11.80 |
| 18 |
GP7-U4953-10-00 |
PLATE A Price: $8.99 |
| 19 |
GP7-U4953-10-00 |
PLATE A Price: $8.99 |
| 20 |
GP7-U4953-10-00 |
PLATE A Price: $8.99 |
| 21 |
F1B-U1653-03-00 |
PACKING This part replaces F1B-U1653-02-00. Price: $4.99 |
| 22 |
F1K-61624-00-00 |
BOW EYE 1 Price: $57.49 |
| 23 |
99780-12600-00 |
NUT, HEX. (COARS) Price: $3.49 |
| 24 |
92990-12200-00 |
WASHER, PLAIN Price: $9.49 |
| 25 |
F0X-61637-00-00 |
WASHER Price: $1.49 |
| 26 |
F0X-61652-01-00 |
NUT (BOLT/NUT) This part replaces F0X-61652-00-00. Price: $11.99 |
| 27 |
90110-06280-00 |
BOLT, HEXAGON SOCKET This part replaces 90110-06040-00. Price: $3.49 |
| 30 |
F1X-U883T-02-00 |
BRACKET,STABILIZER This part replaces F1X-U883T-01-00. Price: $54.99 |
| 31 |
90105-088F9-00 |
BOLT,WASHER BASED This part replaces 90105-08860-00. Price: $8.99 |
| 32 |
90105-088F9-00 |
BOLT,WASHER BASED This part replaces 90105-08860-00. Price: $8.99 |
| 33 |
F2N-U8169-10-00 |
SPACER This part replaces F2N-U8169-00-00. Price: $5.99 |
| 34 |
F2N-U8169-10-00 |
SPACER This part replaces F2N-U8169-00-00. Price: $5.99 |
| 35 |
F1S-U2280-02-00 |
DRAIN PLUG ASSY. Price: $16.99 |
| 36 |
F1S-U2285-01-00 |
PACKING, DRAIN This part replaces F1S-U2285-00-00. Price: $4.99 |
| 37 |
9788R-05025-00 |
SCREW, PAN HEAD Price: $6.99 |
| 38 |
9299R-05200-00 |
WASHER Price: $6.99 |
| 39 |
9299R-05200-00 |
WASHER Price: $6.99 |
| 40 |
9572R-05300-00 |
NUT, FLANGE Price: $5.99 |
| 41 |
9572R-05300-00 |
NUT, FLANGE Price: $5.99 |
| 42 |
F1K-U826C-03-00 |
BRACKET Price: $17.99 |
| 43 |
90267-48938-00 |
RIVET, BLIND This part replaces 90267-489U1-00. Price: $5.49 |
| 44 |
F1W-U8572-01-00 |
BRACKET 2 Price: $58.99 |
| 45 |
95780-08300-00 |
NUT, FLANGE This part replaces 9572R-08300-00. Price: $11.80 |
| 46 |
9299R-08200-00 |
WASHER Price: $2.45 |
| 47 |
90464-32801-00 |
CLAMP Price: $5.99 |
| 48 |
F2X-U278A-00-00 |
LADDER, STEP ASSY Price: $230.99 |
| 49 |
F1W-U771H-00-00 |
SLEEVE 1 Price: $34.99 |
| 50 |
F2C-U377H-00-00 |
INNER, COVER SIDE 1 Price: $7.99 |
| 51 |
F2C-U1314-00-00 |
PIN Price: $7.99 |
| 52 |
F2S-U278F-01-00 |
BRACKET, LADDER LH This part replaces F2S-U278F-00-00. Price: $26.99 |
| 54 |
90119-08844-00 |
BOLT, WITH WASHER This part replaces 90119-08861-00. Price: $1.99 |
