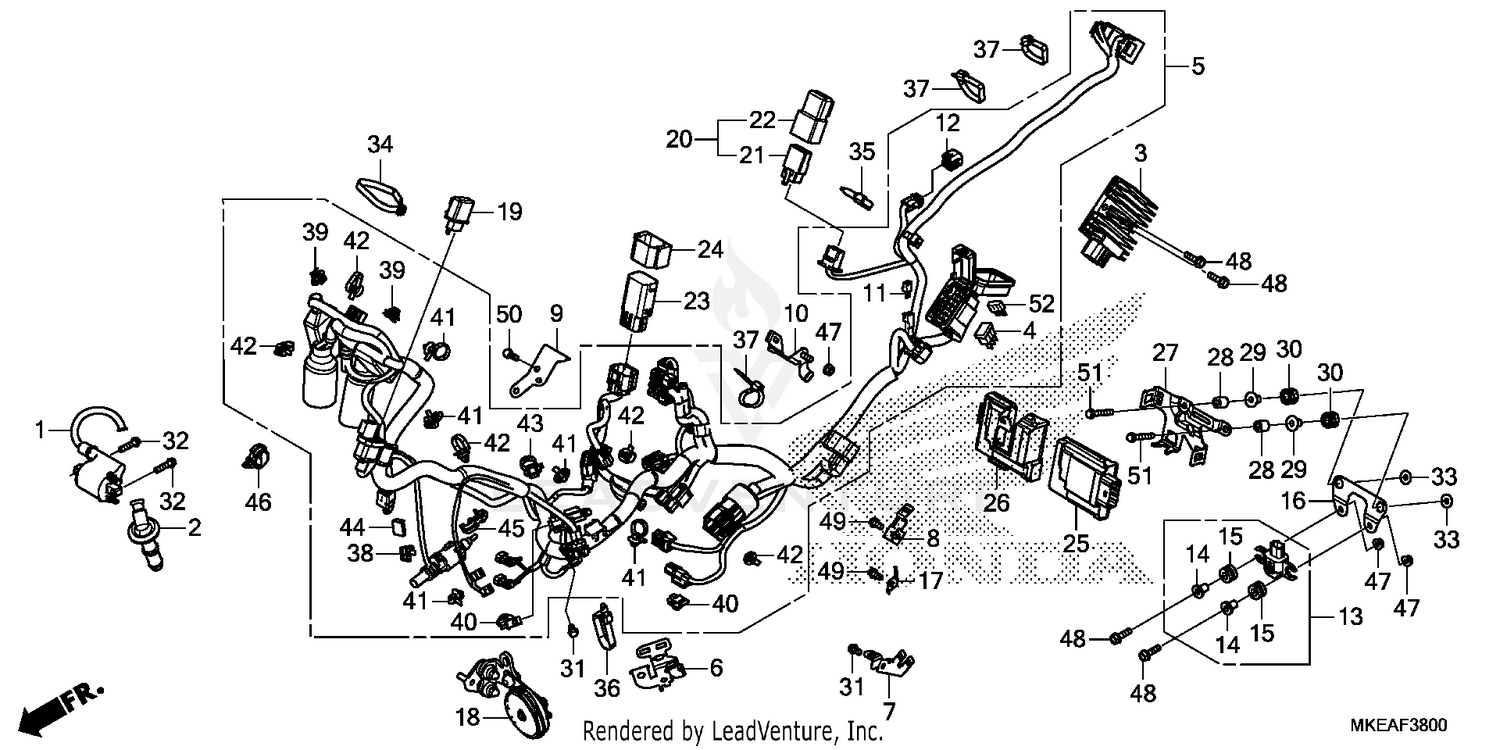

| Ref | Part Number | Description |
|---|
| 1 |
30500-MKE-A01 |
COIL ASSY., IGNITION Price: $83.58 |
| 2 |
30700-MKE-A01 |
CAP ASSY., NOISE SUPPRESSOR Price: $64.27 |
| 3 |
31600-K87-A01 |
RECTIFIER ASSY., REGULATE Price: $122.76 |
| 4 |
31730-MAS-601 |
DIODE ASSY., THREE WAY (SUMITOMO) Price: $13.09 |
| 5 |
32100-MKE-A51 |
WIRE HARNESS Price: $1,244.89 |
| 6 |
32111-MKE-A50 |
STAY, HARNESS Price: $8.53 |
| 7 |
32125-MKE-A50 |
STAY, HARNESS (L) Price: $6.35 |
| 8 |
32126-MKE-A50 |
STAY, CONNECTOR (L) Price: $8.65 |
| 9 |
32127-MKE-A50 |
STAY, CABLE Price: $8.65 |
| 10 |
32129-MKE-A50 |
STAY, HARNESS Price: $8.53 |
| 11 |
32146-S84-003 |
CONNECTOR, DIODE (2P) (3A) Price: $18.03 |
| 12 |
32606-GEV-761 |
CAP, DUMMY (4P) (RED) (Honda Code 7679160) Price: $5.16 |
| 13 |
35160-MKE-A51 |
SENSOR ASSY., BANK ANGLE Price: $97.53 |
| 14 |
35161-MKE-A51 |
COLLAR Price: $5.56 |
| 15 |
35163-MGC-003 |
GROMMET Price: $2.56 |
| 16 |
35165-MKE-A50 |
STAY, BANK ANGLE SENSOR Price: $10.80 |
| 17 |
35711-MKE-A50 |
STAY, SIDE STAND SWITCH WIRE Price: $4.36 |
| 18 |
38100-MKE-AE0 |
HORN ASSY. Price: $90.89 |
| 19 |
38301-KZZ-J01 |
RELAY, TURN SIGNAL Price: $64.98 |
| 20 |
38500-GC7-612 |
RELAY ASSY., STARTER Price: $57.31 |
| 21 |
38501-GN2-014 |
RELAY, STARTER (MITSUBA) Price: $60.16 |
| 22 |
38506-GC7-611 |
SUSPENSION, STARTER RELAY (MITSUBA) Price: $5.64 |
| 23 |
38580-HP5-601 |
RELAY, WATERPROOF (15AX2) (Honda Code 8557167) Price: $56.22 |
| 24 |
38585-MKE-A11 |
CUSHION, RELAY Price: $6.22 |
| 25 |
38770-MKE-AK1 |
PGM-FI UNIT (NOT AVAILABLE) Price: $807.71 |
| 26 |
38771-MKE-A00 |
SUSPENSION, PGM-FI UNIT Price: $12.56 |
| 27 |
50124-MKE-A00 |
BRACKET, ECU Price: $21.15 |
| 28 |
50125-MKE-A50 |
COLLAR, ECU BRACKET Price: $5.45 |
| 29 |
61104-MKE-A50 |
COLLAR Price: $4.98 |
| 30 |
84703-MKE-A50 |
RUBBER, MOUNT Price: $5.96 |
| 31 |
90020-GHB-610 |
BOLT, FLANGE (6X10) Price: $2.42 |
| 32 |
90020-GHB-680 |
BOLT, FLANGE (6X25) Price: $2.58 |
| 33 |
90535-MKE-A00 |
WASHER (6.1MM) Price: $2.84 |
| 34 |
90620-SB2-003 |
BAND, WIRE HARNESS Price: $27.07 |
| 35 |
90650-KV6-003 |
BAND, WIRE (Honda Code 2687788) Price: $3.91 |
| 36 |
90650-MA6-720 |
BAND, WIRE HARNESS (Honda Code 1746650) Price: $5.20 |
| 37 |
90652-KT1-771 |
BAND, WIRE (BLACK) Price: $5.62 |
| 38 |
91531-TG1-003 |
CLIP, HARNESS BAND (145MM) (BLACK) Price: $1.45 |
| 39 |
91533-SDA-003 |
CLIP, CONNECTOR (BEIGE) Price: $2.65 |
| 40 |
91535-TA0-003 |
CLIP, CONNECTOR (DARK BROWN) Price: $5.20 |
| 41 |
91540-S7S-003 |
CLIP, HARNESS BAND (157.7MM) (BLACK) Price: $6.08 |
| 42 |
91541-S0A-003 |
CLIP, HARNESS BAND (145MM) (BLACK) Price: $4.15 |
| 43 |
91542-SWY-003 |
CLIP, HARNESS BAND (158.9MM) (BLACK) Price: $0.60 |
| 44 |
91554-SM4-003 |
HOLDER, BRACKET (RED) Price: $8.18 |
| 45 |
91558-P5G-A01 |
CLIP, TUBE (11MM) (BLACK) Price: $8.50 |
| 46 |
91558-SD5-003 |
CLIP, WIRE HARNESS *NH1L* (BLACK) Price: $9.50 |
| 47 |
94050-06080 |
NUT, FLANGE (6MM) Price: $0.68 |
| 48 |
95701-06022-08 |
BOLT, FLANGE (6X22) Price: $1.88 |
| 49 |
96001-06010-00 |
BOLT, FLANGE (6X10) Price: $1.70 |
| 50 |
96001-06020-00 |
BOLT, FLANGE (6X20) Price: $1.42 |
| 51 |
96001-06038-00 |
BOLT, FLANGE (6X38) Price: $0.62 |
