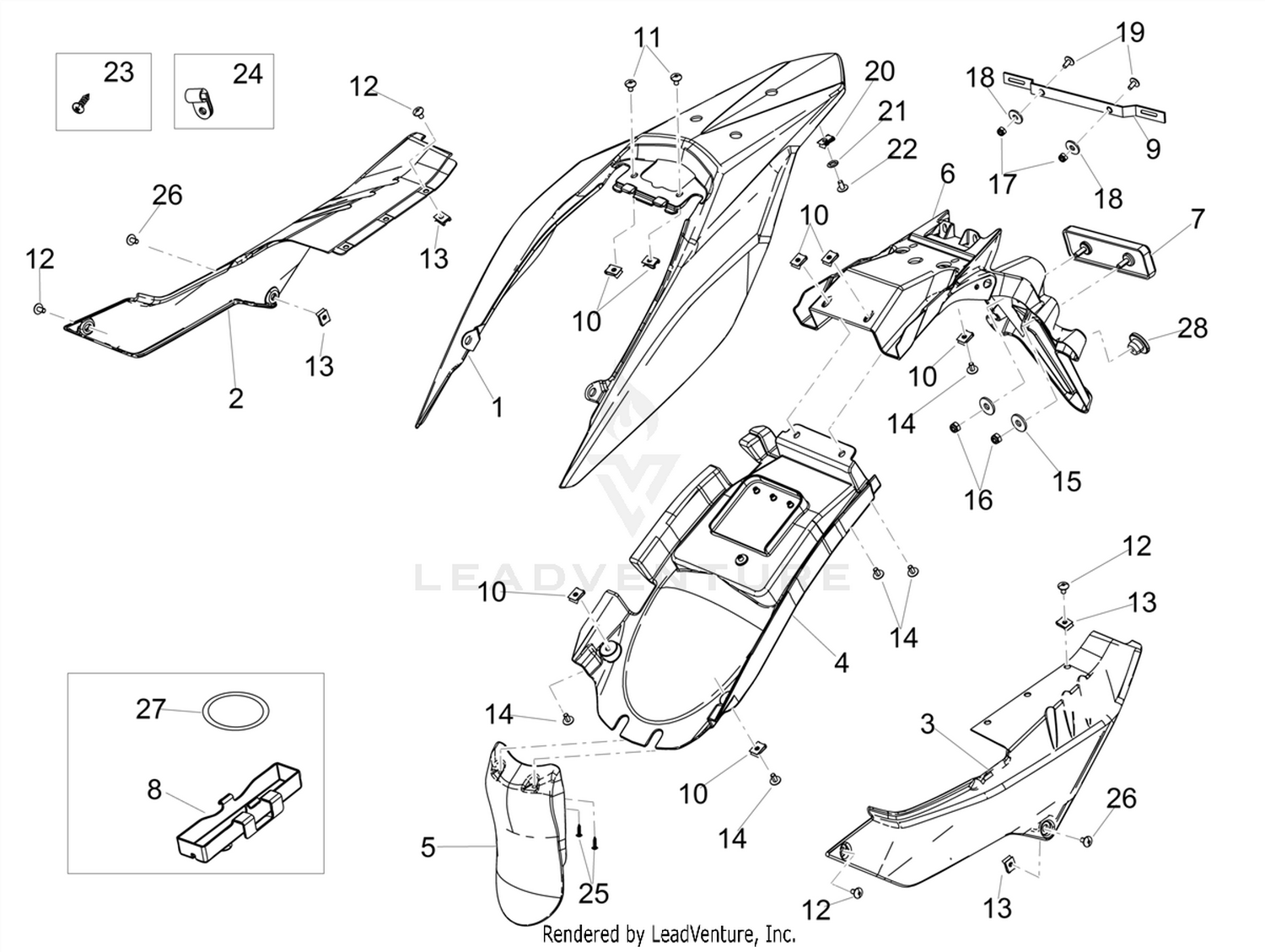

Rear body
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 86596200W0N | Rear fairing, black Price: $33.77 |
| 2 | 2B004706 | RH SIDE COVER Price: $7.00 |
| 3 | 2B004705 | LH SIDE COVER Price: $7.00 |
| 4 | 2B004443 | Saddle compartment Price: $14.99 |
| 5 | 865985 | Shock absorber cover Price: $3.09 |
| 6 | 865984 | License plate Price: $36.69 |
| 7 | 00G04403752 | Reflector Price: $4.73 |
| 8 | 866484 | Tool kit box Price: $1.90 |
| 9 | 2R000363 | Upper crosspiece Price: $3.57 |
| 10 | 254485 | Spring plate Price: $0.25 |
| 12 | AP8152339 | Hex socket screw Price: $2.70 |
| 13 | 00G04401462 | Clip M5 Price: $0.80 |
| 14 | 2R000356 | Screw m6x16 Price: $0.48 |
| 15 | 013763 | Flat washer Price: $0.06 |
| 16 | 2R000438 | Nut Price: $0.09 |
| 17 | 2R000440 | Nut Price: $0.19 |
| 18 | 2R000417 | Washer Price: $0.05 |
| 19 | 2R000433 | Radiator grille Price: $0.23 |
| 20 | 248419 | Spring plate Price: $0.49 |
| 21 | 2R000413 | Washer Price: $0.05 |
| 24 | 864454 | Flange Price: $2.70 |
| 25 | 00011051401 | Self-tap screw Price: $2.70 |
| 26 | AP8152302 | Screw w/ flange Price: $2.60 |
| 27 | 2R000349 | Elastic Price: $1.48 |
