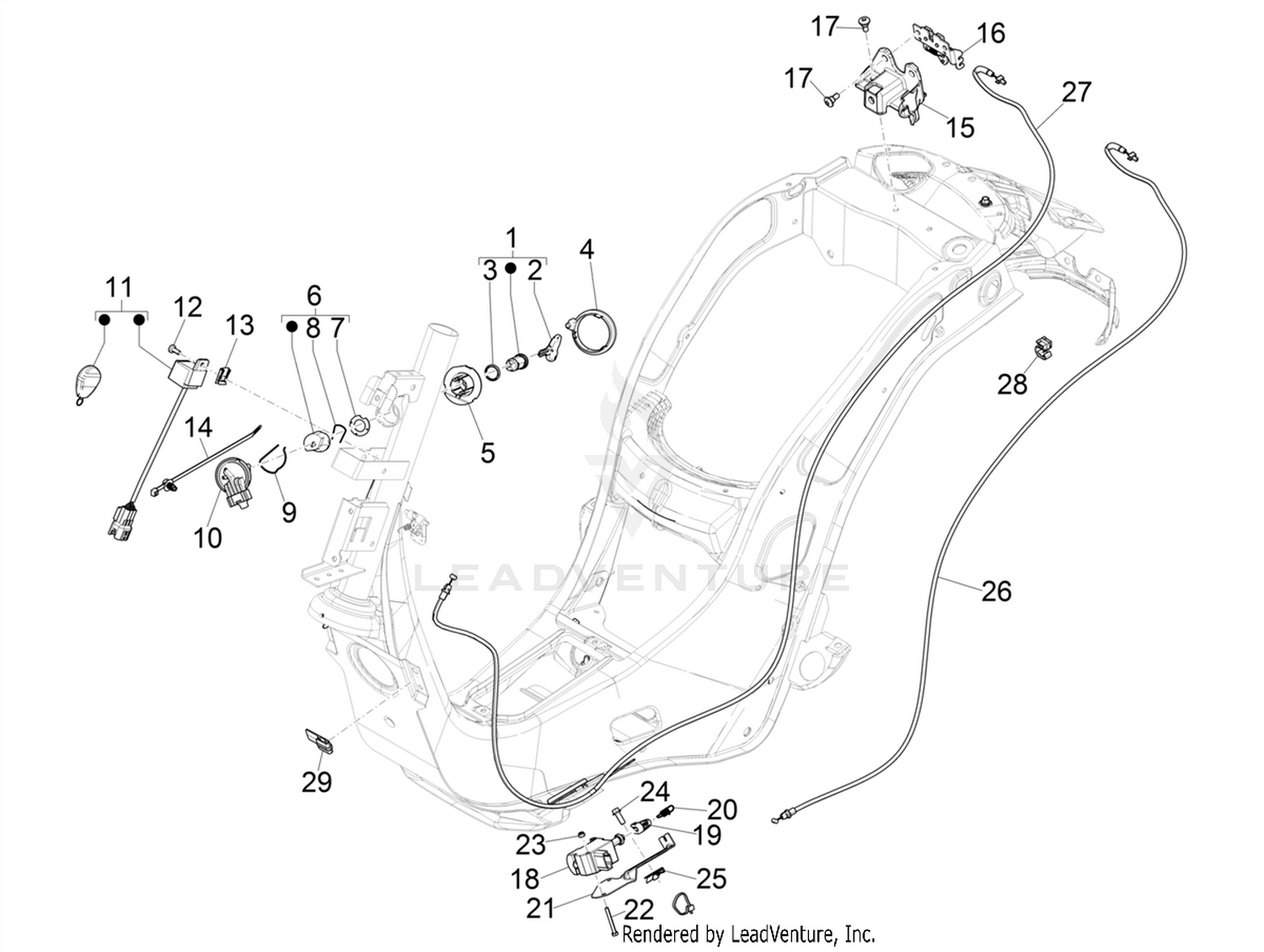

| Ref | Part Number | Description |
|---|
| 1 |
1B004022 |
Lock kit Price: $104.50 |
| 2 |
1B004020 |
Hewn key with transponder Price: $59.77 |
| 3 |
298731 |
Oil seal Price: $0.18 |
| 4 |
58200R |
Immobilizer antenna Price: $17.27 |
| 5 |
1B001876 |
Lock body Price: $5.34 |
| 6 |
1B006291 |
Complete lock block Price: $4.17 |
| 7 |
298594 |
Flat washer Price: $0.74 |
| 8 |
298838 |
Cylinder retainer spring Price: $0.37 |
| 9 |
253937 |
Spring Price: $0.18 |
| 10 |
1D001338 |
Key switch Price: $13.44 |
| 11 |
1D002372R |
Bike finder Price: Call Us |
| 12 |
015585 |
Self-tapping screw Price: $0.06 |
| 13 |
248419 |
Spring plate Price: $0.49 |
| 14 |
1D001143 |
Wiring clip Price: $0.25 |
| 15 |
1B004441 |
Saddle lock support Price: $5.69 |
| 16 |
CM023701 |
Saddle lock Price: $7.04 |
| 17 |
CM179202 |
Torx head cylinder head screw Price: $0.18 |
| 18 |
1D002276R |
Solenoid valve Price: $21.68 |
| 19 |
577128 |
Connection Price: $0.74 |
| 20 |
1B003298 |
Saddle tightening spring actuator Price: $0.12 |
| 21 |
674399 |
Actuator support bracket Price: $6.33 |
| 22 |
584121 |
Hexagonal-head screw Price: $0.25 |
| 23 |
577620 |
Self locking nut Price: $0.06 |
| 24 |
B016777 |
Flanged hexagon screw Price: $0.12 |
| 25 |
254485 |
Spring plate Price: $0.25 |
| 26 |
CM012851 |
Actuator-lever saddle transmission Price: $7.04 |
| 27 |
CM012852 |
Saddle cable Price: $8.19 |
| 28 |
CM013201 |
Spring Price: $0.31 |
