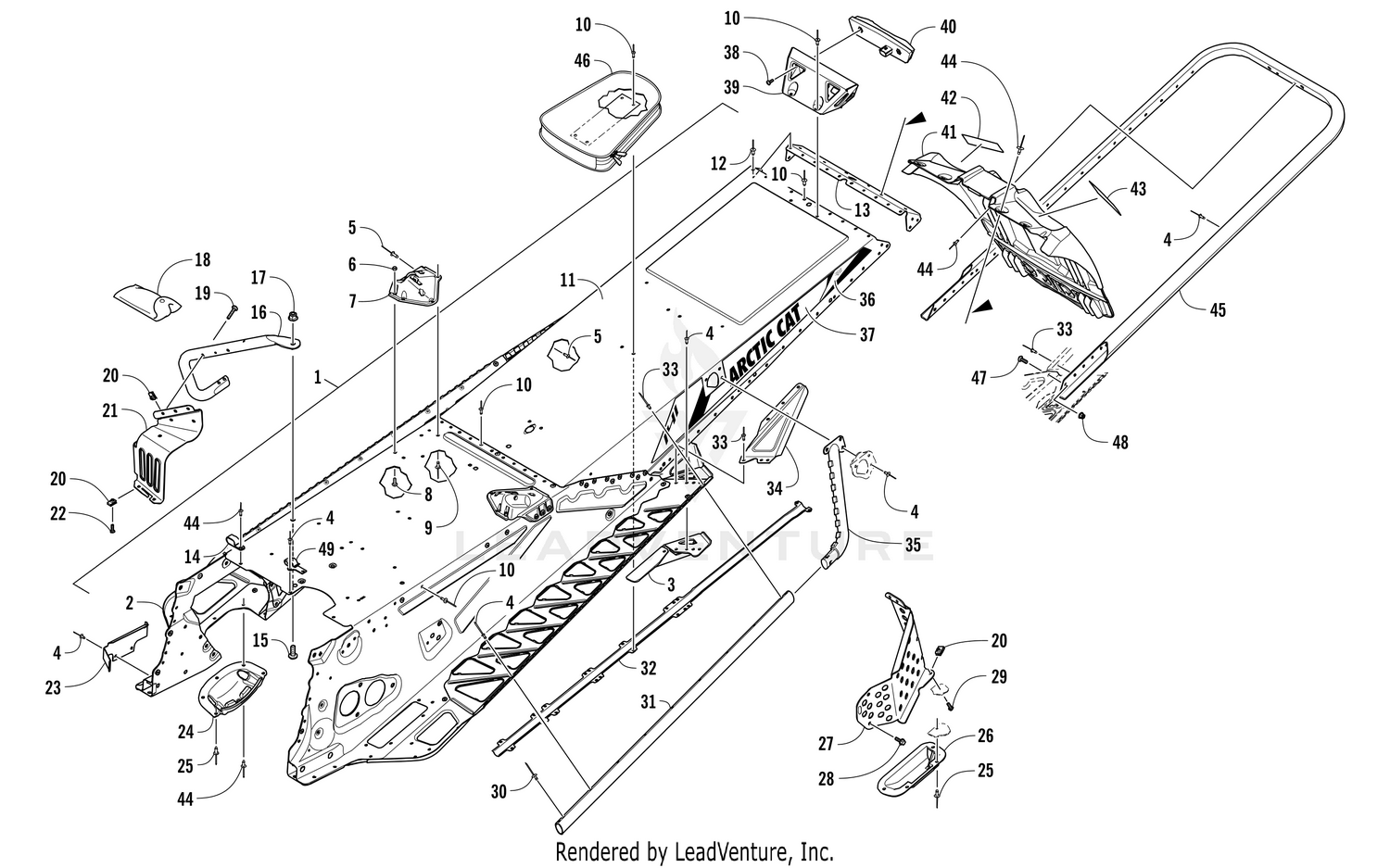

TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY [104301]

Parts (53)

Ref	Part Number	Description
3	2707-286	Bracket, Mounting - Suspension - Right - Black Price: $26.95
3	2707-287	Bracket, Mounting - Suspension - Left - Black Price: $26.95
4	8060-706	Rivet Price: $0.46
5	1623-206	Rivet Price: $2.30
6	8422-502	Nut, Lock Price: $0.48
7	1707-692	Bracket, Mounting - Rear Spar - Right - Black Price: $33.95
7	1707-693	Bracket, Mounting - Rear Spar - Left - Black Price: $41.95
8	8476-512	Screw, Machine Price: $1.45
9	1623-257	Rivet Price: $2.30
10	8060-702	Rivet - Black Price: $0.35
11	2707-717	Tunnel, Rear - Black Price: $229.95
12	8060-504	Rivet Price: $0.35
13	1707-725	End Cap, Tunnel - Black Price: $41.95
14	1623-762	Clamp, Routing Price: $8.43
15	8476-820	Screw, Machine Price: $1.08
16	1707-454	Support, Footrest - Right Price: $71.95
16	1707-455	Support, Footrest - Left Price: $71.95
17	8427-802	Nut, Lock Price: $0.58
18	0744-087	Kit, Tool Price: $90.14
19	8468-535	Screw, Machine Price: $1.07
20	1623-637	Clip, U-Nut Price: $2.61
21	1707-556	Footrest - Right - Black Price: $31.95
21	1707-557	Footrest - Left - Black Price: $31.95
22	8470-516	Screw, Machine Price: $0.35
23	0608-705	Bracket, Routing - Oil Line Price: $14.49
24	1607-109	Protector, Chain Case Price: $5.90
25	8061-708	Rivet Price: $1.08
26	0607-351	Protector, Brake Disc Price: $13.28
27	2707-044	Shield, Brake Disc - Black Price: $48.95
28	8408-613	Screw, Cap Price: $1.66
29	8470-520	Screw, Machine Price: $0.48
30	1623-130	Rivet Price: $1.80
31	1707-697	Roll, Tunnel - Black Price: $60.95
32	0630-316	Protector, Harness - Taillight Extension Price: $33.95
33	1623-241	Rivet Price: $2.05
34	2707-288	Gusset, Running Board - Right - Black Price: $34.95
34	2707-289	Gusset, Running Board - Left - Black Price: $34.95
35	1707-700	Gusset, Tunnel Roll - Right - Black Price: $31.95
35	1707-701	Gusset, Tunnel Roll - Left - Black Price: $31.95
36	0621-990	Decal, Reflector - Red Price: $15.42
37	3621-206	Decal, Tunnel - Right Price: $3.61
37	3621-207	Decal, Tunnel - Left Price: $3.61
38	8470-510	Screw, Machine Price: $0.71
39	0730-227	Bracket, Mounting - Taillight - Black Price: $41.95
40	0609-898	Taillight, LED Price: $70.95
41	6606-394	Snowflap Price: $109.95
42	5611-852	Decal, Warning - Towing (French) Price: $2.54
43	5611-853	Decal, Warning - Towing (English) Price: $2.81
44	8061-706	Rivet Price: $1.07
45	2707-575	Bumper, Rear - Green Price: $131.95
46	6606-615	Bag, Belt Price: $49.95
47	8476-620	Screw, Machine Price: $0.48
48	8427-602	Nut, Hex Price: $0.23
