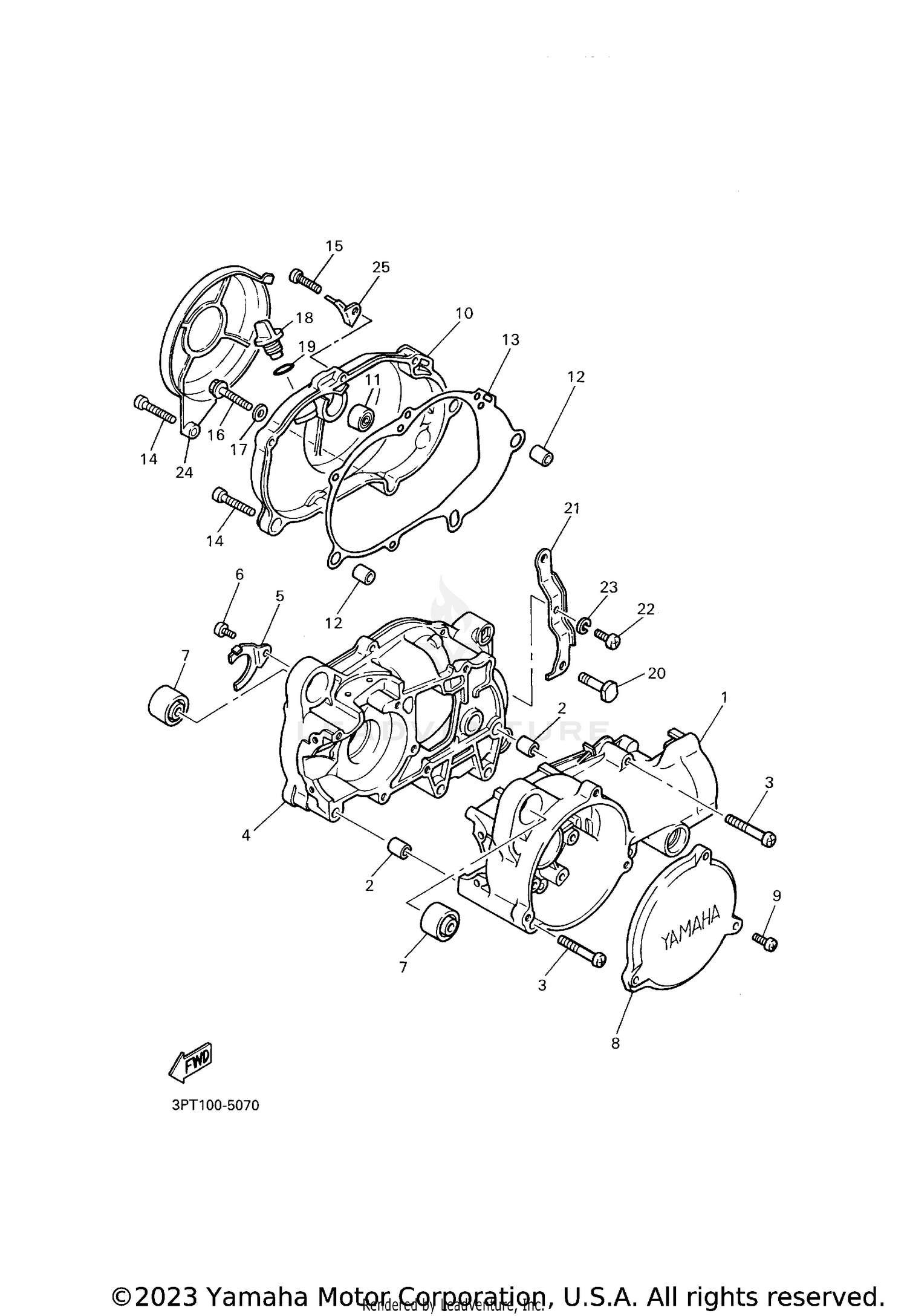

| Ref | Part Number | Description |
|---|
| 1 |
4X4-15111-00-00 |
CRANKCASE 1 Price: $271.99 |
| 2 |
99530-12016-00 |
PIN, DOWEL Price: $4.89 |
| 3 |
98507-06045-00 |
SCREW, PAN HEAD Price: $3.40 |
| 4 |
4J2-15121-01-00 |
CRANKCASE 2 Price: $121.99 |
| 5 |
3L5-15128-00-00 |
HOLDER Price: $4.25 |
| 6 |
98517-06012-00 |
SCREW,PAN This part replaces 98507-06012-00. Price: $4.10 |
| 7 |
2E9-15316-00-00 |
DAMPER 1 Price: $30.99 |
| 8 |
4J2-15415-00-00 |
COVER, GENERATOR Price: $41.99 |
| 9 |
98507-05014-00 |
SCREW, PAN HEAD WITH WASHER Price: $9.49 |
| 11 |
3L5-17112-02-00 |
BUSH 1 This part replaces 3L5-17112-01-00. Price: $17.49 |
| 12 |
99530-12016-00 |
PIN, DOWEL Price: $4.89 |
| 13 |
3L5-15451-12-00 |
GASKET, CRANKCASE COVER 1 Price: $19.99 |
| 14 |
98507-06035-00 |
SCREW, PAN HEAD Price: $9.49 |
| 15 |
98517-06025-00 |
SCREW, PAN HEAD This part replaces 98507-06025-00. Price: $4.05 |
| 16 |
95817-08035-00 |
BOLT, FLANGE This part replaces 95827-08035-00. Price: $10.49 |
| 17 |
90430-08119-00 |
GASKET Price: $7.49 |
| 18 |
4J2-15363-10-00 |
PLUG, OIL Price: $5.49 |
| 19 |
93210-14579-00 |
O-RING This part replaces 93210-14104-00. Price: $7.49 |
| 20 |
90109-08582-00 |
BOLT Price: $10.49 |
| 21 |
4J2-15113-00-00 |
PLATE Price: $5.79 |
| 22 |
98517-06012-00 |
SCREW,PAN This part replaces 98507-06012-00. Price: $4.10 |
| 23 |
92907-06100-00 |
WASHER, SPRING Price: $1.30 |
| 24 |
4X4-15491-00-00 |
PROTECTOR Price: $30.99 |
