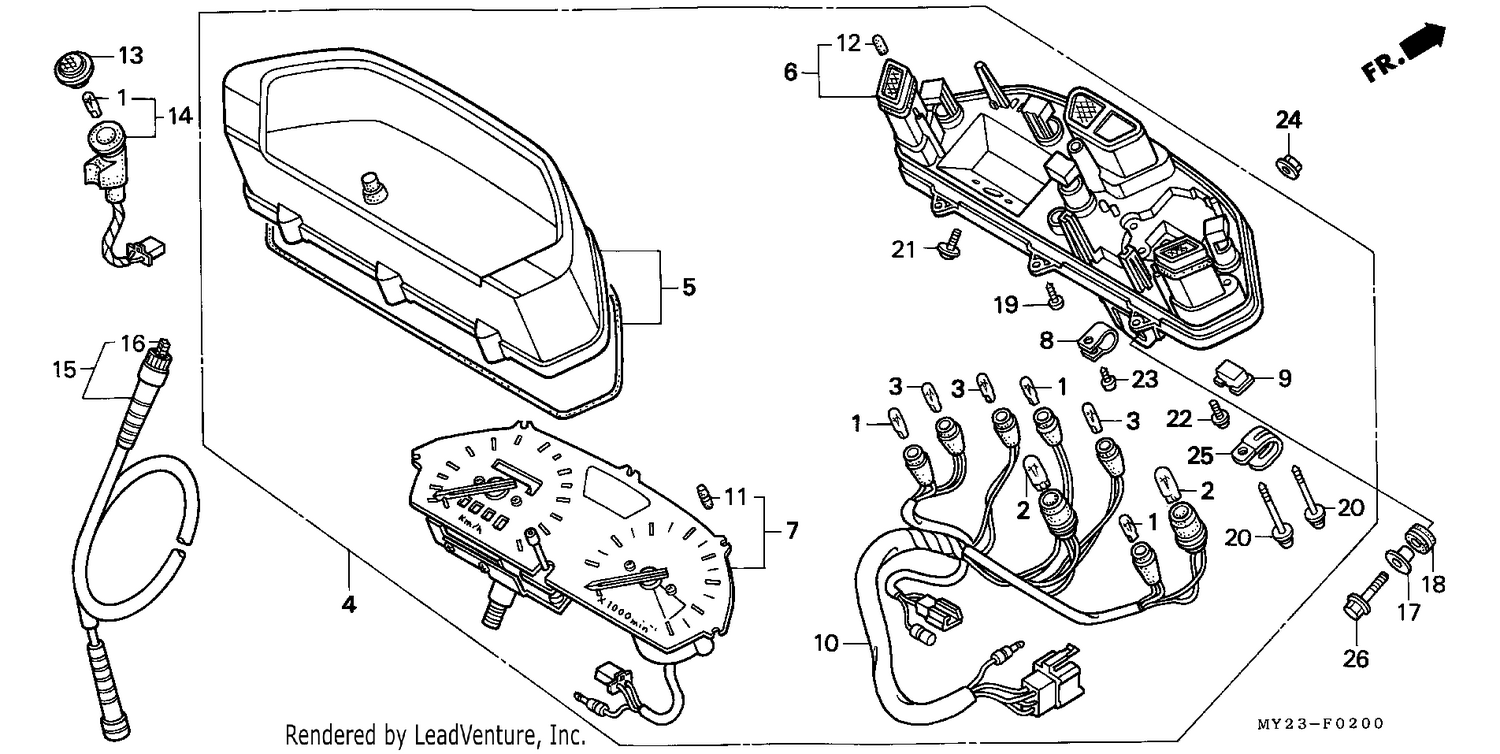

METER

METER

Parts (25)

RefPart NumberDescription
1 34908KM1671 BULB, WEDGE BASE (T6.5) (12V 3W) Price: Call Us
2 34908MB9871 BULB, WEDGE BASE (T10) (12V 1.7W) (STANLEY) Price: Call Us
3 34908MG9951 BULB, WEDGE BASE (12V 1.7W) Price: Call Us
4 37100MY2621 METER ASSY., COMBINATION Price: Call Us
5 37102MN9791 CASE ASSY., UPPER Price: Call Us
6 37103MN9771 CASE ASSY., LOWER Price: Call Us
7 37110MN9791 METER ASSY., SPEED & TACHO (KPH) Price: Call Us
8 37215MB6831 CLAMP Price: Call Us
9 37216GJ8701 GROMMET Price: Call Us
10 37222MN9611 SOCKET COMP. Price: Call Us
11 37304KM7911 RUBBER, CUSHION Price: Call Us
12 37304198901 RUBBER, CUSHION Price: Call Us
13 37561GB7641 LENS COMP., WINKER PILOT Price: Call Us
14 37562MY2620 SOCKET COMP., SIDE STAND PILOT Price: Call Us
15 44830MY2620 CABLE ASSY., SPEEDOMETER Price: Call Us
16 44831MN9000 CABLE, INNER Price: Call Us
17 52159KB7000 COLLAR, CHAIN GUARD Price: Call Us
18 80105MG9000 CUSHION, AIR CLEANER Price: Call Us
19 90032KW3008 SCREW, TAPPING, 4X14 Price: Call Us
20 90032ML7671 SCREW, TAPPING, 4X36 Price: Call Us
21 90101GG2008 SCREW-WASHER, 4X10 Price: Call Us
22 90102KM9008 SCREW-WASHER, 3X8 Price: Call Us
23 9390324380 SCREW, TAPPING, 4X12 Price: Call Us
24 9405006000 NUT, FLANGE, 6MM Price: Call Us
25 9459128000 CLIP, 2X80 Price: Call Us
